6
RETROFIT SLEEVE PREPARATION
IMPORTANT: Inspect wall sleeve thoroughly
prior to installation. Manufacturer does not
assume responsibility for costs or d amages due to
defects in sleeve or for improper installation.
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury
or death.
Disconnect all power to unit to avoid possible electrical shock
during installation.
!
WARNING
Remove any existing foam baffles that are installed
on competitive outdoor grille, if present. See Fi g. 5.
GE Sleeves
Only
GE Metal Wal l Sl eev e -- Remove metal clip on
mounting rail located on left, inside bottom, of metal
sl eeve an d d i scard . See F i g . 6.
GE Plastic S leeve -- Remove bottom seal from
pl ast i c s l eev e. See F i g. 7.
INSTALLATION OF A PREMAIRE WALL
SLEEVE USING A NON--PREMAIRE
GRILLE
This application has become more common due to
pre--manufactured windows with built --in grilles or
renovations where a premaire sleeve is used with an
existing non --
premaire grille.
Use of a premaire wall sleeve with a non --premaire grille
requires installation of an Accessory Baffle Kit (see
Fig. 8), which ensures a good seal between the unit
and exterior grille to prevent air recirculation. Air
recirculation is a large contributor to performance
loss and premature damage to major components.
BAFFLES

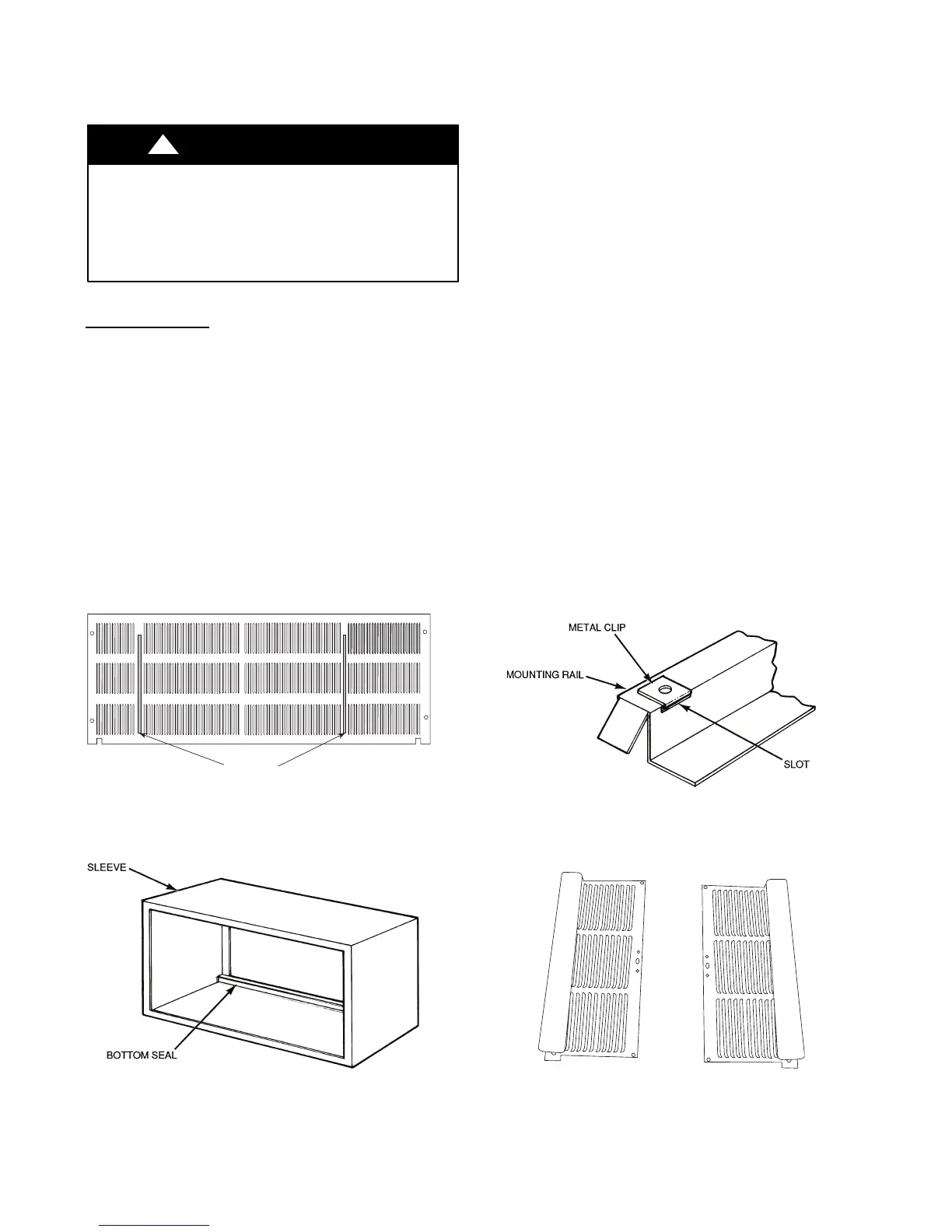

Fig. 5 – Remove Existing Outdoor Grille Baffles on
Competitive Grille
Fig. 6 – Remove Metal Clip on GE Metal Sleeve
Fig. 7 – Remove Bottom Seal Fr om GE Plastic Sleeve
Fig. 8 – Accessory Baffle Kit
