Premier CT-1 - Parts Diagram

Page 6

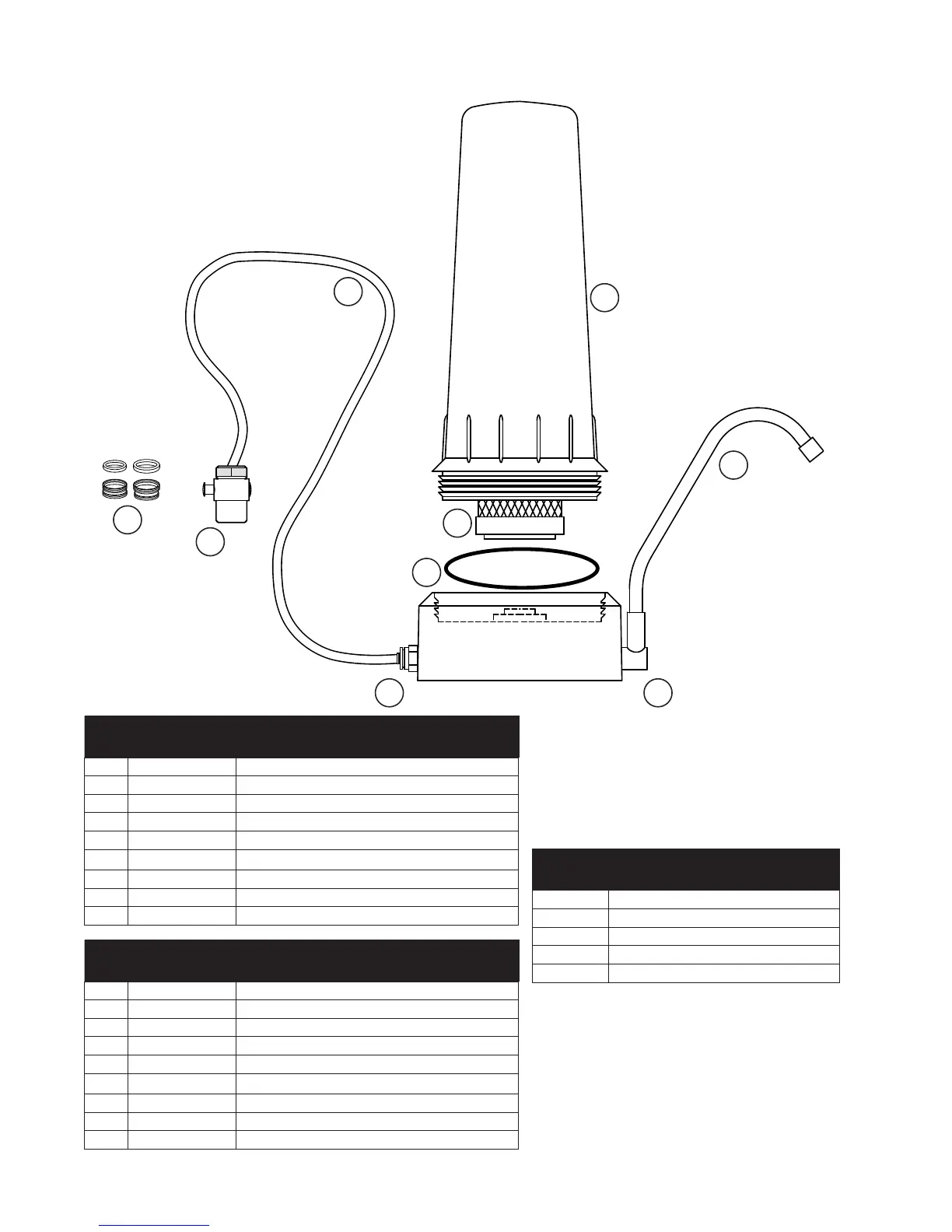

Parts Diagram
ACT-C
ITEM # PART # DESCRIPTION
1 116151 SPOUT - CHROME
2 116179 ELBOW W/ O-RING
3 113107 HOUSING ASSEMBLY
4 113029 HOUSING O-RING
5 125082 FITTING - 1/4” M X 1/4” QC CONNECTOR
6 116152 FAUCET DIVERTER - CHROME
7 116150 DIVERTER ADAPTER KIT 13/16 & 15/16
8 140034 WHITE TUBE
9 101009 5 MICRON CARBON BLOCK
ACT-P
ITEM # PART # DESCRIPTION
1 116251 SPOUT - WHITE
2 125145 FITTING - ELBOW 1/4” M X 3/8” QC TO SPOUT
3 113107 HOUSING ASSEMBLY
4 113029 HOUSING O-RING
5 125082 FITTING - 1/4” M X 1/4” QC CONNECTOR
6 116153 FAUCET DIVERTER - WHITE
7 116150 DIVERTER ADAPTER KIT 13/16 & 15/16
8 140034 WHITE TUBE
9 101009 5 MICRON CARBON BLOCK
ALTERNATE FILTERS
PART # DESCRIPTION
101013 VOC REDUCING CARBON BLOCK
101014 LCVOC REDUCING CARBON BLOCK
101015 LEAD REDUCING CARBON BLOCK
100036 GAC CARBON
101007 1 MICRON CARBON BLOCK
7
6
5 2
1
3
8
9
4
