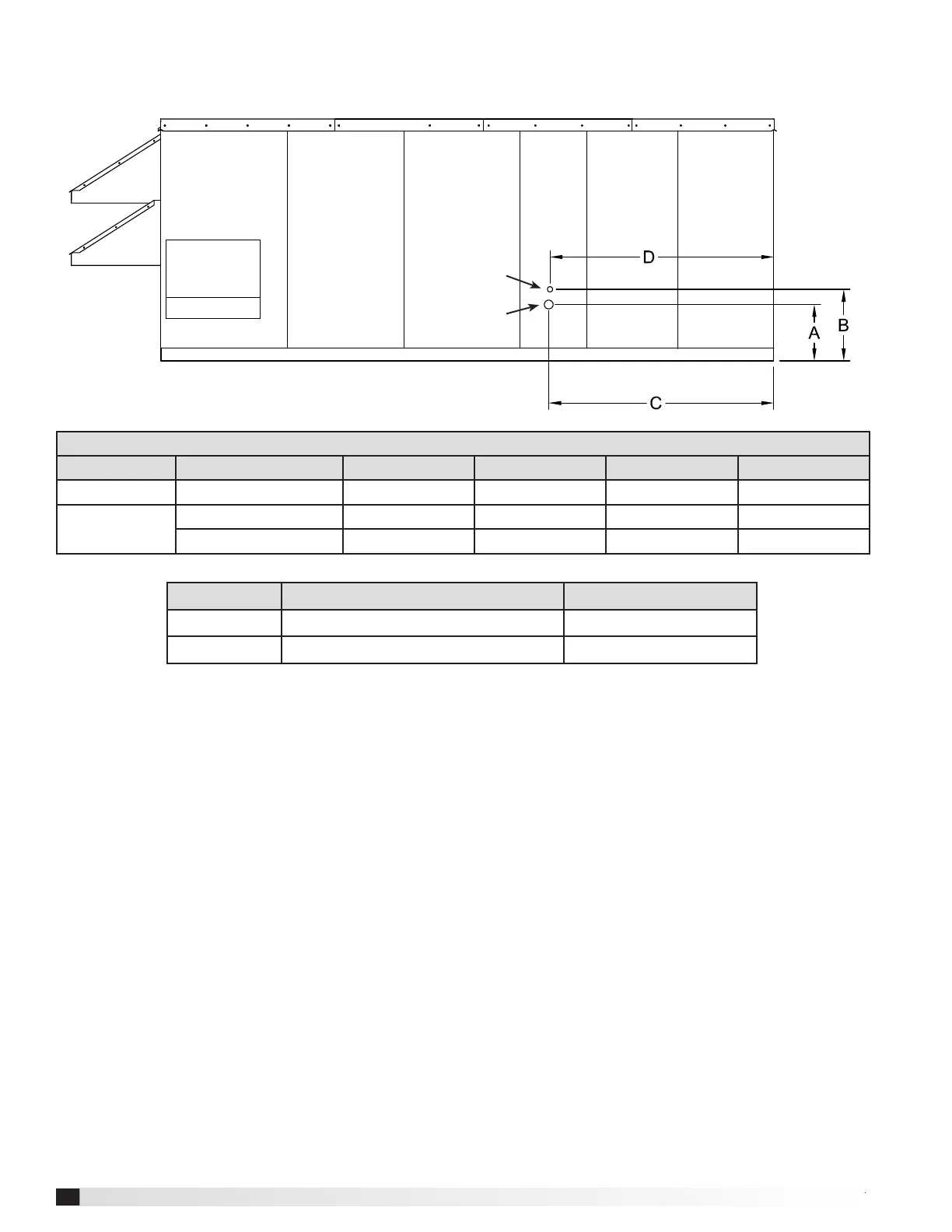

Premisys MP Series - Split DX Piping Connections; Dimensions and Pipe Sizes

16
Packaged and Split Rooftop Ventilator
Dimensions mm (in.)
Housing Size Coil Size A B C D
MPF-1-1
40 x 35 345 (13.57) 438 (17.23) 1377 (54.21) 1369 (53.90)
MPF-2-1
32 x 45 658 (25.91) 627 (24.68) 1636 (60.46) 1472 (57.97)
50 x 45 388 (15.28) 449 (17.66) 1455 (57.27) 1445 (56.88)
Split DX Piping Connections
MPF-1-**-**-96, 144 - MPF-2-**-**-144 MPF-2-**-**-192, 240
Suction Pipe ø28.58 (1
1
⁄8) ø34.93 (1
3
⁄8)
Liquid Pipe ø12.7(
1
⁄2) ø15.88 (
5
⁄8)
Measurement in mm (in.)
Liquid Line
Suction Line
