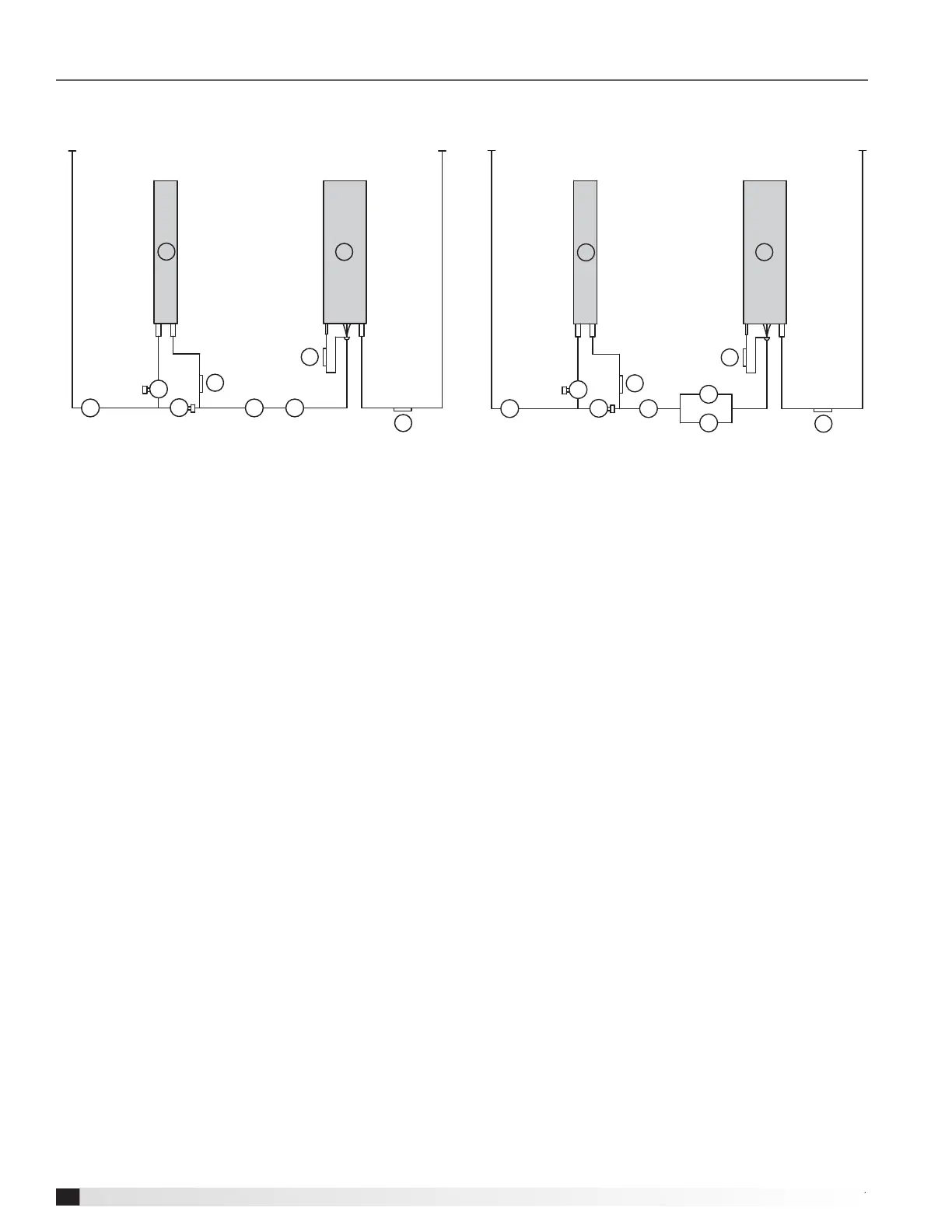

Premisys MP Series - Split DX Refrigeration System Components; MPF-1, MPF-2 Components

20
Packaged and Split Rooftop Ventilator
Factory- Installed Refrigeration System Components Cont.
Split DX
1
4a
3
5
2
10
GAS PIPE
7
6
8
9
LIQUID PIPE
1
4a
3
5
2
10
GAS PIPE
7
6
8
9
LIQUID PIPE
4b
MPF-2-**-**-192, 240-1
1. Evaporative Coil
2. Gas Pipe Thermistor
3. Liquid Pipe Thermistor
4a. Linear Expansion Valve
4b. Linear Expansion Valve
5. Strainer
6. Solenoid Valve
7. Solenoid Valve
8. Reheat Coil
9. Strainer
10. Reheat Pipe Thermistor
MPF-1-**-**-96, 144 MPF-2-**-**-144-1
© 2017 Mitsubishi Electric US, Inc.
PremiSys
