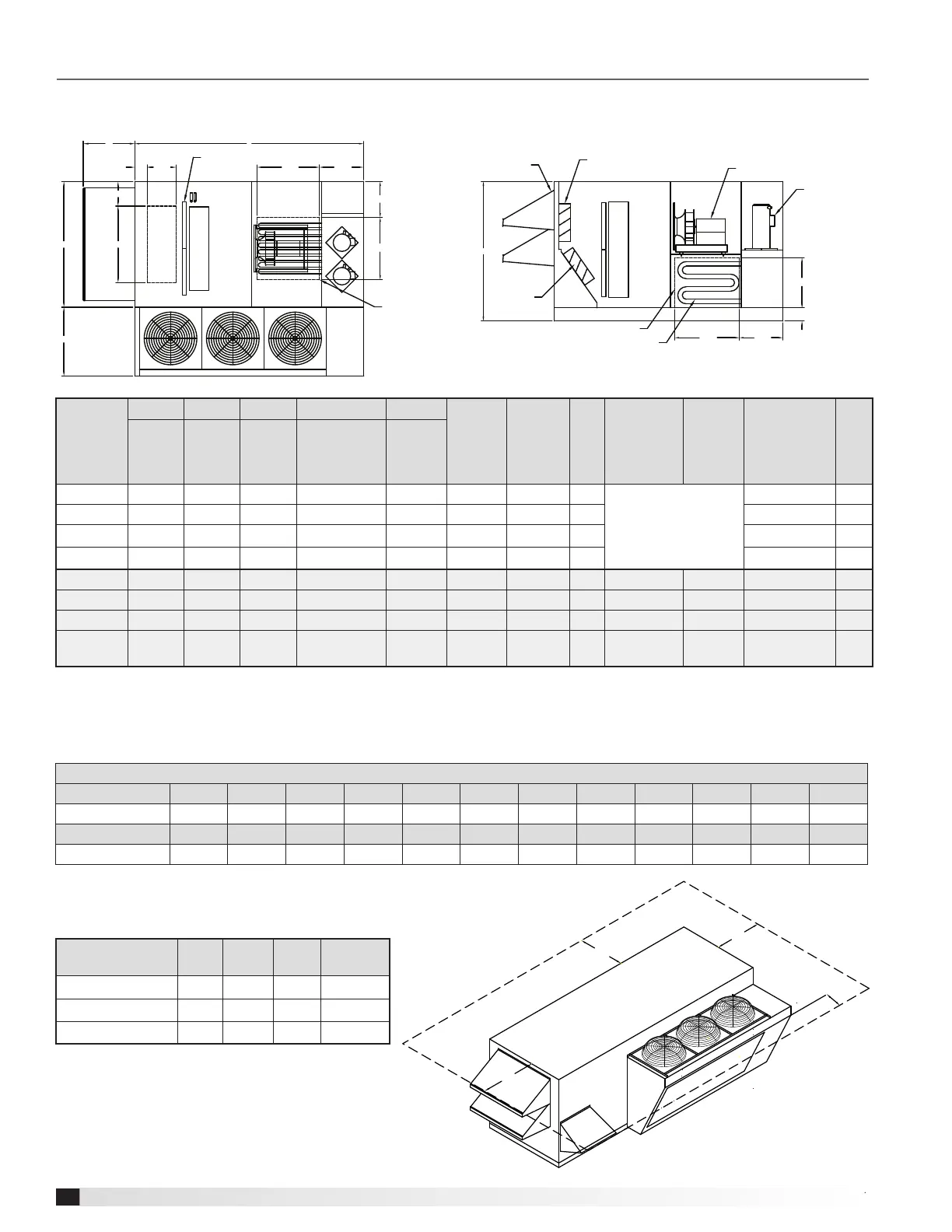

Premisys MP Series - Installation - Packaged DX; Typical Unit Weights and Dimensions; Inlet;Discharge Locations; Service Clearances

6
Packaged and Split Rooftop Ventilator
Installation - Packaged DX
Service Clearances
Unit
Size
A L W J* H
Unit
Weight
Outdoor
Air WH
Qty
Pre-Wheel
Supply/
Exhaust
Filters*
Qty
Supply Final
Filters
(Pre-coil)**
Qty
Outdoor
Air
WH
Length Width
Condensing
Section
Height
MP-1-1 22.1 98.6 52.5 30.1 59.3 2700 20x20x2 4
NA
20x20x2 4
MP-2-1 27.1 109 68.2 30.1 72.5 4500 25x25x2 4 16x25x2 8
MP-4-0 22 156 68 30 90 6400 20x25x2 6 16x20x2 12
MP-4-0
^
22 156 68 30 90 6400 20x25x2 6 16x20x2 12
MPE-1-1 22.1 149.5 52.5 30.1 59.3 3400 20x20x2 4 20x25x2
†
2
†
20x20x2 4
MPE-2-1 27.1 163.2 68.2 30.1 72.5 5100 25x25x2 4 16x25x2
‡
4
‡
16x25x2 8
MPE-4-0 22 224 68 30 90 8300 20x25x2 6 16x20x2
#
7
#
16x20x2 12
MPE-4-0
^
27 224 68 30 90 8300 25x25x2 6
20x20x2/
20x24x2
8 16x20x2 12
All dimensions are shown in inches. Weight shown in pounds. *Size and quantity is per airstream. **Dimension based upon
MERV 8 or 13 lters (MERV 14 lters are 4 in. thick).
†
Based upon a 30 / 36 in. energy wheel (16x25x2, quantity of 3 for 41 in.
energy wheel).
‡
Based upon a 52 in. energy wheel (16x16x2, quantity of 8 for 58 in. energy wheel).
#
Based upon a 52 / 58 in.
energy wheel (16x20x2, quantity of 8 for 74 in. energy wheel).
^
Above 12,000 cfm. WH = weatherhood (aluminum mesh). Model
MPE includes energy wheel (not shown).
Unit Size ACS
CC
End
OA
End
CS from
Unit
MP-1-1/MPE-1-1 40 42 42 18
MP-2-1/MPE-2-1 36 58 42 18
MP-4-0/MPE-4-0 36 52 58 18
All dimensions are shown in inches.
ACS = Access
CC = Control Center
OA = Outdoor Air Weatherhood
CS = condensing section
Typical Unit Weights and Dimensions
OA End
ACS
CS
CC End
CLEARANCE
CLEARANCE
Inlet/Discharge Locations
Unit Size RA1 RA2 RA3 RA4 SB1 SB2 SB3 SB4 SS1 SS2 SS3 SS4
MP-1-1, MPE-1-1 41 5.8 5.6, 56.6 11.5 28 14 22 24 21 6.5 22 25
MP-2-1, MPE-2-1 56 6.1 5.9, 60.2 16 53 7.6 23.2 27 21 6.5 22.2 29
MP-4-0, MPE-4-0 48.8 9.6 9, 77 21.8 42 13 37.7 36 32 6.4 45.2 32
L
OUTDOOR AIR
WEATHERHOOD
SUPPLY AIR
DISCHARGE BOTTOM
RECIRC
DAMPER
OUTDOOR AIR
DAMPER
SUPPLY BLOWER
COMPRESSORS
A
CONTROL
CENTER
IG HEATER
H
SUPPLY FILTERS
W
J
SB1
SB2
SB4 SB3RA3
RA4
RA2
RA1
SS1
SS2
SS3SS4
RETURN AIR INLET
DX COIL
SUPPLY AIR
DISCHARGE SIDE
