Prepac DBR-0560-1 - Step 4 c: Attaching Stabilizers to Right Side; Securing Right Side Stabilizers

Page 8 of 16

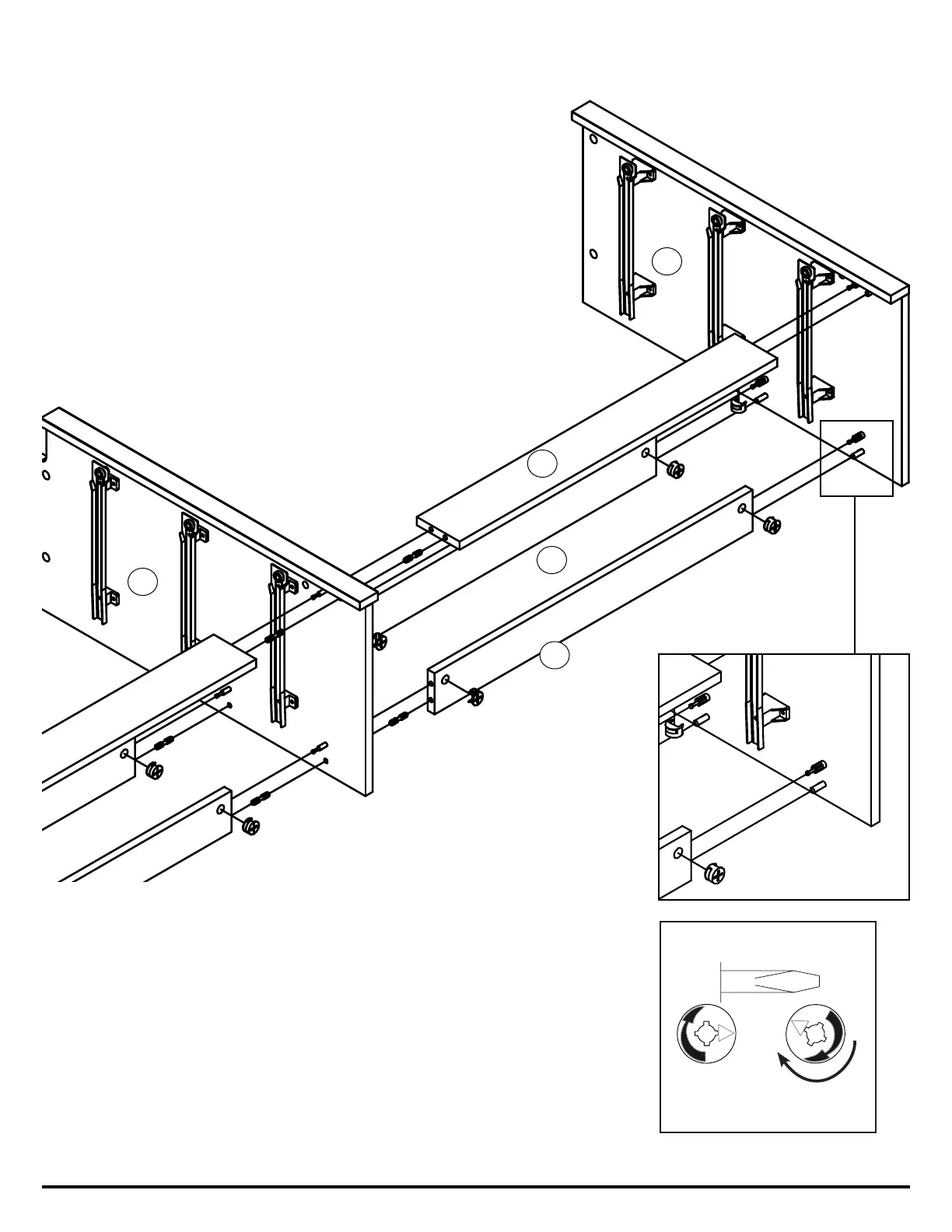

Attach remaining front stabilizer (C8), and 2 rear stabilizers (C7) to
the right (C4) side and lock cams using a flat head screwdriver
Attachez le renforcement avant (C8) et 2 renforcement arrière (C7)
qui reste aux côtés droite (C4) et serrez les ferrures utilisant un
tournevis principal plat
4c
Tightening Cams
Serrez les ferrures
Unlocked
deverrouillé
Locked Turn 210º
verrouillé
tourner 210º
C4
C3
C7
C7
C8
