Prepac Queen - Drawer Assembly: Box Formation; Assemble Drawer Sides and Front

Page 16 of 20
1½” Hi Lo Screws
P r s
f a oCa
bin
et a
t
Ide
nti
ic
ti n
11c

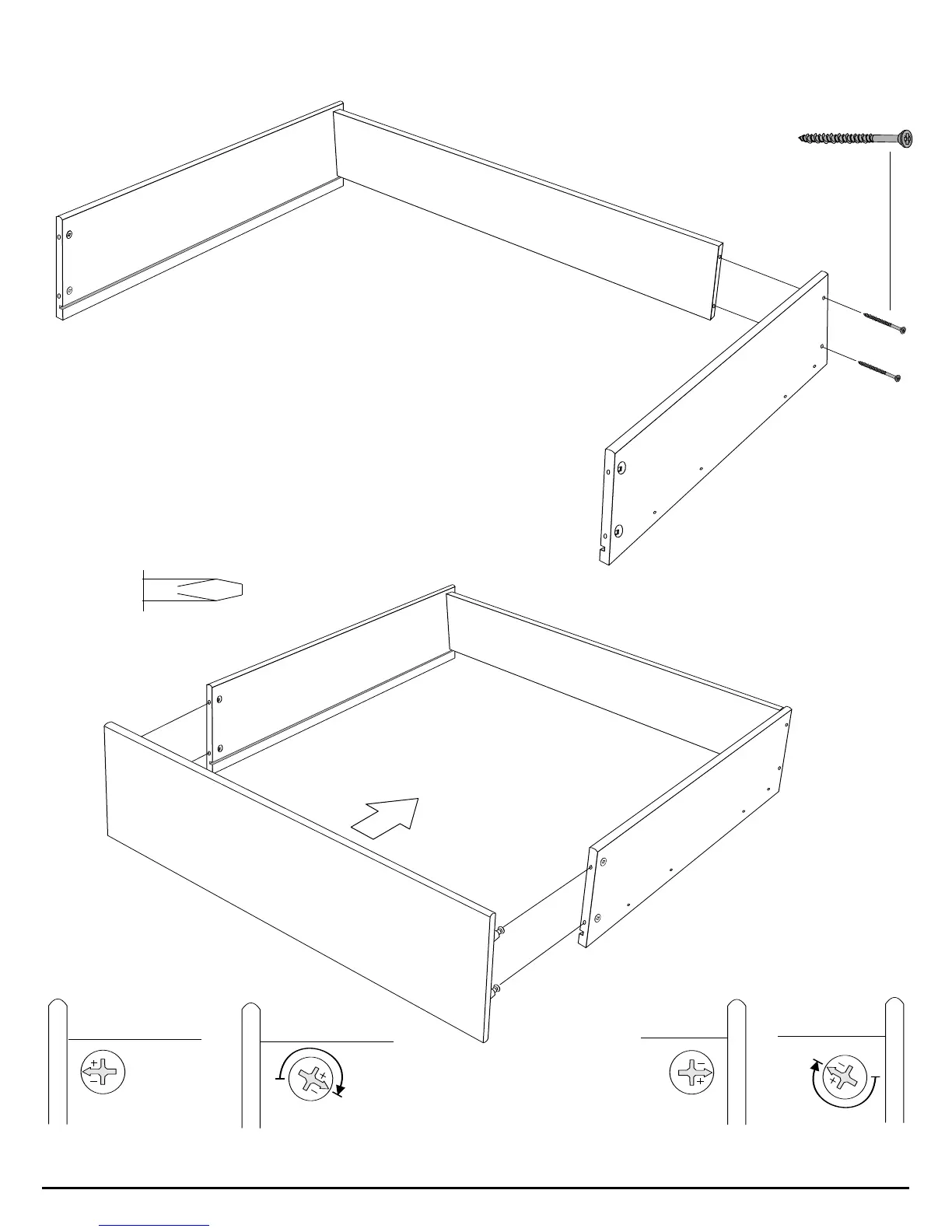

Attach drawer sides to drawer back with 1½” Hi Lo screws
11d
Attach drawer front and tighten cams
using a flat head screwdriver
Right Drawer Side
Locked
Turn 210°
Unlocked
Left Drawer Side
Unlocked
Locked
Turn 210°
