2.4 Rigging Instructions
CDL12P loudspeakers feature integrated rigging pins. The integrated rigging pins
function the same whether you are attaching CDL12P or the CDL12P Rigging Grid.

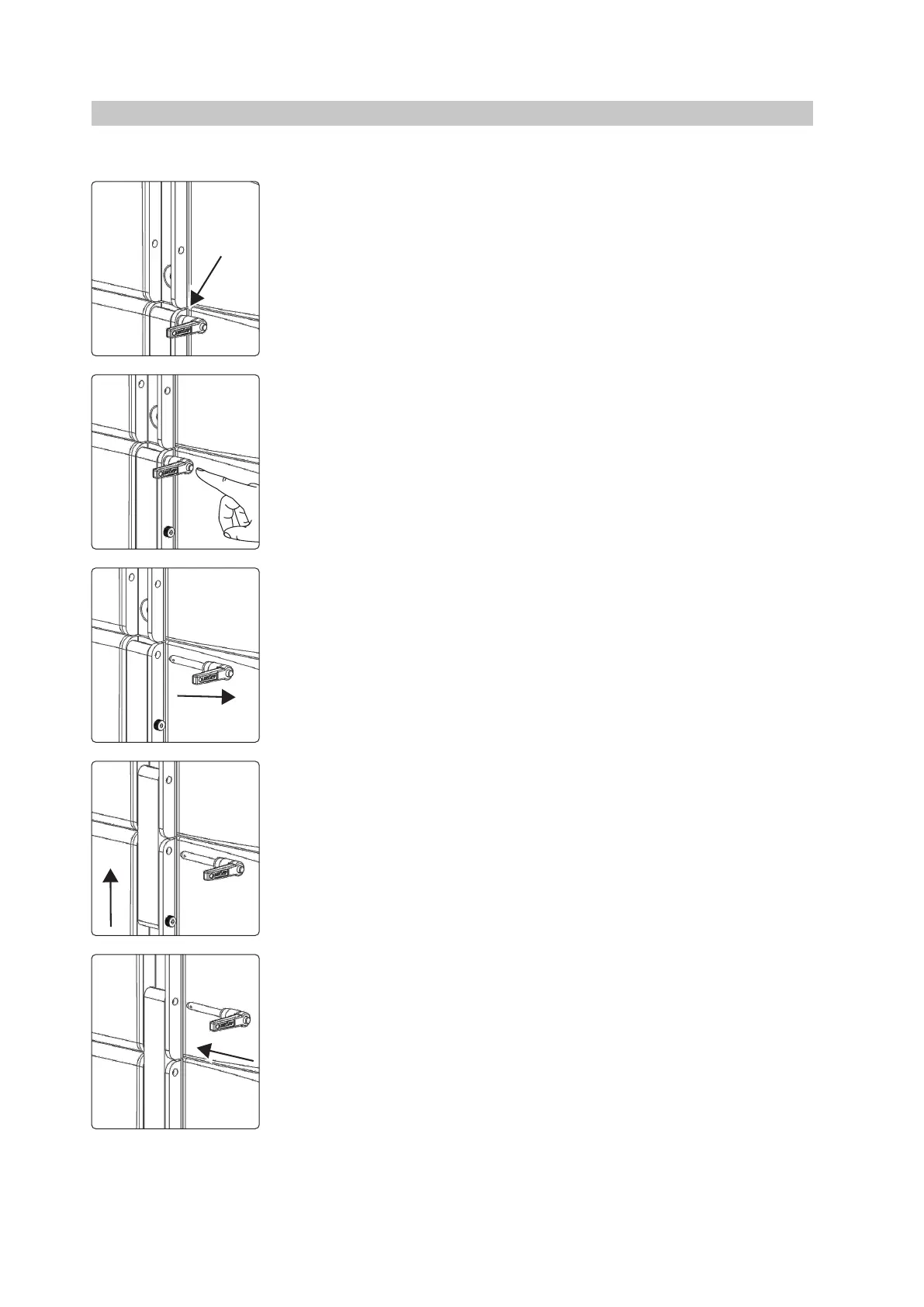

1. Rotate the pin to the forward 90˚.
2. Press the release button to unlock the pin.
3. Pull out the pin.
4. Slide the rigging clasp up to attach to the speaker above.
5. Insert the pin into the upper hole of the rigging clasp until it locks, and
rotate it up to lock the handle in place.
