2.5 CDL Rigging Extension Bar Installation Instructions
CDL12P
Owner’s Manual
6
2.5 CDL Rigging Extension Bar Installation Instructions
The CDL Rigging Extension Bar is an optional accessory for the CDL12P Rigging Grid
that provides upward or downward tilt control for any suspended installation that
requires it.

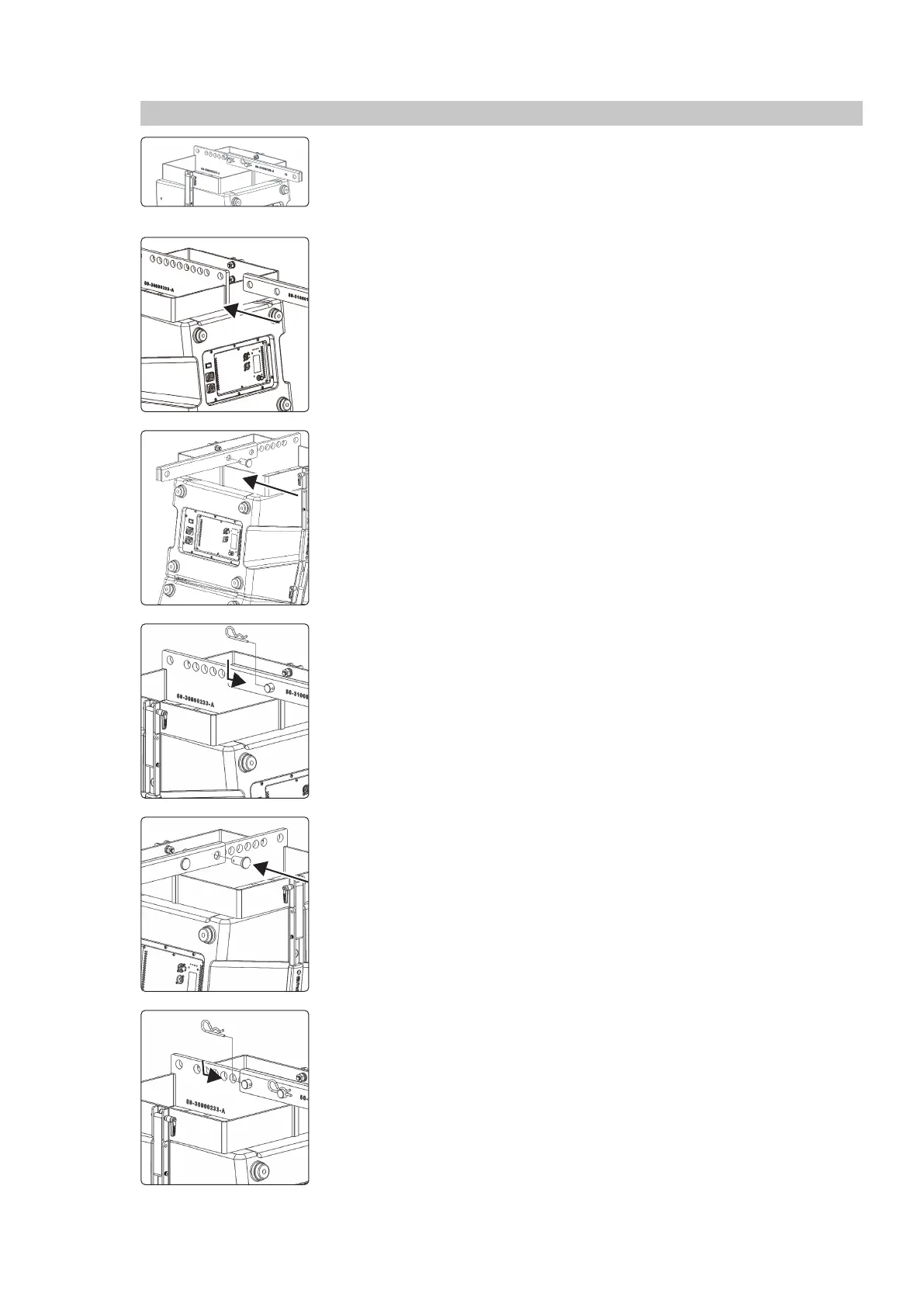

1. Align the CDL Rigging Extension Bar with the center support of the
CDL12P Rigging Grid. For downward tilt, the bar should be mounted at the
rear of the loudspeaker array. For upward tilt, the bar should be mounted at
the front of the array. The illustrations in this section show the downward tilt
conguration only.
2. Insert the rst clevis pin into the outermost through-hole.
3. Lock the clevis pin in place using a cotter pin.
4. Insert the second clevis pin into the inner through-hole.
5. Insert a cotter pin into second clevis pin to lock it into place.
