2 Application and Deployment
2.6 Suspending the CDL Array
CDL12P
Owner’s Manual
7

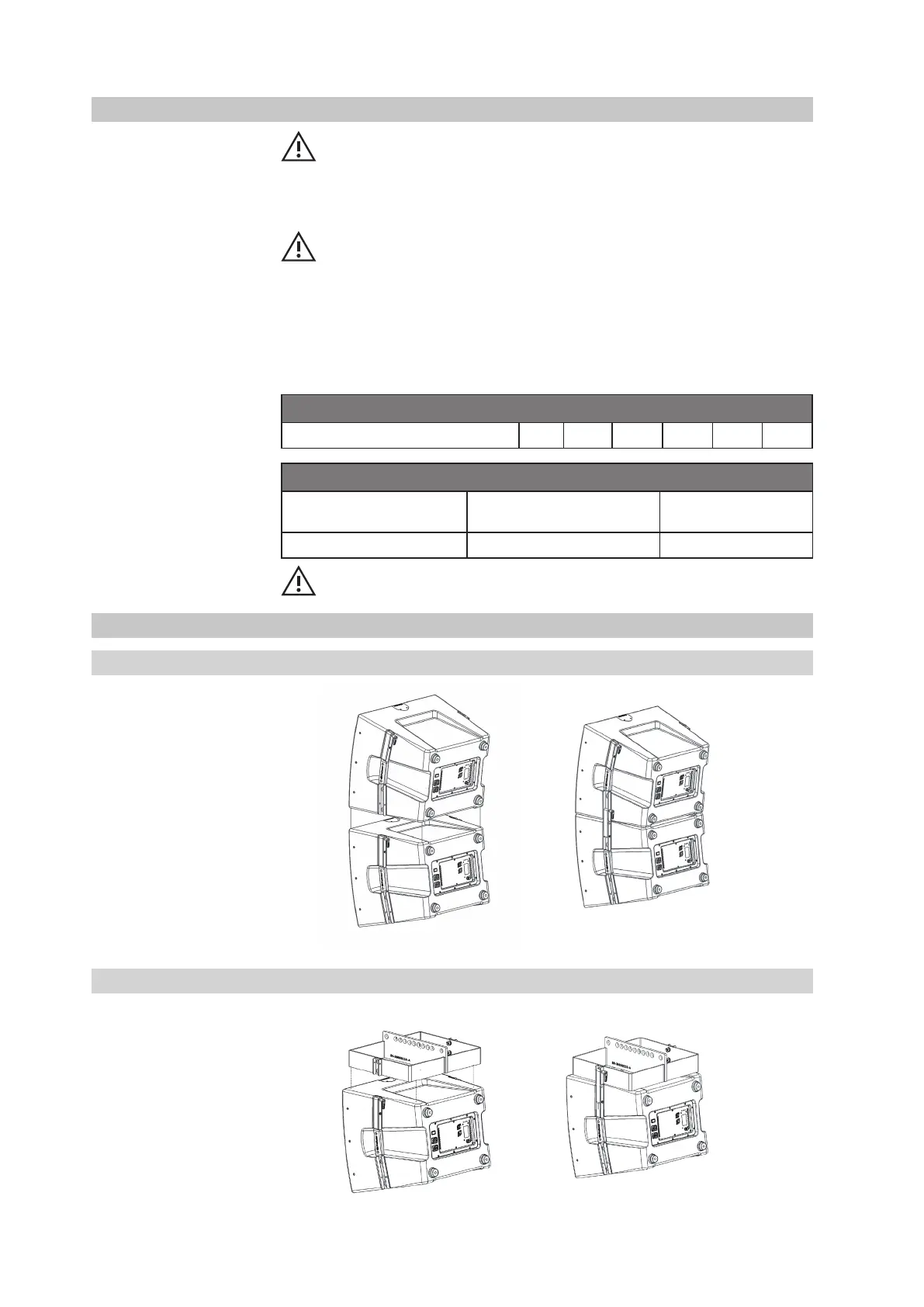

2.6 Suspending the CDL Array
WARNING: Consult a professional mechanical or structural engineer, licensed
in the jurisdiction of the sound system installation, to review, verify, and
approve all attachments to the building or structure. Employ the services of a certified,
professional rigger for hoisting, positioning, and rigging the equipment to the
supporting structure. Improper suspension can lead to serious damage, injury, or death.
WARNING: Review all safety instructions in Section 2.3.
The table below shows the maximum suspended loudspeaker load congurations.
Deploying loudspeakers that exceed the supported congurations below can
lead to serious damage, injury, or death. PreSonus has tested the congurations
below for safety. Please note that the structure from which you are suspending
any CDL12P loudspeaker array must be able to support that total weight.
DO NOT SUSPEND LOUDSPEAKERS DIRECTLY ABOVE THE AUDIENCE
Supported Suspended Loudspeaker Configurations
Maximum Number of CDL12P Loudspeakers 0 2 3 4 5 6
Individual Component Weight
CDL12P CDL12P Rigging Grid
CDL Rigging Grid
Extension Bar
63 lbs (28.6 kg) 24 lbs (10.9 kg) 5.8 lbs (2.6 kg)
WARNING: All PreSonus CDL12P rigging and rigging accessories are rated
for a 10:1 load. Structural suspension supports must also be rated for a 10:1 load.
2.7 Supported Congurations
2.7.1 Rigging a CDL12P to Another CDL12P
2.7.2 Rigging a CDL12P to a CDL12P Rigging Grid
