For reference when operating the Model 9116 calibration manifold, Figures 4.1 through
4.4 show simplified pneumatic diagrams of the calibration manifold in its various
positions.
Note
Periodic zero and span calibration should be the only calibration
required to maintain specified performance throughout the life of the
scanner.

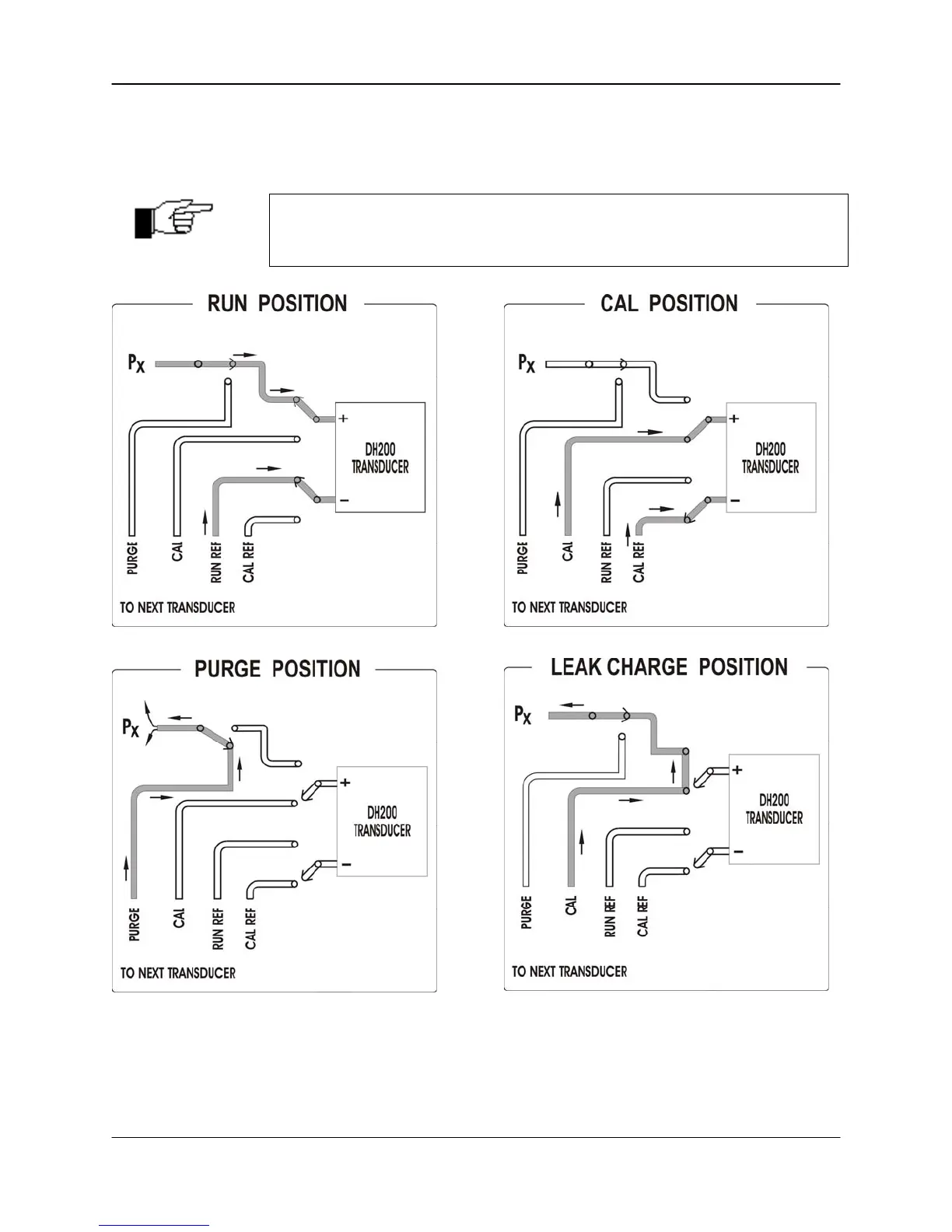

Figures 4.1 – 4.4
Pneumatic Diagrams of the Calibration Manifold
