2.3.2 Power
The Model 9116 Intelligent Pressure Scanner needs only a single unregulated power supply.
See the Model 9116 Data Sheet for actual power requirements.
Model 9116 has a single round, ruggedized connector through which all power and input/output
signals pass as shown in Figure 2.1.

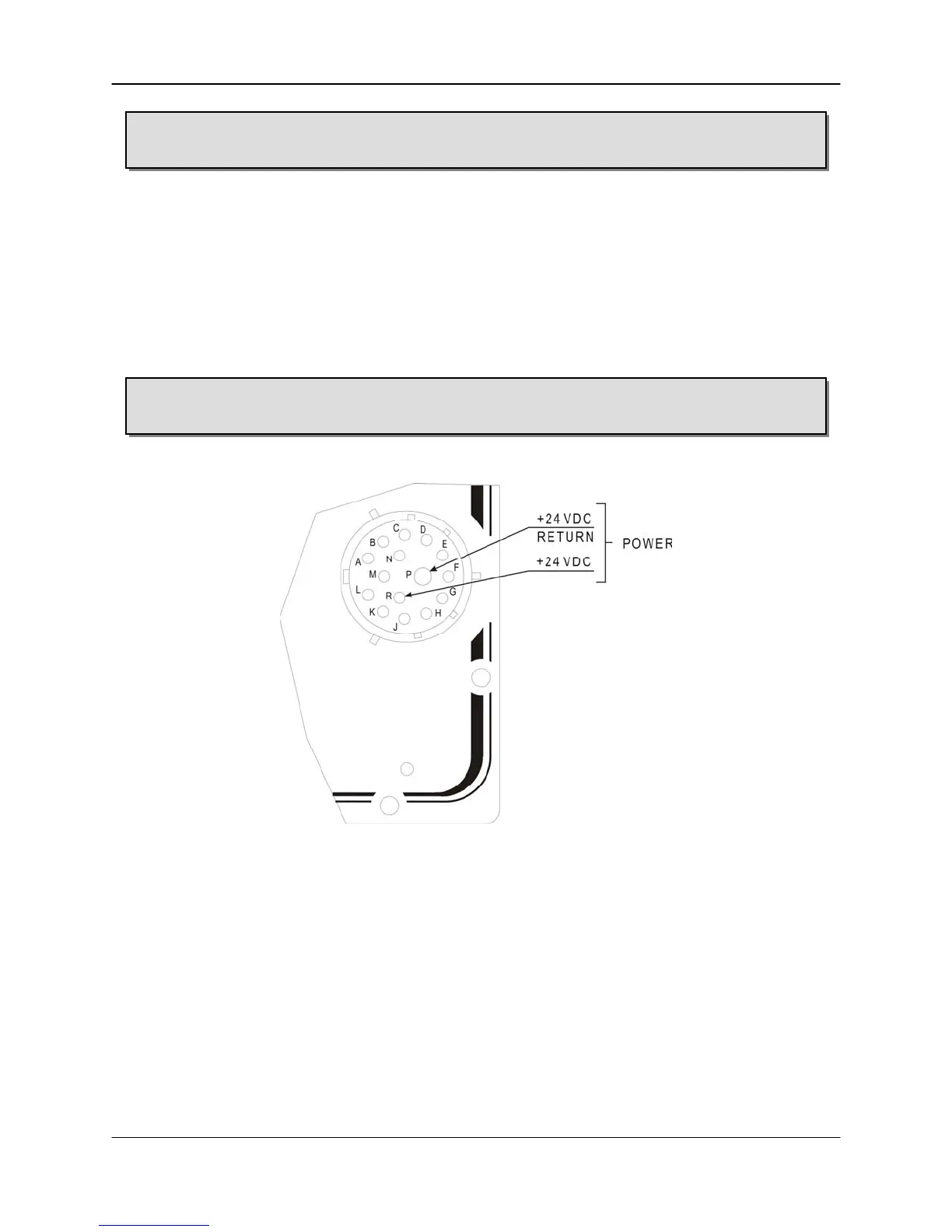

Figure 2.1
9116 Power Pin Assignments
WARNING: Exceeding the specified storage or operating temperatures may result
in permanent damage to the Model 9116 electronics.
WARNING: Improper connection of power to the Intelligent Pressure Scanner can
result in permanent damage to module electronics.
