Preheating System Timers
(auxiliary) (optional)
The timer, located on L.H. lateral console (see
page 2-4), is used to program the starting and
stopping time of the preheating system. One of
two optional Timers may be installed in your
vehicle, Espar (40 000 BTU) or Webasto (80
000 BTU). The system indicator light, located
on dashboard (see item #23 on page 2-10)
illuminates when system is functional. The
following offers system descriptions for both
Timers.
Caution: The preheating system should not
operate for more than one hour before starting
engine as this could discharge batteries.
Warning: Preheating system must not operate
when vehicle is parked inside or during fuel fill
stops.
Note: Preheating system uses the same fuel
as the engine.
In case of failure:
1. Shut off and turn on again.
2. Check main circuit breaker and overheating
switch (Espar) or overheat fuse (Webasto).
3. Have system repaired in a specialized shop.

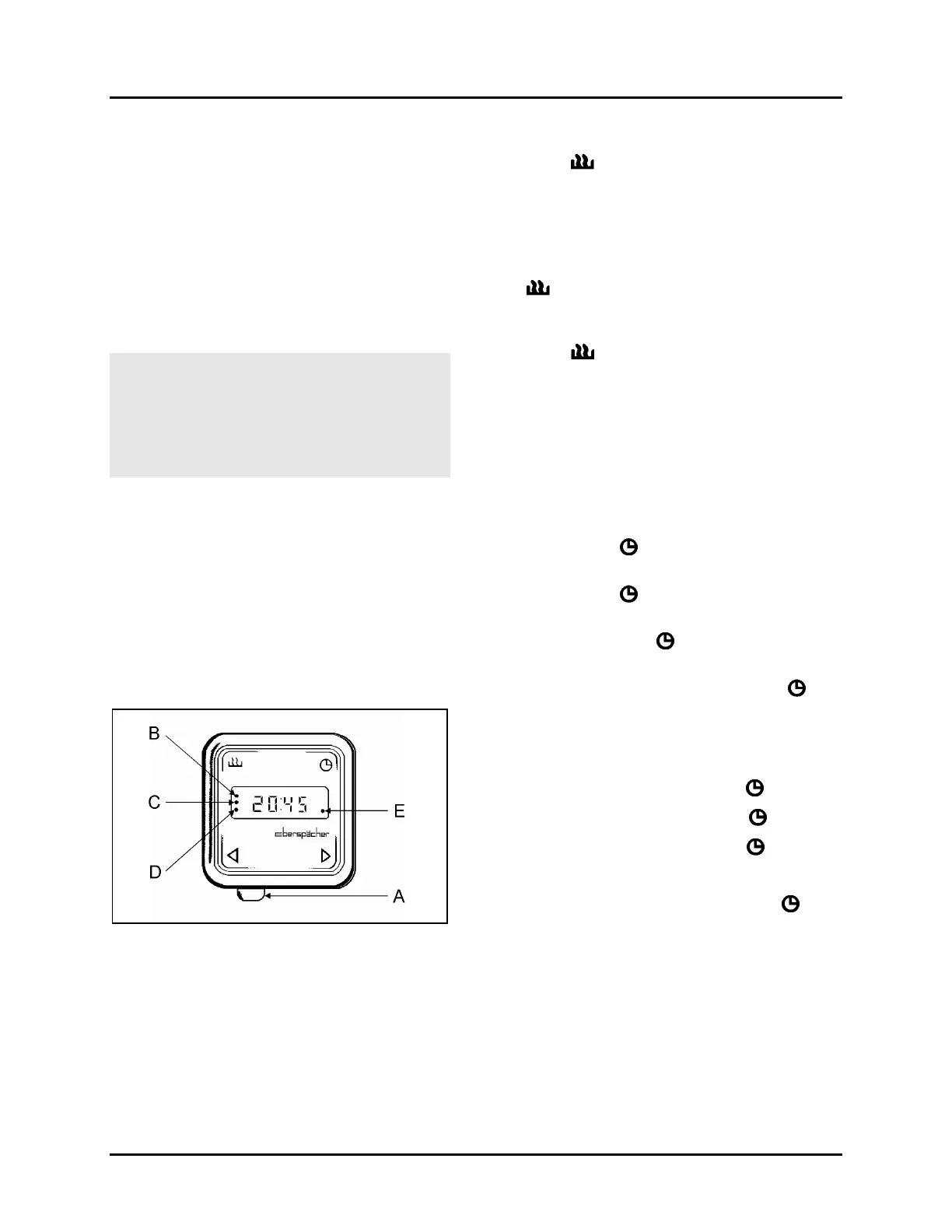

Espar (40 000 Btu)
18045
Time Display
Pull lever A forward*.
Time Setting
Pull lever A forward and press on < or on >.
Heating Startup (Possible Regardless of
Preselection)
Press on
1.
Display of heating time in minutes, operation
indicator light E is flashing.
Heating Startup, Continuous Operation
Pull lever A forward and press simultaneously
on
.
Heating Shutoff
Press on
2. Fan has automatic delay to allow
cooling.
Preselection of Heating Startup Time
Memorization of three startup times.
Display of Memorized Times
Note: Heating will turn on automatically at
preselected time.
Press once on
3: Heating is set for the 1
st
startup time**, indicator light B is on.
Press twice on
4: Heating is set for the 2
nd
startup time**, indicator light C is on.
Press three times on
5: Heating is set for the
3
rd
startup time**, indicator light D is on.
Neutral position: Press four times on
: No
display or display of time*. No preselected
startup time.
Setting of Startup Times**:
1
st
memory: Press momentarily on , B is on.
2
nd
memory: Press momentarily on 6, C is on.
3
rd
memory: Press momentarily on 7, D is on.
Setting of time by pressing on < or on >
Neutral position: Press once again on
8: No
display or display of time*, the preset times are
still in memory.
* Eventually permanent display of time with the
vehicle ignition switch on.
** Display of heating startup time turns out after
approximately 20 seconds, or time delay*.
