OTHER FEATURES 5-35
PA1633 X3-45 Commuter Operator’s Manual
To manually deploy the platform
Allow enough space for lift operation and
passenger boarding. If a break down situation
exists and the vehicle cannot be moved so that
the lift system can be operated safely, the
operator must summon emergency assistance
to move the vehicle before operating the lift.
1. Fully open wheelchair access and lift doors.
Ensure that there are no obstacles in the
path of the lift.

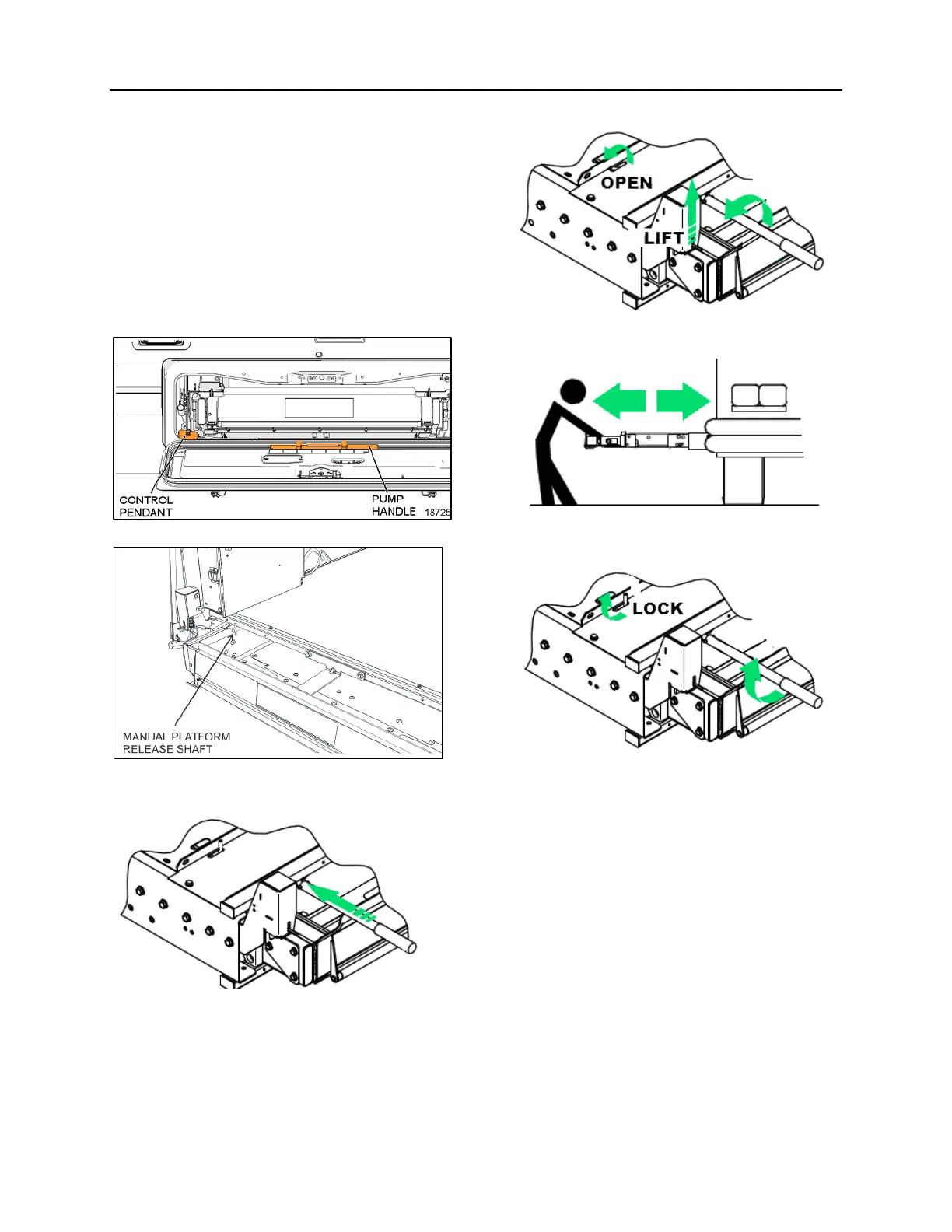

WHEELCHAIR LIFT MANUAL OPERATION
MANUAL PLATFORM RELEASE SHAFT
23334
2. Remove the pump handle from inside the lift
mechanism access door.
3. Turn the manual platform release shafts
using pump handle extension to disengage
the platform and then lift the stowlock
mechanical catch.
4. Grasp the platform and pull firmly until the lift
is all the way out against the carriage stops.
5. Turn the manual platform release shafts
using pump handle extension back to
previous position to lock the platform.
6. Lift right handrail to vertical and push firmly
down into its socket. Repeat for left
Handrail.
To manually raise the platform
1. Remove the pump handle from inside the lift
mechanism access door.
2. Close the pump release valve by pushing
the actuating rod DOWN (pumping the
handle raises the platform when the release
valve is closed).
To Next Page
