V. YOUR SCOOTER
TILLER CONSOLE
The tiller console houses all of the controls needed to drive your scooter, including the speed adjustment dial, throttle
control lever, battery condition meter, lights switch, hazard lights switch, status LED, and horn buttons. See figure 5.
WARNING! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your scooter until the tiller
console has dried thoroughly.
Hazard Lights Switch
This switch activates the flashers on your scooter.
n Toggle the switch forward to turn on the flashers.
n Toggle the switch rearward to turn off the flashers.
Horn Button
Your scooter must be powered up for the horn to be operational.
n This button activates a warning horn.
n Do not hesitate to use the warning horn when doing so may prevent accident or injury.
Key Switch
n Insert the key into the key switch and turn it clockwise to power up (turn on) your scooter.
n Turn the key counterclockwise to power down (turn off) your scooter.
WARNING! If the key is moved to the off position while your scooter is in motion, the
electronic brakes will engage and your scooter will come to an abrupt stop!
Battery Condition Meter
When the key is fully inserted and turned clockwise to power up your scooter, this meter indicates the approximate
battery voltage strength. For further information on battery charging, see VI. Batteries and Charging.

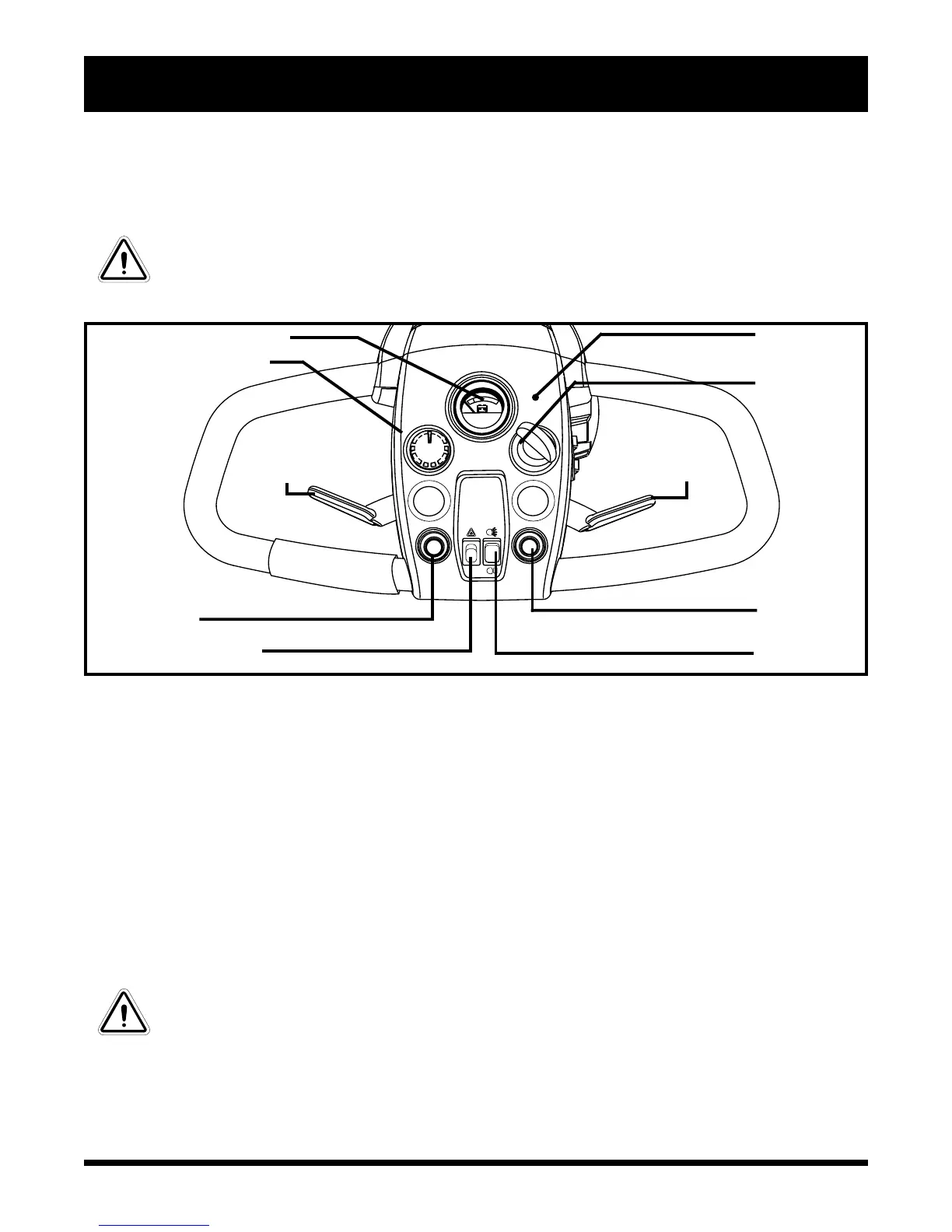

Figure 5. Tiller Console
HORN BUTTON
SPEED ADJUSTMENT DIAL
THROTTLE
CONTROL
LEVER
HORN BUTTON
BATTERY CONDITION METER
STATUS LED
LIGHTS SWITCH
KEY SWITCH
THROTTLE
CONTROL
LEVER
HAZARD LIGHTS SWITCH
