35
Celebrity X www.pridemobility.com

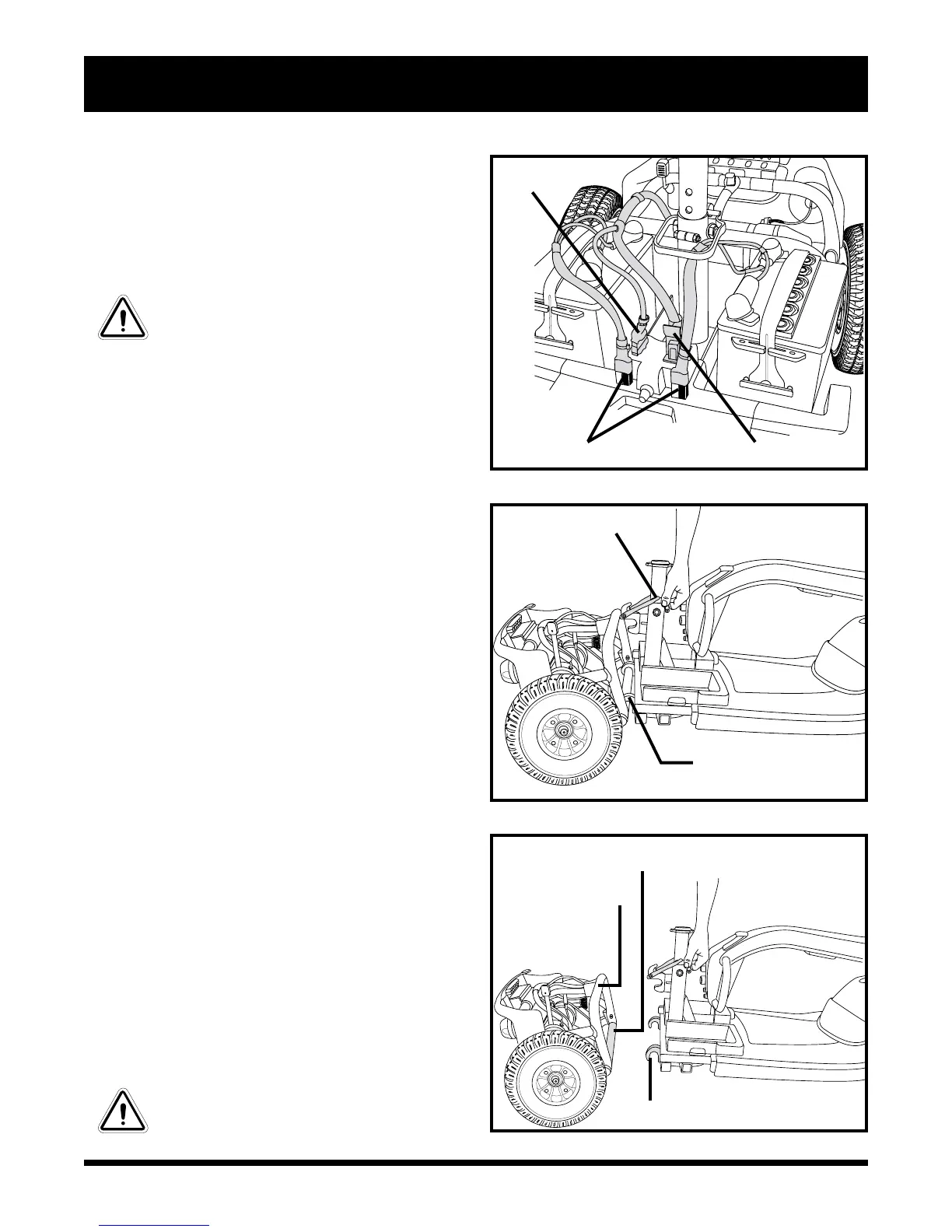

Figure 20. Harness Connections
4. Unplug the front-to-rear and lighting harnesses by
squeezing the sides and pulling straight up.
5. Unplug both battery harnesses. Pull each harness
straight up. See figure 20.
6. Remove the batteries from the battery wells.
WARNING! Failure to unplug both
battery harnesses, the front-to-rear
harness, and lighting harness prior
to separating the front and rear
sections could result in permanent
damage to the scooter.
Frame Separation
1. Lift up on the frame release lever. See figure 21.
2. Lift the front section up until the frame hooks of the
front section separate from the rear section. See
figure 21.
NOTE: Stabilize the rear section with your free
hand by holding onto the upper frame tube.
3. Slowly separate the two sections. See figure 22.
ASSEMBLY
1. Position the front and rear sections of your scooter as
shown in figure 22.
2. Use the frame release lever to lift the front section
as you align the frame hooks of the front section
with the lower frame tube of the rear section. See
figure 22.
3. Once the frame hooks are over the lower frame
tube, lower the front section completely. This will
engage the frame lock. See figure 21.
4. Raise the tiller and fully tighten the tiller adjustment
knob.
5. Reinstall both batteries.
6. Connect the front-to-rear harness, rear lighting har-
ness and both battery harnesses. See figure 20.
7. Reinstall the rear shroud.
8. Reinstall the seat and rotate it until it locks into place.
9. Unlock the front wheel by turning the tiller lock knob
90° counterclockwise. See figure 19A.
After assembly, make absolutely
certain the tiller lock knob is in the
unlocked position before riding your
scooter.
Figure 21. Frame Release
Figure 22. Frame Separation
IX. DISASSEMBLY AND ASSEMBLY
LOWER FRAME TUBE
FRAME HOOK
BATTERY HARNESSES FRONT-TO REAR HARNESS
FRAME HOOK
FRAME RELEASE LEVER
REAR LIGHTING
HARNESS
UPPER FRAME TUBE
