VIII. COMFORT ADJUSTMENTS
SEAT HEIGHT ADJUSTMENT
The seat can be repositioned to different heights. See
figure 17.
1. Remove the seat and shroud from your scooter. See
IX. Disassembly and Assembly.
2. Loosen the seat height adjustment nut and remove it
from the bolt. Remove the bolt and washers.
3. Loosen the clamp-action bolt.
4. Raise or lower the upper seat post to the desired
seat height.
5. While holding the upper seat post at that height, match
up the locating holes in the upper seat post with those
of the lower seat post.
6. With one washer on the seat height adjustment bolt,
insert it through the locating holes of both the upper
and lower seat posts. Reinstall the other washer and
nut and tighten.
NOTE: Ensure both washers have been reinstalled
before fully tightening the seat height adjustment
nut..
7. Tighten the clamp-action bolt
8. Reinstall the rear shroud and the seat.

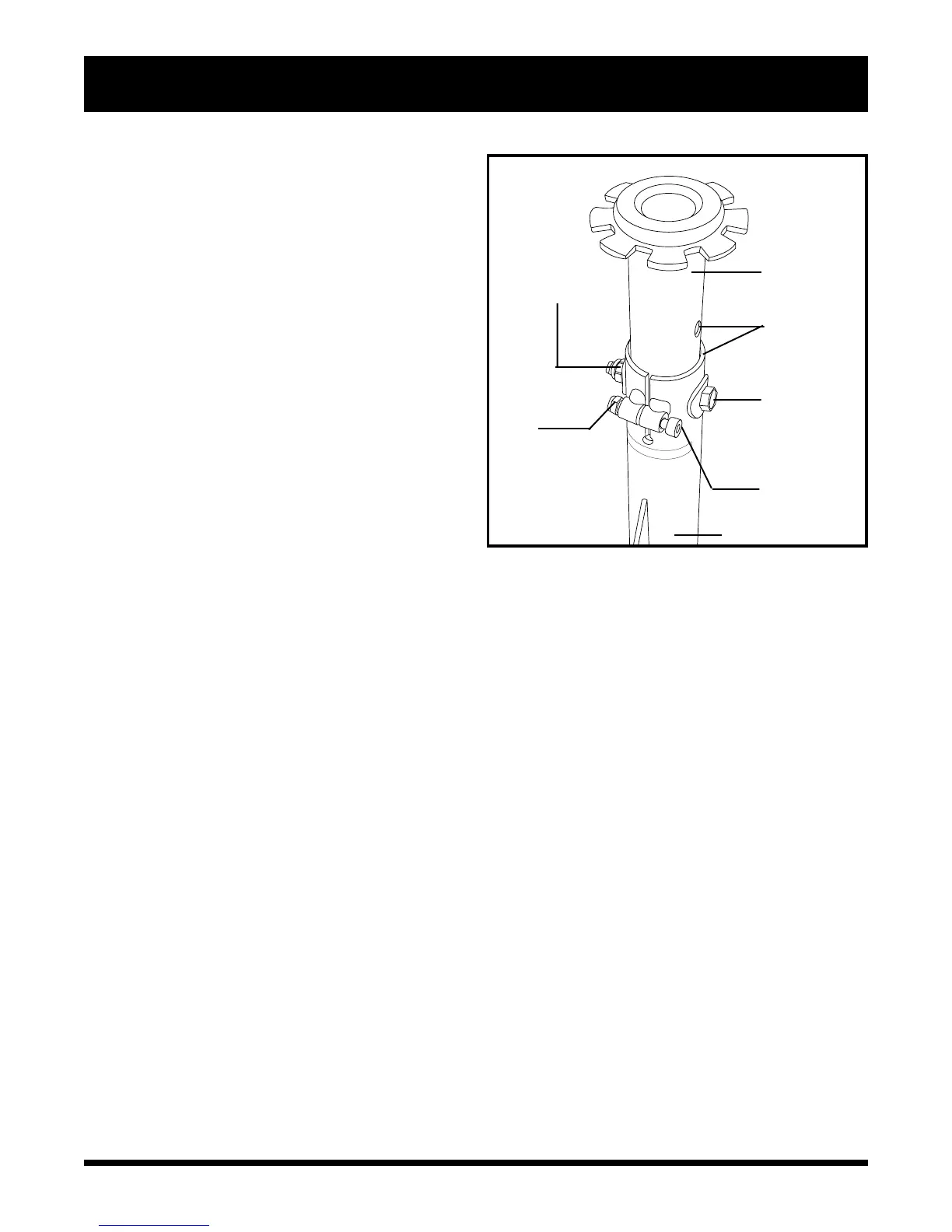

Figure 17. Seat Height Adjustment
LOWER SEAT POST
SEAT HEIGHT
ADJUSTMENT
BOLT
SEAT HEIGHT
ADJUSTMENT
NUT
CLAMP-ACTION
BOLT
NUT
LOCATING
HOLES
UPPER SEAT
POST
