Figure 15A. Toggle Latch (Unlatched)
Figure 15. Toggle Latch (Latched)
Toggle Latch Release
1. Push in the toggle latch release button while pulling back on the toggle latch. See figure 15.
2. Rotate the toggle latch buckle over the top of the toggle latch until it snaps into its retainer. See figure 15A.
3. Loosen the tiller adjustment knob and lower the tiller until it is horizontal to the scooter floorboard.
4. Fully tighten the tiller adjustment knob.
2. Remove the seat by lifting it straight up and off of the scooter.
3. Remove the battery pack. Use the battery pack handle to pull the battery pack up and away from the scooter.
See figure 13.
4. Unplug the front-to-rear harness. See figure 14.
VIII. DISASSEMBLY AND ASSEMBLY
TOGGLE
LATCH
TOGGLE
LATCH
RELEASE
BUTTON
TOGGLE LATCH BUCKLE

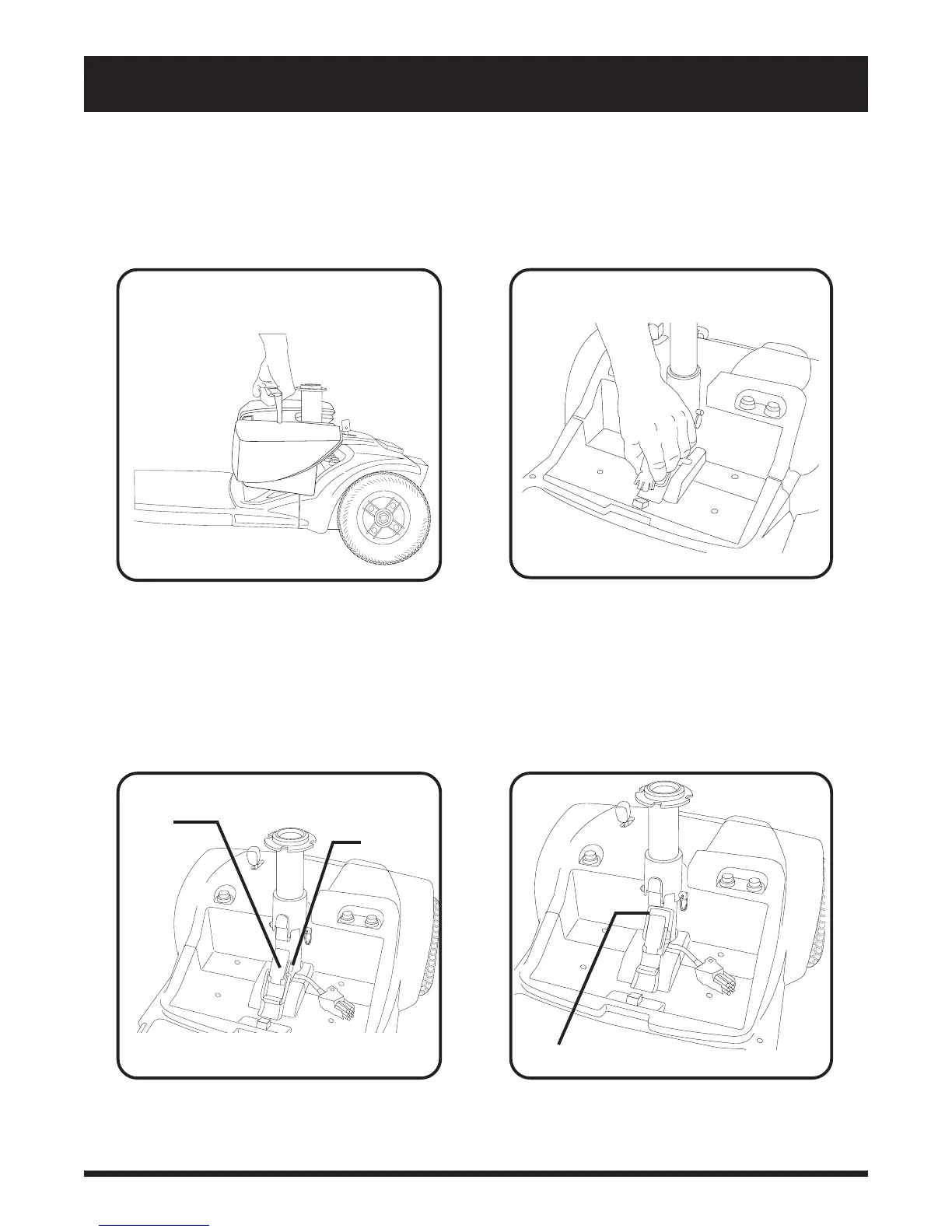

Figure 13. Lifting The Battery Pack
Figure 14. Front-To-Rear Harness
