Frame Separation
1. Push back on the seat post to pivot the scooter’s
rear section backwards until the rear section is stand-
ing vertically on its rear bumper. See figure 21.
2. Lift the front section up until the lower pegs are
no longer in the slots. See figure 22.
3. Carefully lift the front section vertically away from
the rear section.
ASSEMBLY
1. Position the front and rear sections of your scooter as
shown in figure 23.
2. Align the lower slots of the front section with the
corresponding pegs on the front of the rear sec-
tion. See figure 22.
WARNING! Position the front-to-rear
cable so it won’t become pinched
between the frame halves when
pivoting the rear section forward.
3. Holding the seat post, slowly pivot the rear section
forward until the curved locking brackets are fully
connected onto the top rear pegs. See figure 21.
4. Raise the tiller.
5. Secure the toggle latch. See figure 20.
! Lower the toggle latch buckle.
! Push back on the toggle latch so it locks into
place.
6. Replace the batteries and tighten the battery strap.
7. Connect the charge port harness, front-to-rear har-
ness and both battery harnesses.
8. Connect the rear lighting harnesses.
9. Reinstall the rear shroud and secure it by tighten-
ing the shroud locks.
10. Replace the seat.

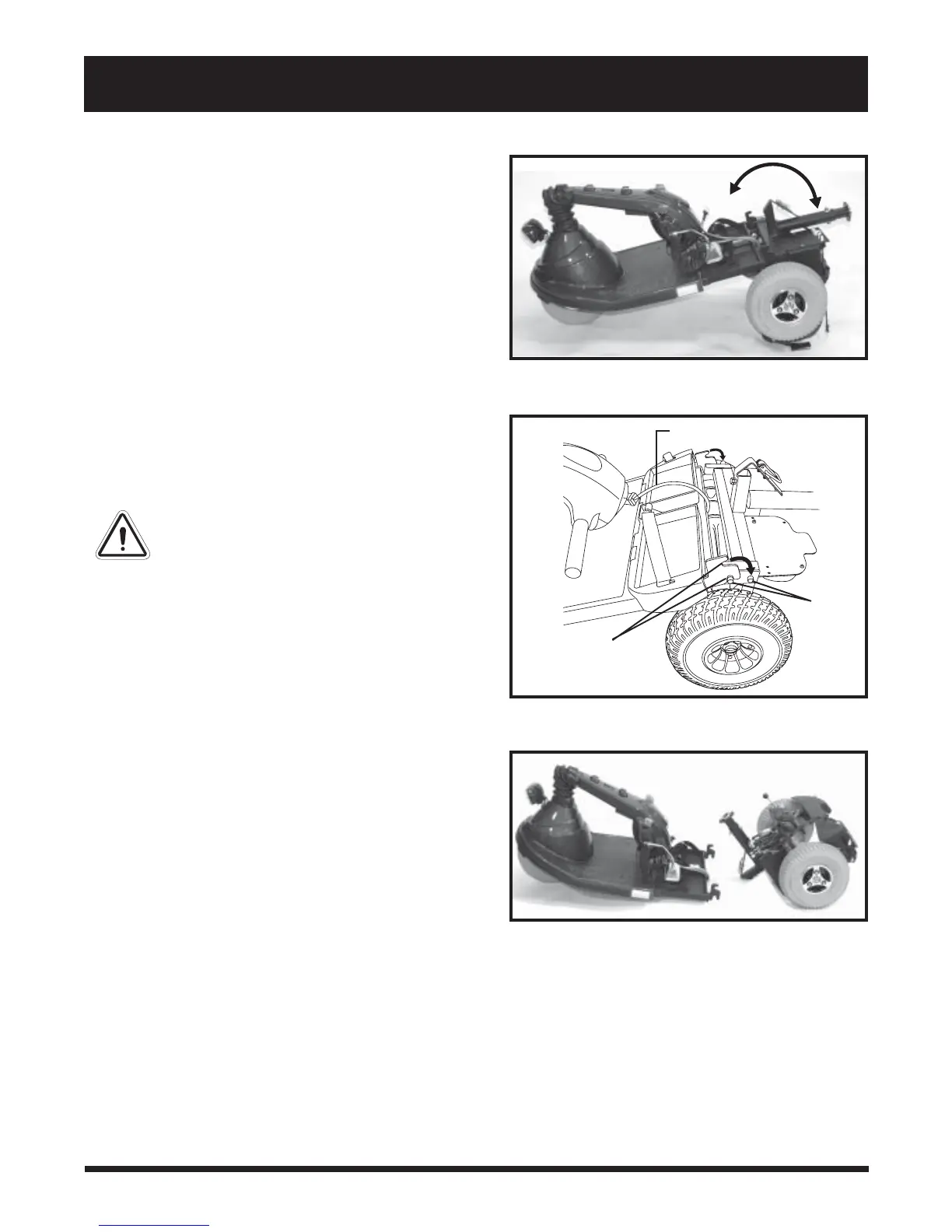

Figure 23. Frame Halves
Figure 21. Frame Positioning
Figure 22. Separating the Frames
