40 www.pridemobility.com Jazzy Select Series
VII. CARE AND MAINTENANCE

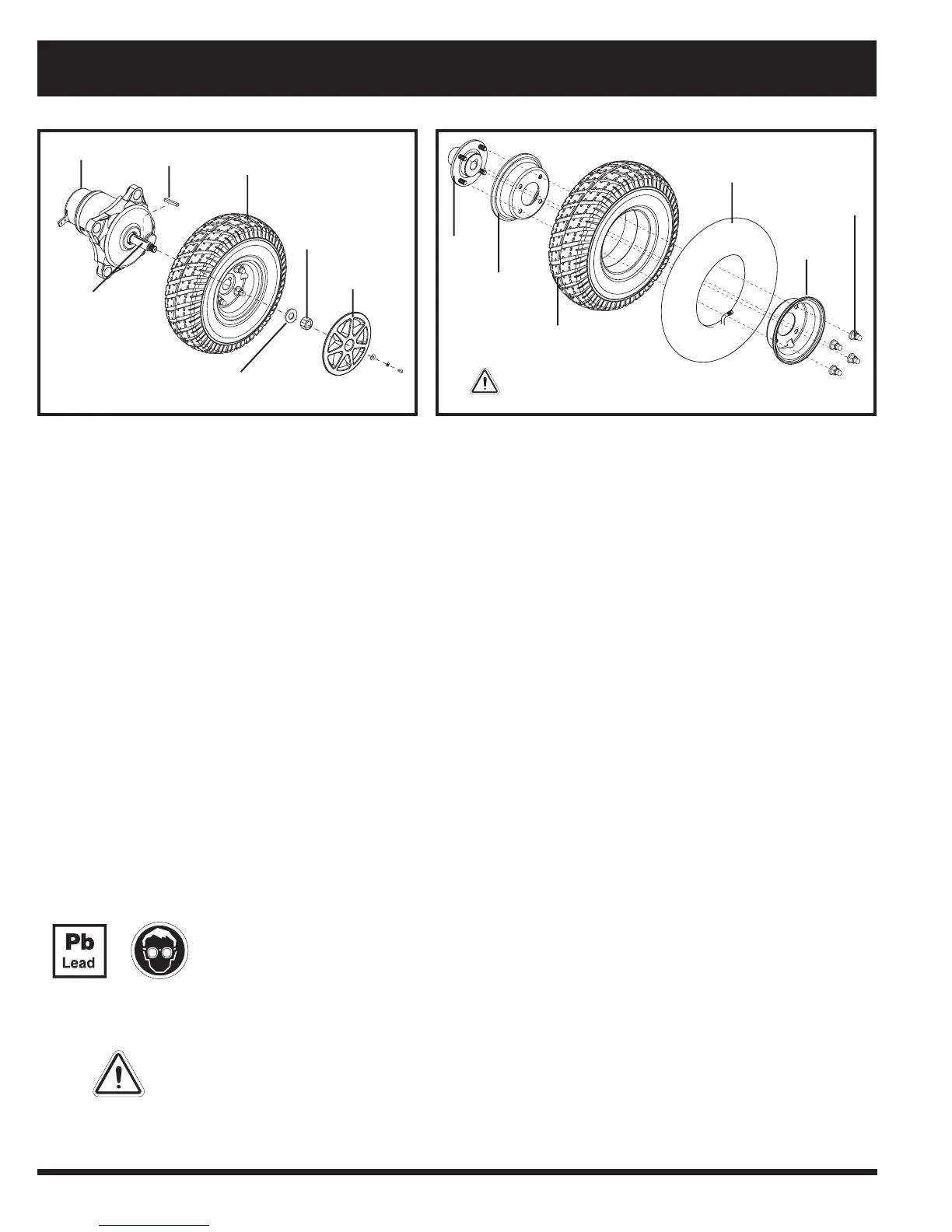

Figure 28. Jazzy Select Series Drive Wheel Removal Figure 29. Jazzy Select Series Drive Wheel Disassembled
MOTOR
AXLE
KEY
DRIVE
WHEEL
DRIVE WHEEL NUT
HUB CAP
WHEEL
HUB
RIM
HALF
TIRE
TUBE
RIM HALF
ACORN NUTS
WARNING! Completely deflate
the tire before attempting repair.
DRIVE WHEEL WASHER
Follow these easy steps for a quick and safe repair for both pneumatic and solid tires:
1. Turn off the power to the controller.
2. Make sure that the power chair is in drive mode. See figure 11.
3. Raise and support the power base so that the wheel is at least 1 in. (2.5 cm) off of the ground.
4. If you are changing a pneumatic tire completely deflate it before removing the wheel.
5. Remove the hub cap. See figure 28.
6. Remove the drive wheel nut and washer from the axle. See figure 28.
7. Remove the drive wheel from the axle. Make sure that you keep the key.
8. Remove the acorn nuts that fasten the two rim halves together. See figure 29.
9. Remove the old tube from the pneumatic tire and replace it with a new tube or replace the entire assembly if it is a solid tire.
10. Reassemble the two rim halves.
11. Slide the wheel back onto the axle. Make sure that the key is in the axle slot.
12. Reinstall the drive wheel nut and washer onto the axle and tighten. See figure 29.
13. Reinstall the hub cap.
14. Inflate the pneumatic tire to 35 psi (2.4 bar).
15. Remove the power chair from the base support.
Battery Replacement
A battery wiring diagram is printed on a decal located the power base. See VI. “Batteries and Charging” for correct
battery specifications.
MANDATORY! Battery posts, terminals, and related accessories contain lead and lead
compounds. Wear goggles and gloves when handling batteries and wash hands after
handling.
WARNING! The batteries in your power chair should only be serviced or replaced by an
authorized Pride Provider or a qualified technician.
WARNING! Do not replace batteries when seat is occupied.
WARNING! Power chair batteries are heavy. See specifications table. If you are unable
to lift that much weight, be sure to get help. Use proper lifting techniques and avoid
lifting beyond your capacity.
