Pride Rally - Rear Section Components; Onboard Battery Charger Explanation

13
Rally
REAR SECTION
The onboard battery charger, the charger power cord receptacle, the battery charger fuse, the batteries, the
electronic controller assembly, the main circuit breaker, the manual freewheel lever, and the motor/transaxle
assembly are located on the rear section of your Rally. See VIII Disassembly and Assembly for instructions
on removing the rear shroud. The anti-tip wheels are at the rearmost part of your Rally. See figure 7.
IV. DESCRIPTION
Onboard Battery Charger
The onboard battery charger converts household alternating current (AC) to direct current (DC) and charges the
batteries of your Rally. See V. Batteries and Charging.
n The charger is located behind the batteries and at the forward right corner of the rear section.
n The charger is a box with cooling fins on the exterior of its case.
n The charger power cord plugs into the battery charger by means of a receptacle located on the rear
section of your Rally, near the manual freewheel lever and the main circuit breaker reset button. See
figure 7.
Battery Charger Fuse
The fuse has been incorporated into your charger to protect it from damage in the event of an electrical
problem.
If your charger fuse repeatedly blows, try plugging your Rallys power charger cord into an outlet on a different
circuit.
ONBOARD
BATTERY
CHARGER
BATTERIES
MANUAL
FREEWHEEL
LEVER
ANTI-TIP WHEELS
CHARGER
POWER CORD
RECEPTACLE
MAIN CIRCUIT
BREAKER
MOTOR/TRANSAXLE
ASSEMBLY
BATTERY
CHARGER FUSE
ELECTRONIC
CONTROLLER
ASSEMBLY

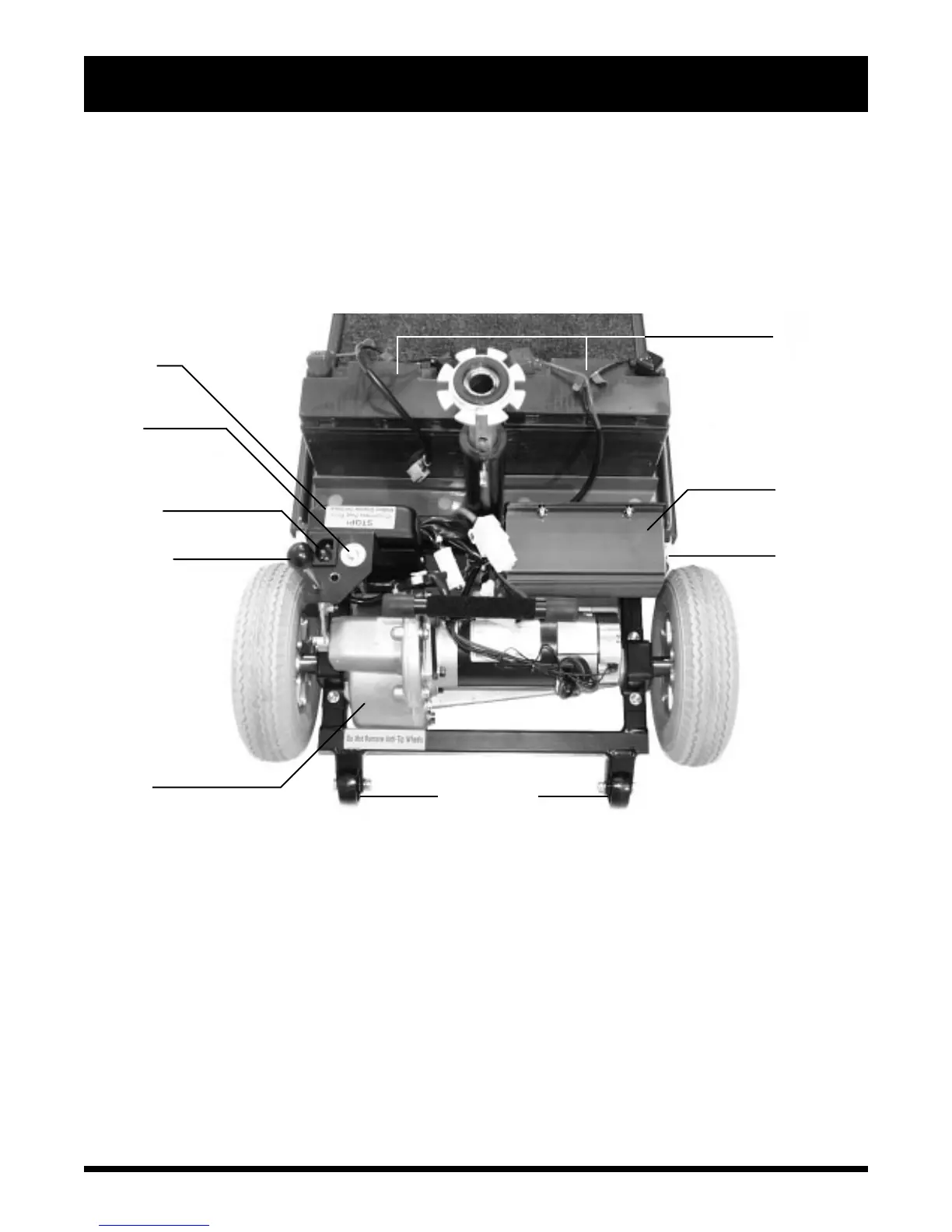

Figure 7. Rear Section
