25
Rally

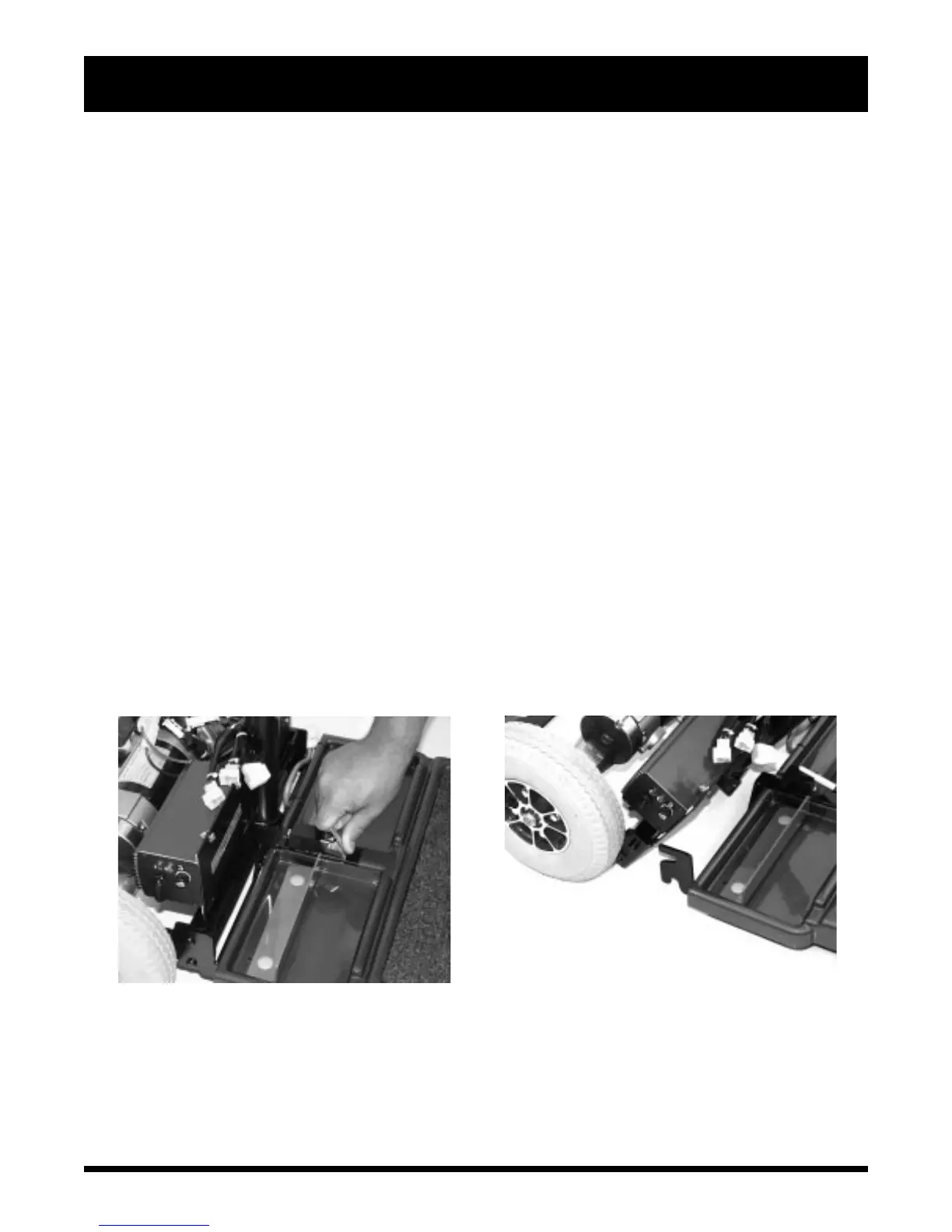

Figure 19. Front and Rear Sections
Figure18. Front-to-Rear Locking Lever
ASSEMBLY
1. Pull up on the manual freewheel lever. Putting your Rally in freewheel mode makes it easier for you to
maneuver the rear section because the drive wheels are free to turn. See IV. Description.
2. Position the front and rear sections of your Rally as shown in figure 19.
3. Align the lower slots on the rear of the front section onto the corresponding pegs on the front of the rear
section. See figure 19.
4. Gently pull up on the seat pedestal on the rear section of your Rally, so the rear section pivots into place.
5. The rear section pivots forward and locks in place with a click.
6. Raise the tiller to the upright position by turning the tiller adjustment lever until it is loose. Raise the
tiller to the desired position. Tighten the tiller adjustment lever.
7. Connect the large, white, 9-pin connector located on the harness coming out of the Rallys front section
to the connectors mating socket found near the front of the Rallys rear section. See figure 17.
8. Place the batteries in the battery wells and strap them in place. See figure 17.
9. Connect the 2-pin battery harnesses into the mating harnesses that extend from the electronic controller
assembly. See figure 17.
10. Gently place the rear shroud over the seat pedestal and slide it down into position. See figure 16. The
reusable fasteners hold it in place.
11. Carefully lift the seat and slide the seat post (on the bottom of the seat frame) into the seat pedestal. See
figure 15.
12. Rotate the seat until it locks into place to complete the assembly of your Rally.
VIII. DISASSEMBLY AND ASSEMBLY
