1/5th RAMINATOR MONSTER TRUCK

2

3

4

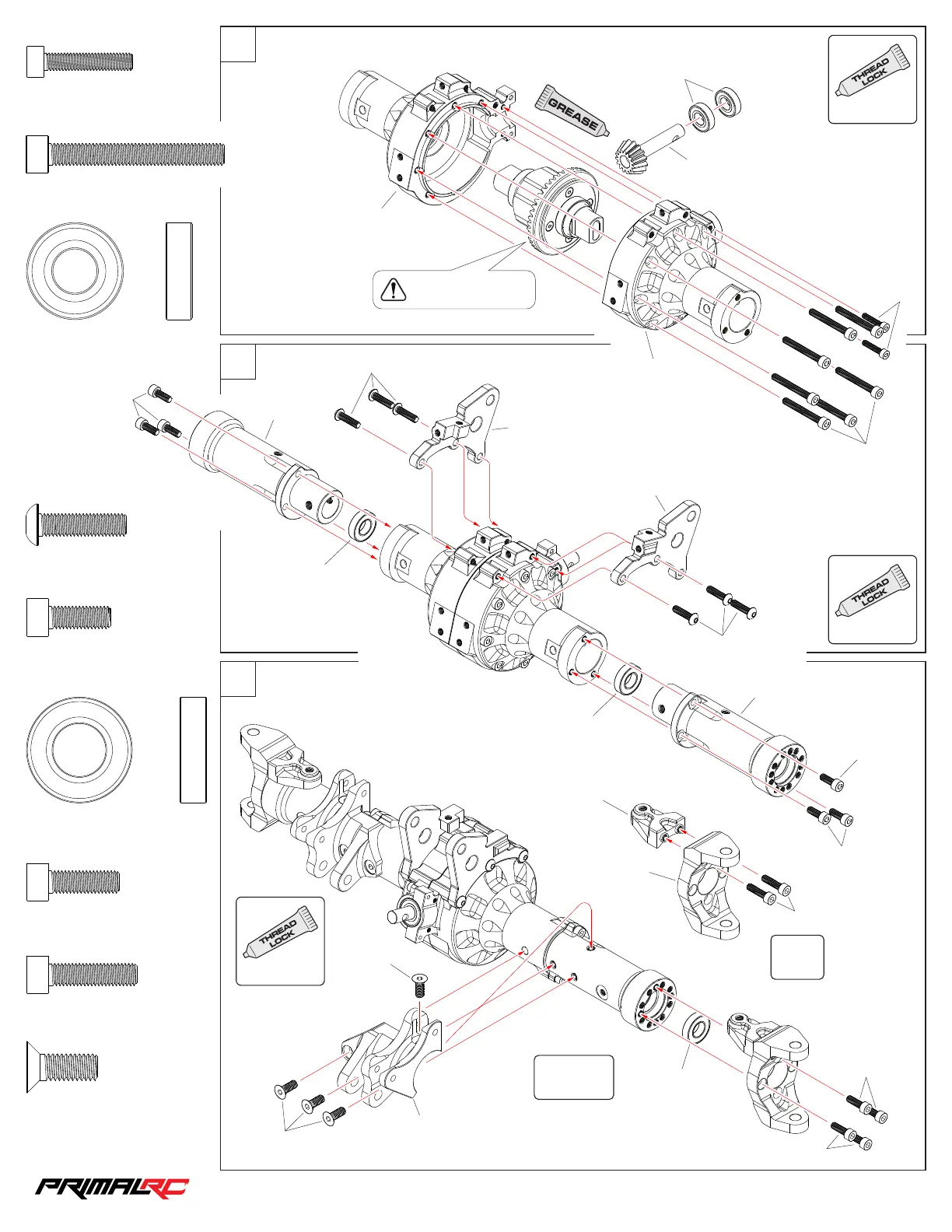

Front Axle Assembly

MCS4020

×2

M4×20mm

MCS5040

M5×40mm

×7

MBS5020

×6

M5×20mm

MCS5014

×6

M5×14mm

MCS5016

MCS5016

MCS5016

MCS5020

MCS5020

×8

×4

M5×16mm

M5×20mm

MFS6016

MFS6016

MFS6016

×8

M6×16mm

L/R

BBS102206

BBS102206

Bearing 10×22×6mm

×2

BBS122406

BBS122406

BBS122406

BBS122406

Bearing 12×24×6mm

×4

ALWAYS

USE

ALWAYS

USE

ALWAYS

USE

Notice the direction

of the differential

×2

RMT085

RMT001

RMT001

RMT002

RMT006

RMT003

RMT003

RMT007

RMT007

RMT002

MCS5040

MCS4020

MCS5014

MCS5014

MCS5014

MBS5020

MBS5020
