1/5th RAMINATOR MONSTER TRUCK

16

17

18

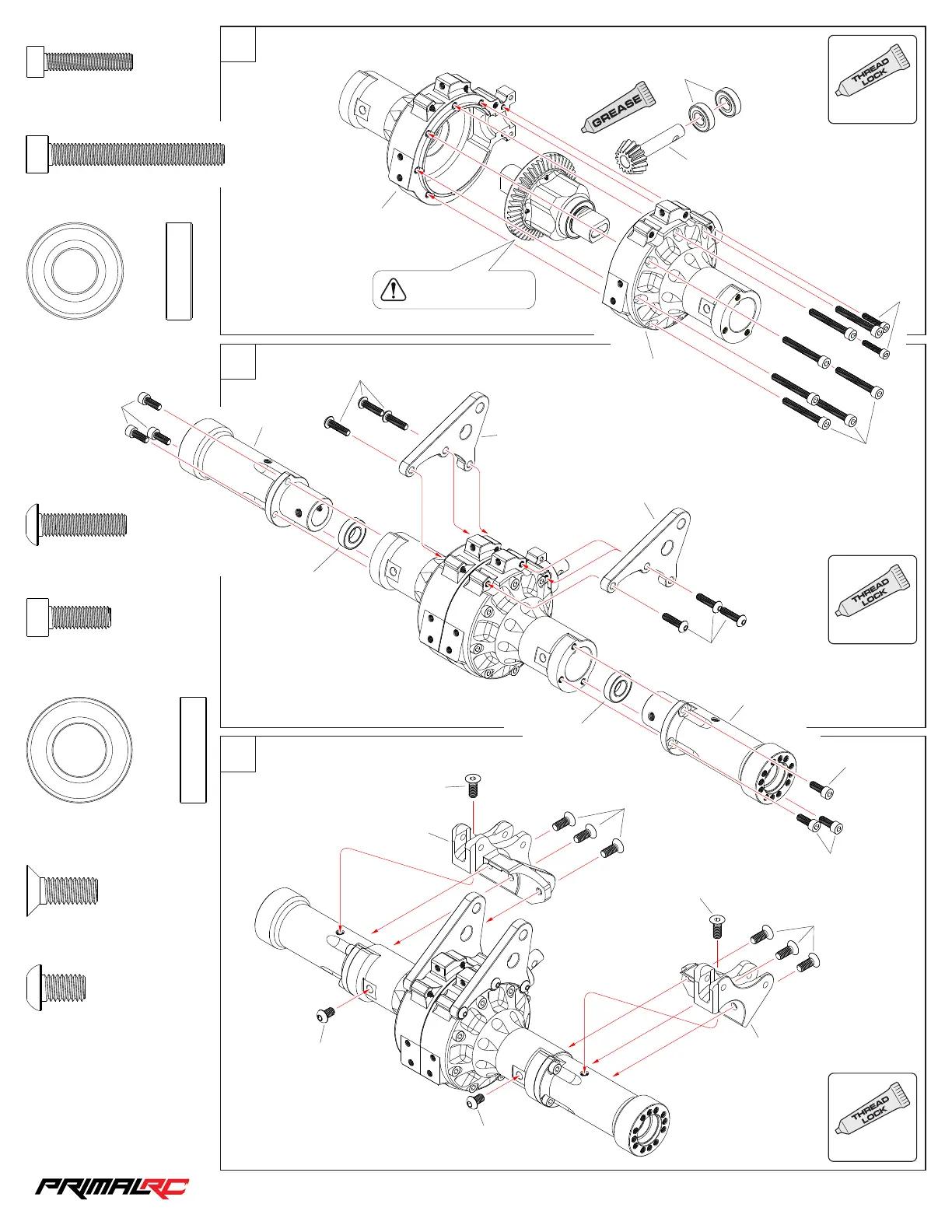

Rear Axle Assembly

MCS4020

×2

M4×20mm

MCS5040

M5×40mm

×7

MBS5020

×6

M5×20mm

MCS5014

×6

M5×14mm

MFS6016

MFS6016

MFS6016

MFS6016

MFS6016

×8

M6×16mm

BBS102206

Bearing 10×22×6mm

×2

BBS122406

Bearing 12×24×6mm

×2

ALWAYS

USE

ALWAYS

USE

ALWAYS

USE

MBS6010

MBS6010

MBS6010

×2

M6×10mm

Notice the direction

of the differential

BBS102206

RMT085

RMT001

RMT001

MCS5040

MCS4020

BBS122406

BBS122406

RMT002

RMT008

RMT008

RMT002

MCS5014

MCS5014

MCS5014

MBS5020

MBS5020

RMT006

RMT006

19
