1/5th RAMINATOR MONSTER TRUCK

22

23

ALWAYS

USE

ALWAYS

USE

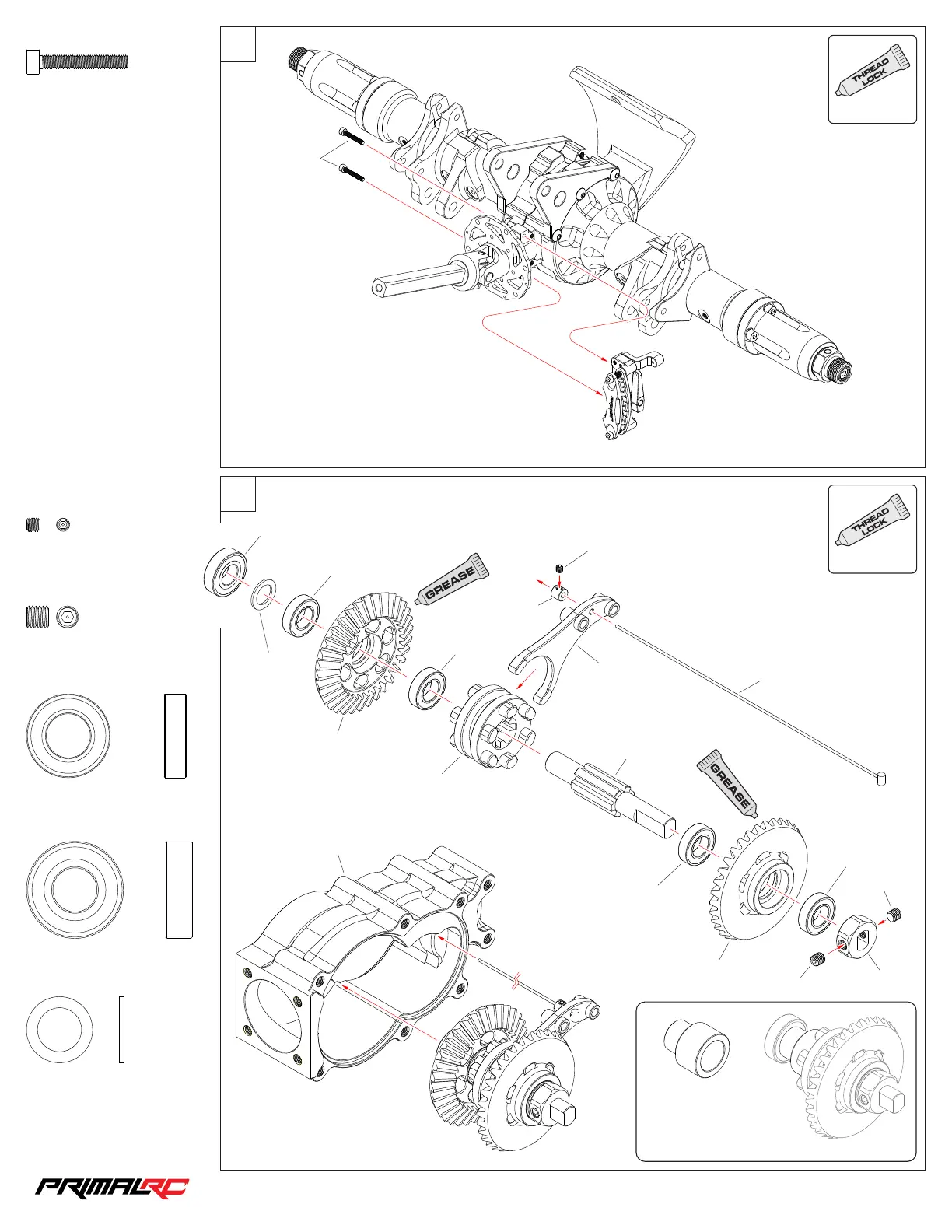

Transmission Assembly

MCS3020

MCS3020

×2

M3×20mm

MSS3003

MSS3003

×1

M3×3mm

MSS5005

MSS5005

If you don’t want the

reverse function, replace

the rear side bevel gear

and bearings with the shaft

spacer packed in the box.

MSS5005

×2

M5×5mm

BBS101905

BBS101905

BBS101905

BBS101905

BBS101905

Bearing 10×19×5mm

×4

MWS101510

MWS101510

Washer 10×15×1mm

×1

RMT141

RMT101

RMT013

RMT011

RMT065

RMT064

RMT088

RMT088

RMT063

BBS102206

BBS102206

Bearing 10×22×6mm

×1
