8 Getting Started

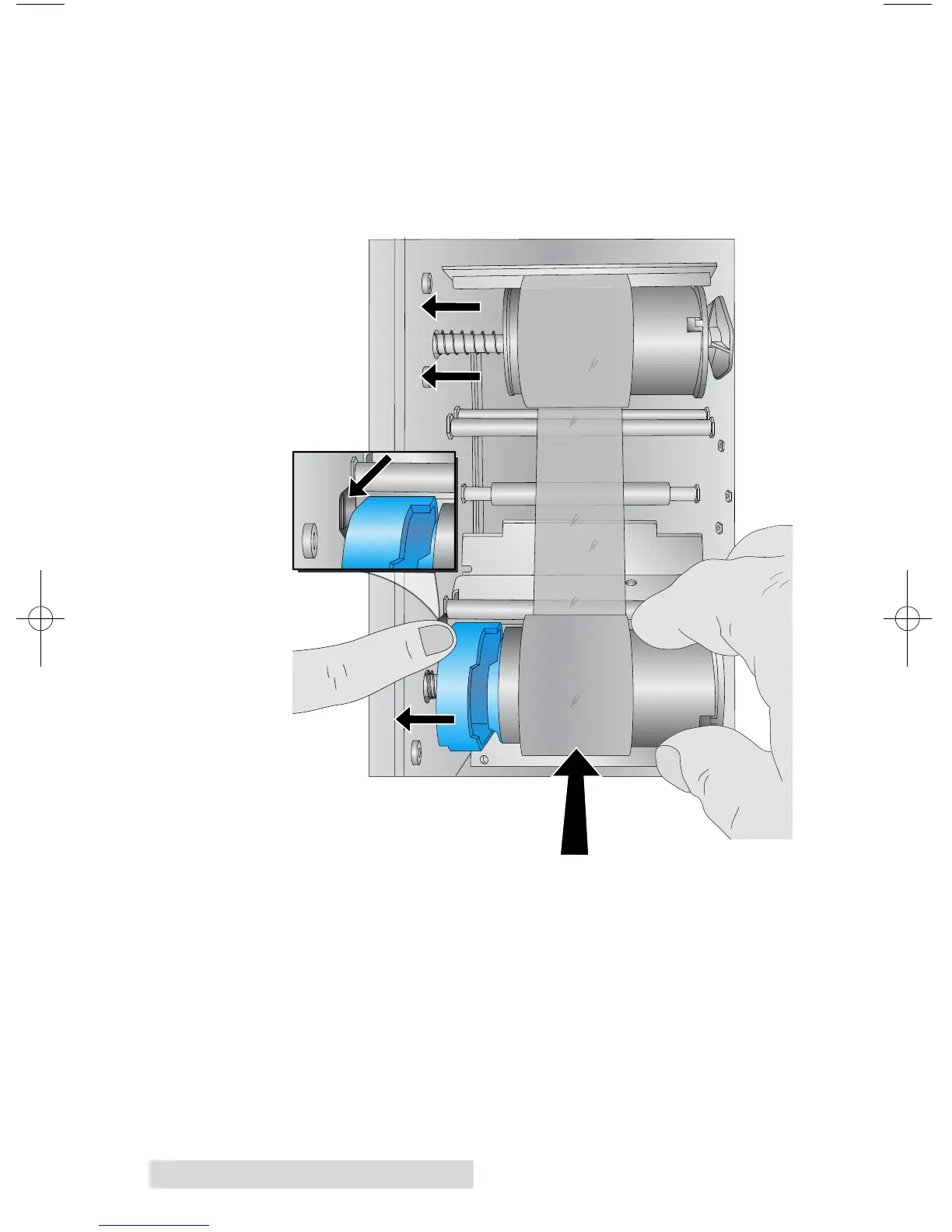

3. Remove the ribbon from its shrink wrapped packaging.
Hold the take up (back) ribbon core with your left hand.
Hold the supply (front) ribbon with your right hand.
Install the take up ribbon by depressing the spring loaded
hub inside the printer. Snap the take up ribbon core into
place.
4. Push the blue spring loaded hub by depressing the tab
with your left pointer finger. Insert the supply ribbon
straight down. Match the blue shape on the ribbon to the
corresponding depression on the hub. (You may need to
rotate the blue shape on the ribbon.)
Important Note: To prevent damage
to print head, do not touch the print
head with a finger ring containing
diamond or metal.
To Next Page
