9

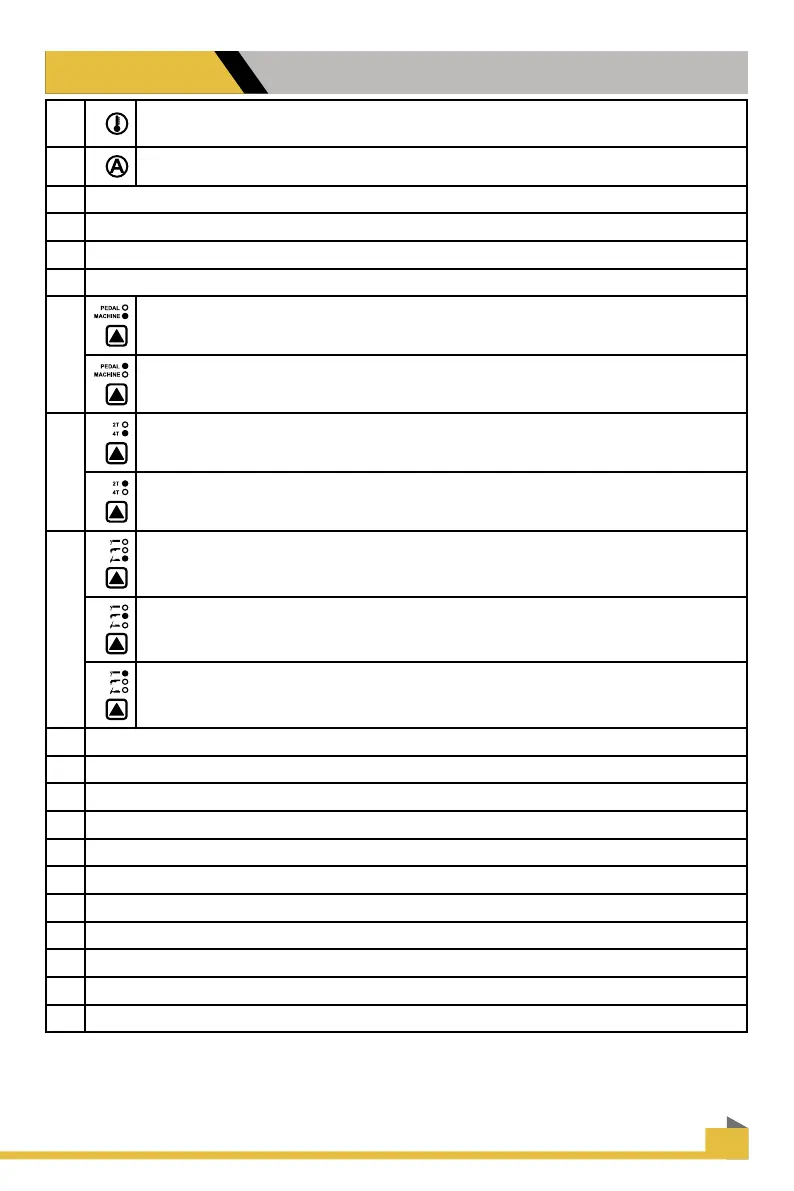

LAYOUT
1
Overheating indicator, It illuminates when the working temperature of the IGBT is
overly high. Meanwhile,The machine stop working.
2
It is current indicator, Lighting when machine power on
3 LED Current Display.
4 Amperage Control Knob.
5 Time adjument for post air
6 Air Pressure Gauge.Suggest Air Range: 45-70PSI
7
Machine indicator, Current knob can use in this selection, can not use pedal.
Pedal: current knob on machine can not be used in this selection, Can use the
pedal adjust the current
8
4T is selected press and release trigger Arc starts, press and release trigger Arc
stops.
2T is selected press trigger Arc starts, release trigger Arc stops.
9
TIG function please select it before using machine
Cutting function please select it before using machine
Stick function please select it before using machine
10 Stick connector
11 TIG and Cutting torch connector
12 Switch connector for TIG and Cutting torch
13 Earth clamp connector
14 Air regulator
15 Power switch
16 Quick air connector
17 Power cable Input Voltage 110/220v, Voltage Automatic Identication, no need hand switch
18 Argon Gas in
19 Air in
20 To Air Meter
