30
LAYOUTACCESSORIES

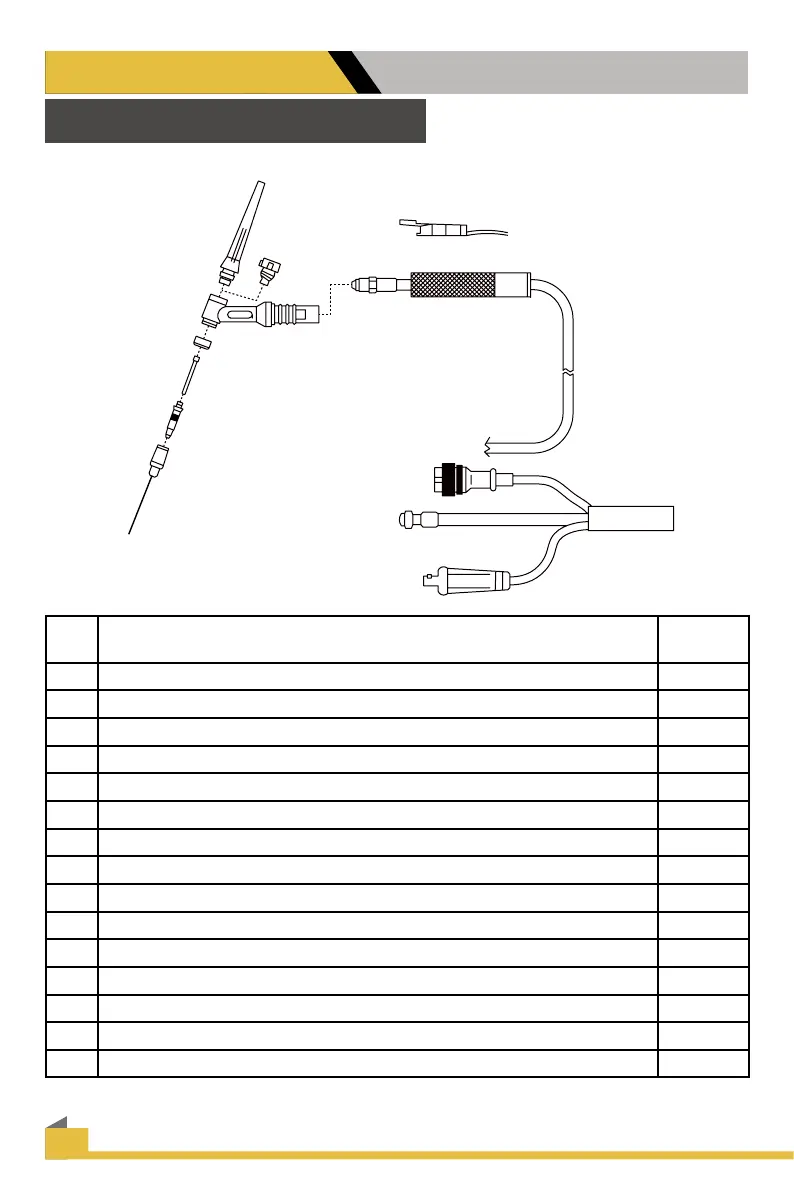

EXPANDED VIEW OF TIG TORCH
(Actual appearance may vary slightly from what is listed.)
1
3
4
5
6
7
8
9
9
11
10
12
13
15
14
2
NO. Parts for Standard 26 Series Torch ( 18 series uses same consumables and
basic design is similar, except water cooler line plumbing)
QTY.
1 Long Back Cap with O-Ring 1
2 Short Back Cap Opt.
3 Torch Head 1
4 Insulator 1
5 Collet 1/16 or 3/32 1
6 Collet Holder 1
7 Ceramic Cup #5,6, or 7 1
8 Tungsten (customer supplied) 1
9 Torch Cable 1
10 Torch Handle (Blue ergo handle std, not pictured) 1
11 Torch Switch (Built into ergo handle, separate on straight handle) 1
12 Torch Switch Connector 1
13 9mm (1/8”) b quick connect coupling (male) 1
14 Power Connector 1
15 Protective Synthetic Rubber Cover 1
