PrimeWeld CT520D - Air Compressor and Regulator Connection

12

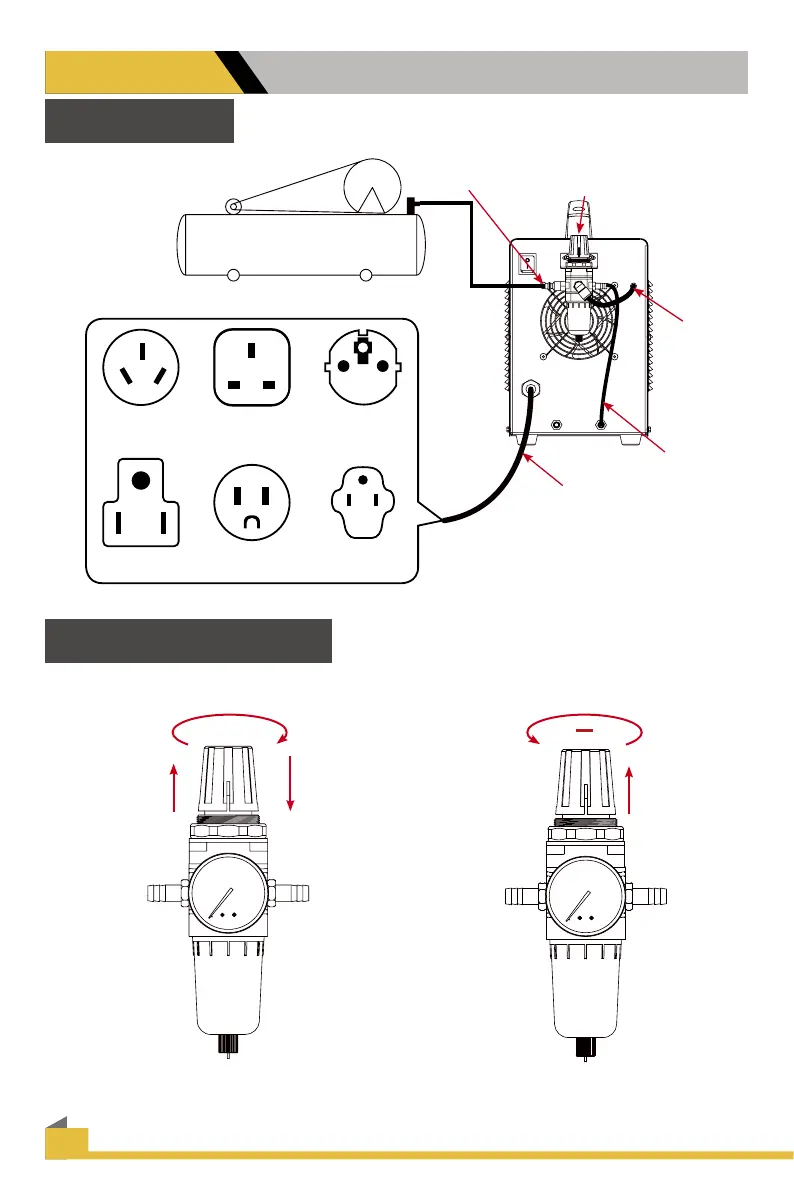

LAYOUT
Connection
Air Compressor
AU UK EURO
USA 110V USA 220V
Air
regulator
Air input
Power cable
Air hose
to air
meter
Air hose to
torch
How to use air regulator
Anti-Clockwise
Reduce air pressure
+
Pull up Pull down
Clockwise increase
air pressure
Air Pressure range: 40-70 PSI
