Pro-face GP-37W3 Series User Manual

Chapter 2 - Specifications
GP-37W3 Series User Manual 2-7
A:Display Panel
The GP monitor screen displays the screen
setup and corresponding PLC host data.
B:Touch Panel
Performs any screen change operations and
sends data to the PLC.
C:Status LED
Lights green while the power is ON.
D:Power Input Terminal Block
The input and ground terminals for the
power cable.
E:Serial Interface
Used for the RS-232C and RS-422 (Serial)
cables. Is connected to the Host (PLC).
F: Tool Connector
The Data Transfer cable can be connected
here.

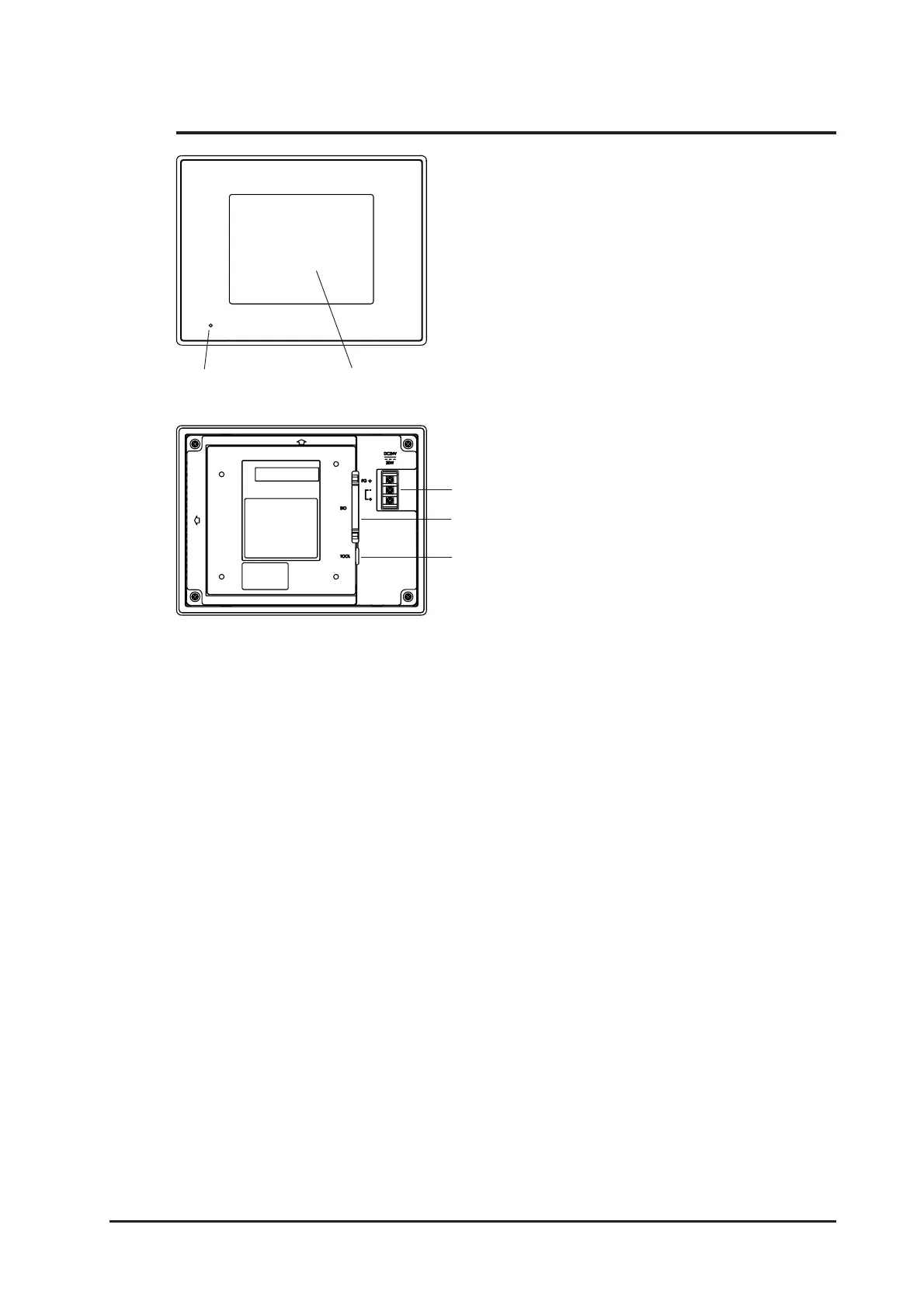

2.4 Part Names and Functions
A,B
C
E
F
D

Pro-face GP-37W3 Series Specifications

General

Brand	Pro-face
Model	GP-37W3 Series
Category	Control Unit
Language	English
