GP-4402WW/GP-4502WW Hardware Manual

11

Parts Identification and Functions

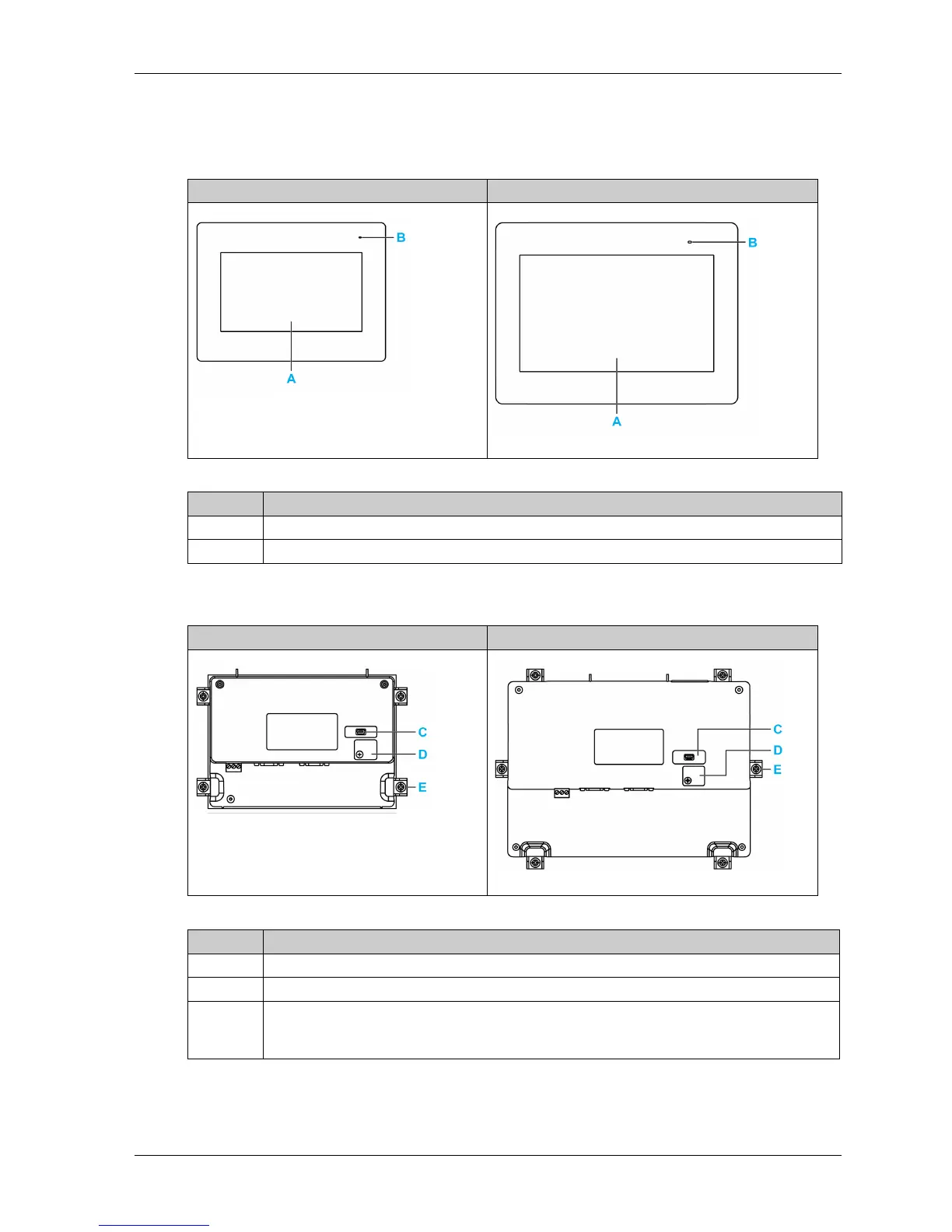

Front View

Rear View

GP-4402WW GP-4502WW

Part Description

A Touch panel

B LED indicator

GP-4402WW GP-4502WW

Part Description

C USB mini B

D Locker USB Type A

E Screw installation fasteners:

 GP-4402WW x 4

 GP-4502WW x 6
