Panel-cut Dimensions
Inserting a GP-4402WW/GP-4502WW

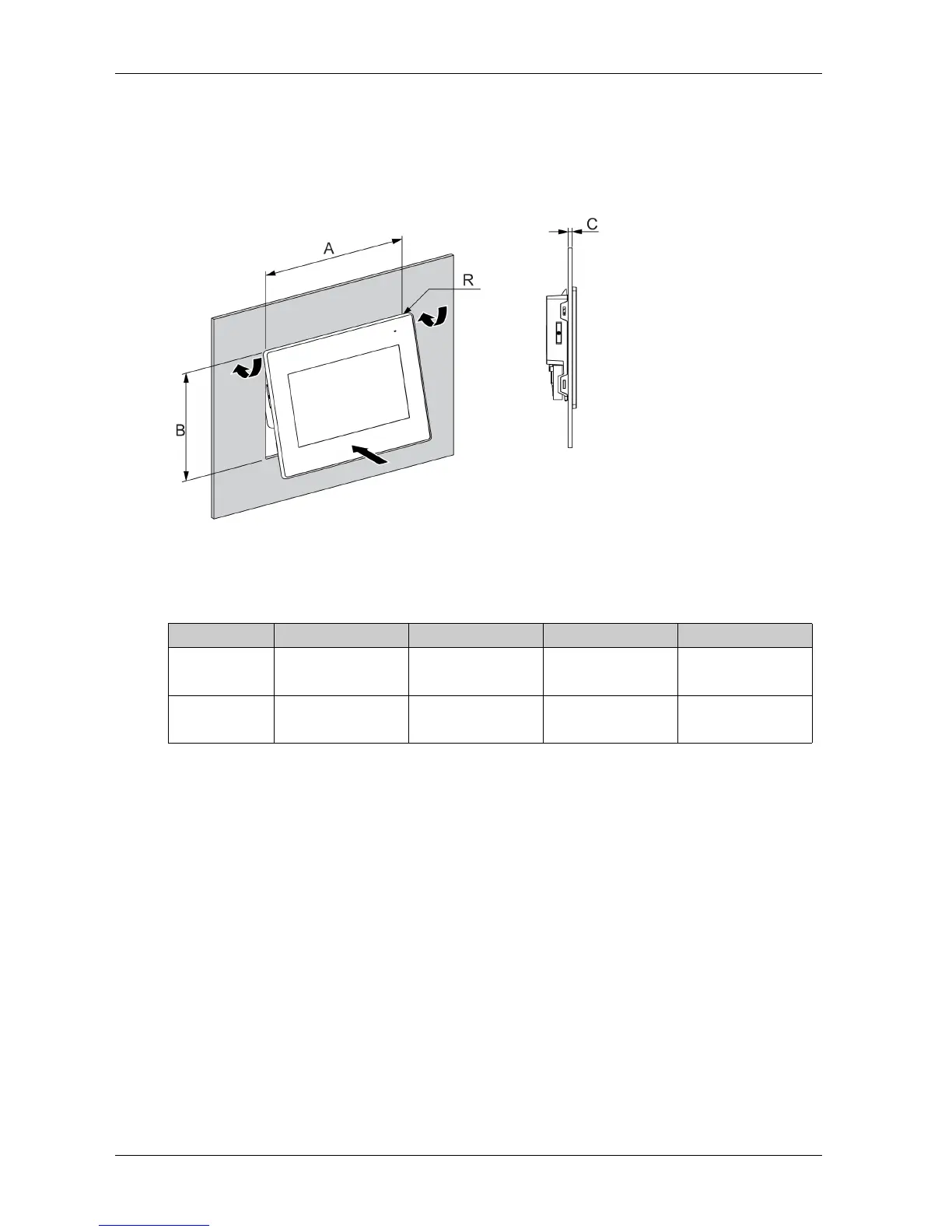

Create a panel-cut and insert the panel from the front. This figure shows the panel-cut for the
GP-4402WW/GP-4502WW:
Dimensions
The following table shows the panel-cut dimensions for each panel:
Model A B C (Panel thickness) R
GP-4402WW
190
±1
mm
(7.48
±0.04
in)
135
±0.7
mm
(5.31
±0.03
in)
1...5 mm
(0.04...0.19 in)
3 mm
(0.12 in) max.
GP-4502WW
255
±1
mm
(10.04
±0.04
in)
185
+1
mm
(7.28
+0.04
in)
1...5 mm
(0.04...0.19 in)
3 mm
(0.12 in) max.
