10

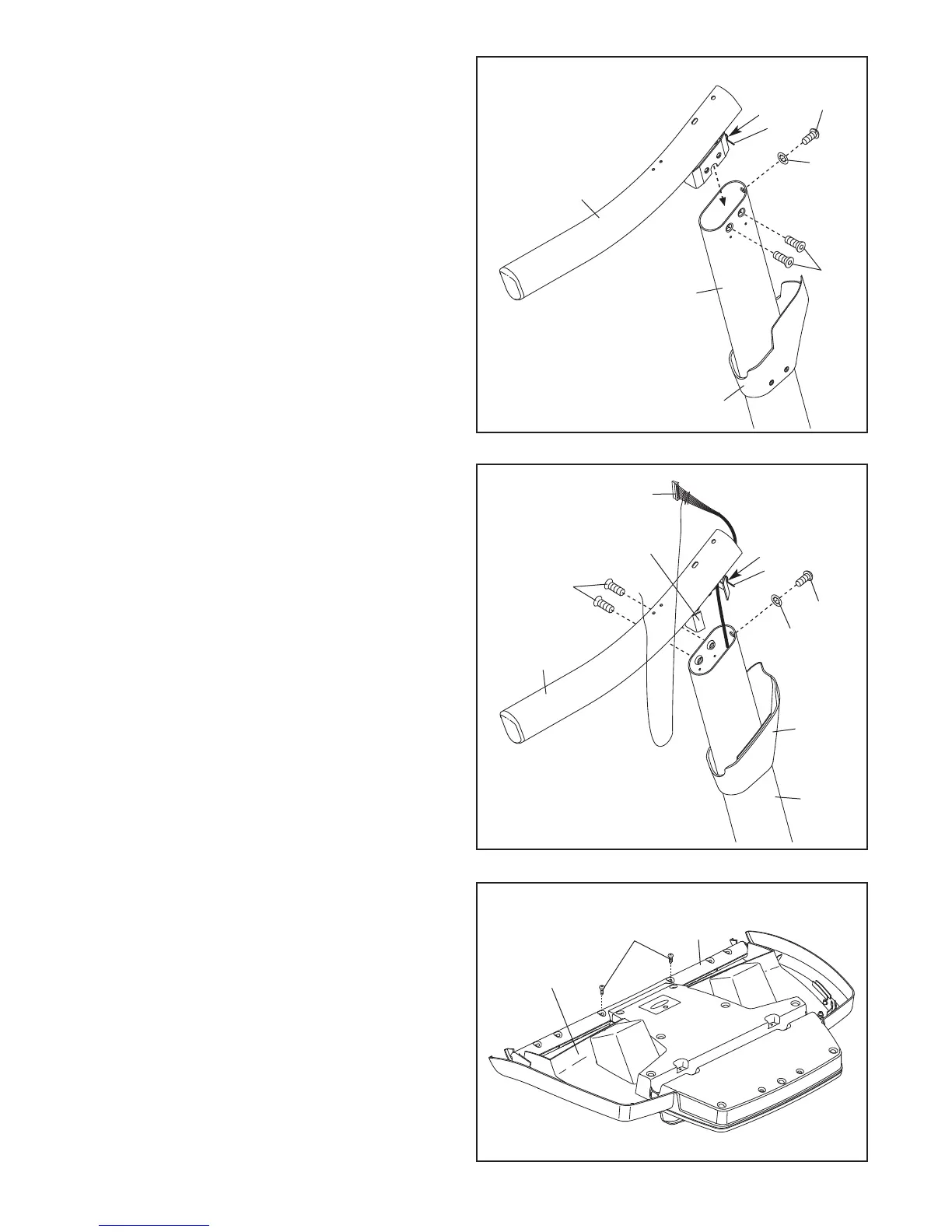

8. Slide the Right Upright Cover (86) onto the
Right Upright (85). Remove the tie from the
bracket on the Right Handrail (83). If necessary,
press the 5/16" Cage Nut (38) back into place.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the bracket on the bottom of the Right
Handrail. Pull the Upright Wire out of the end of
the Right Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with two 5/16" x 1" Flat Head Patch
Bolts (3) and a 5/16" x 1" Patch Bolt (4) with a
5/16" Star Washer (13). Do not tighten the
Patch Bolts yet.
9. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two #8 x 3/4" Screws (1). Lift
off the Crossbar (107). Discard the Screws.
9
107
Console
Assembly
1
83
Bracket
3
4
13
86
85
87
8
7. Identify the Left Upright Cover (80). Slide the
Left Upright Cover onto the Left Upright (84).
I
dentify the Left Handrail (82). Remove the tie
from the bracket on the Left Handrail. If neces-
s
ary, press the 5/16" Cage Nut (38) back into
place.
Attach the Left Handrail (82) to the Left Upright
(84) with two 5/16" x 1" Flat Head Patch Bolts
(3) and a 5/16" x 1" Patch Bolt (4) with a 5/16"
Star Washer (13). Do not tighten the Patch
Bolts yet.
8
2
4
3
13
84
80
7
Tie
38
Tie
38
To Next Page
