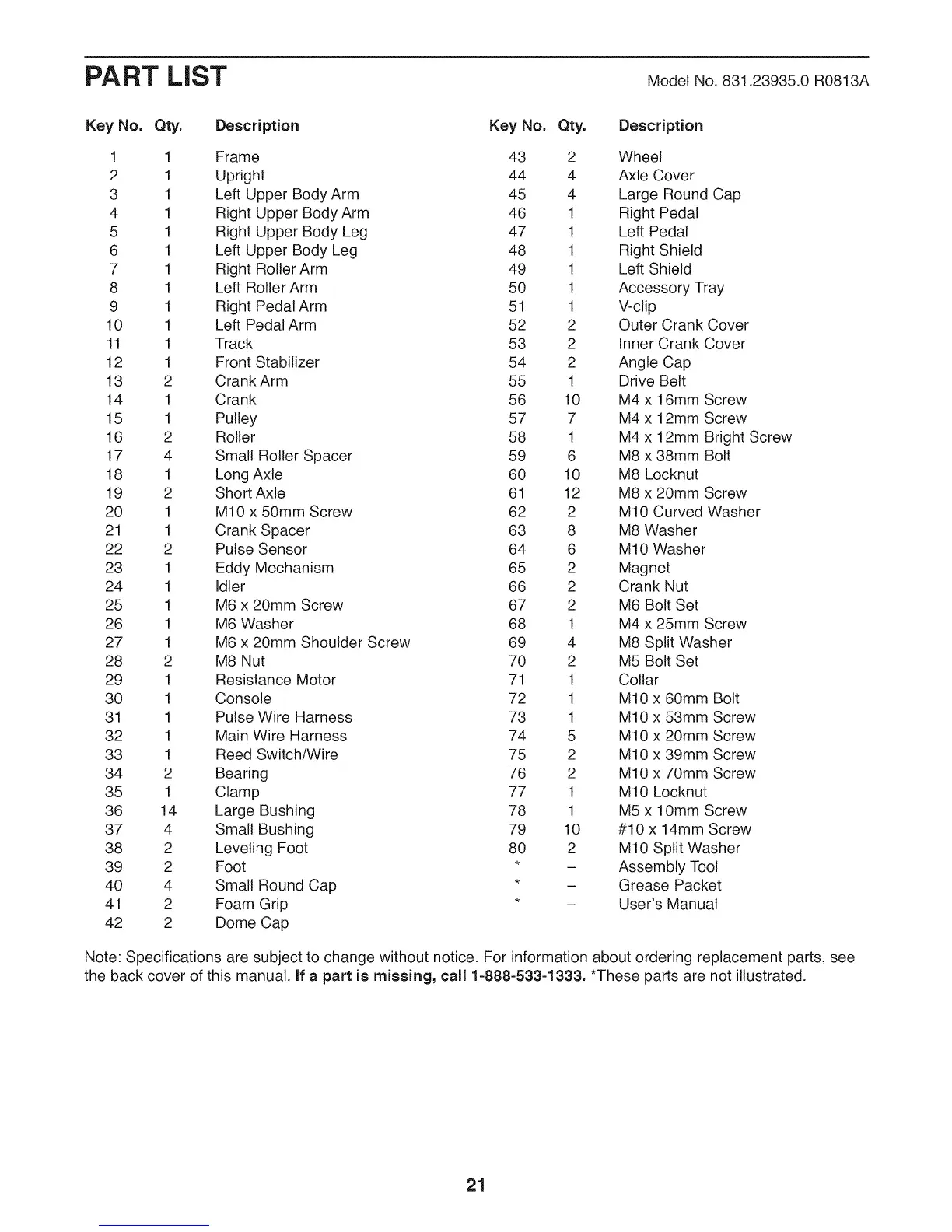

PART LIST Model No. 831.23935.0 R0813A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 43 2 Wheel
2 1 Upright 44 4 Axle Cover
3 1 Left Upper Body Arm 45 4 Large Round Cap
4 1 Right Upper Body Arm 46 1 Right Pedal
5 1 Right Upper Body Leg 47 1 Left Pedal
6 1 Left Upper Body Leg 48 1 Right Shield
7 1 Right Roller Arm 49 1 Left Shield
8 1 Left Roller Arm 50 1 Accessory Tray
9 1 Right Pedal Arm 51 1 V-clip
10 1 Left Pedal Arm 52 2 Outer Crank Cover
11 1 Track 53 2 inner Crank Cover
12 1 Front Stabilizer 54 2 Angle Cap
13 2 Crank Arm 55 1 Drive Belt
14 1 Crank 56 10 M4 x 16mm Screw
15 1 Pulley 57 7 M4 x 12mm Screw
16 2 Roller 58 1 M4 x 12mm Bright Screw
17 4 Small Roller Spacer 59 6 M8 x 38mm Bolt
18 1 Long Axle 60 10 M8 Locknut
19 2 Short Axle 61 12 M8 x 20mm Screw
20 1 M10 x 50mm Screw 62 2 M10 Curved Washer
21 1 Crank Spacer 63 8 M8 Washer
22 2 Pulse Sensor 64 6 M10 Washer
23 1 Eddy Mechanism 65 2 Magnet
24 1 idler 66 2 Crank Nut
25 1 M6 x 20mm Screw 67 2 M6 Bolt Set
26 1 M6 Washer 68 1 M4 x 25mm Screw
27 1 M6 x 20mm Shoulder Screw 69 4 M8 Split Washer
28 2 M8 Nut 70 2 M5 Bolt Set
29 1 Resistance Motor 71 1 Collar
30 1 Console 72 1 M10 x 60mm Bolt
31 1 Pulse Wire Harness 73 1 M10 x 53mm Screw
32 1 Main Wire Harness 74 5 M10 x 20mm Screw
33 1 Reed Switch/Wire 75 2 M10 x 39mm Screw
34 2 Bearing 76 2 M10 x 70mm Screw
35 1 Clamp 77 1 M10 Locknut
36 14 Large Bushing 78 1 M5 x 10mm Screw
37 4 Small Bushing 79 10 #10 x 14mm Screw
38 2 Leveling Foot 80 2 M10 Split Washer
39 2 Foot * - Assembly Tool
40 4 Small Round Cap * - Grease Packet
41 2 Foam Grip * - User's Manual
42 2 Dome Cap
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual, if a part is missing, call 1-888-533-1333. *These parts are not illustrated.
