Pro-Form CADENCE LE User Manual

9
5

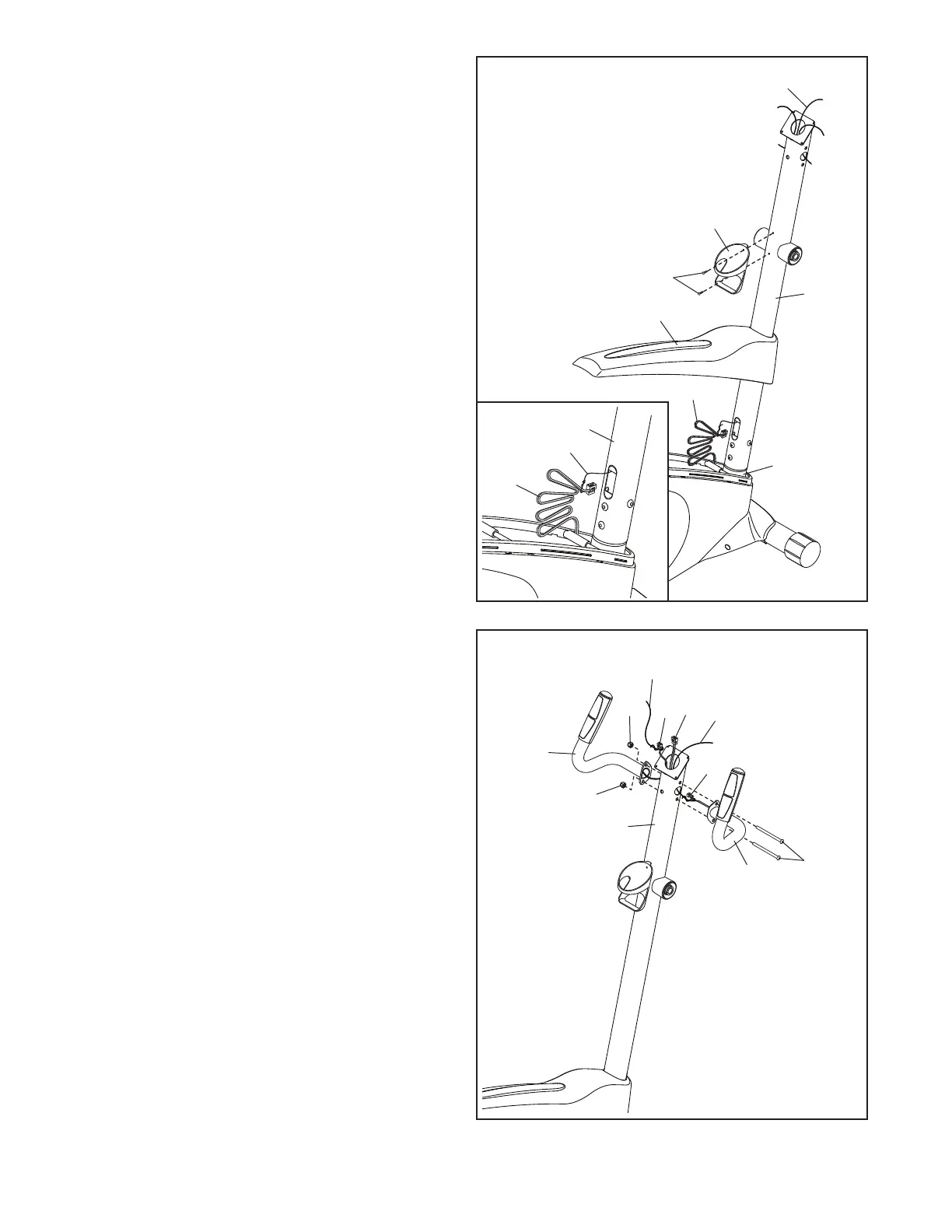

5. See the inset drawing. Locate the wire tie (C)
in the lower end of the Upright (2). Tie the wire
tie to the Wire Harness (73). Next, pull the upper
end of the wire tie until the Wire Harness is
routed through the Upright.
Tip: To prevent the Wire Harness (73) from
falling into the Upright (2), secure the Wire
Harness with the wire tie (C).
Next, slide the Top Shield (41) downward to the
Frame (1); do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Have a second person hold the Left and Right
Handlebars (85, 86) near the Upright (2). Next,
locate the remaining two wire ties (B) inside the
Upright. Tie the lower ends of the wire ties to the
Pulse Wires (84). Then, pull the upper ends of
the wire ties upward out of the top of the Upright.
Tip: While inserting the M8 x 77mm Bolts (79),
avoid damaging the Wire Harness (73) and
the Pulse Wires (84) inside the Upright (2).
Attach the Left and Right Handlebars (85, 86) to
the Upright (2) with two M8 x 77mm Bolts (79)
and two M8 Jam Nuts (38).
6
85
38
38
86
79
84
73
84
B
B
2
Avoid pinching the
Pulse Wires (84)
2
1
73
73
C
C
41
