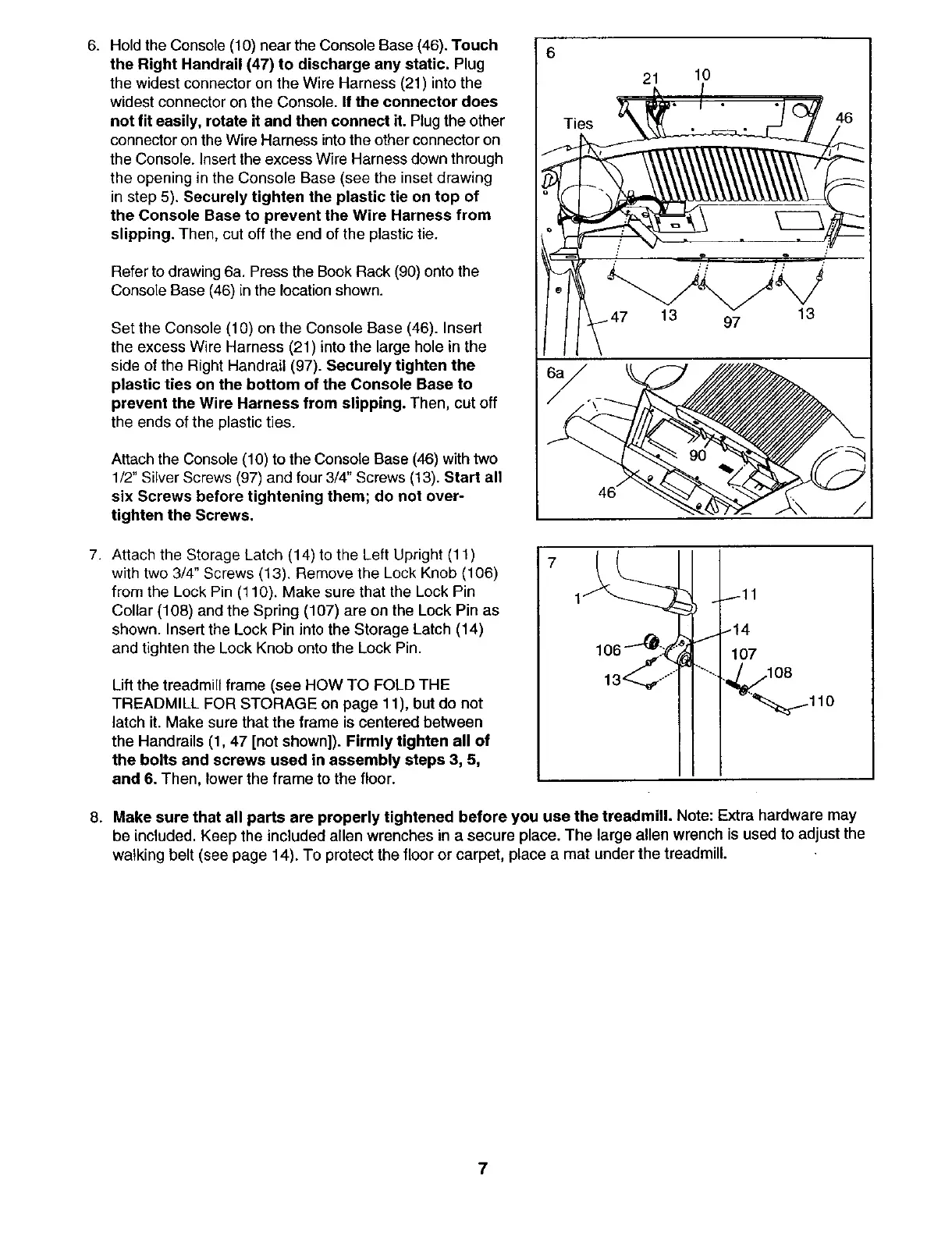

6. Hold the Console (10) near the Console Base (46). Touch
the Right Handrail (47) to discharge any static. Plug
the widest connectoron the Wire Harness (21) into the
widest connector on the Console. If the connector does
not fit easily, rotate it and then connect it. Plug the other
connectoron the Wire Harness intothe otherconnectoron
the Console. Insert the excess Wire Harness down through
the opening in the Console Base (see the inset drawing
in step 5). Securely tighten the plastic tie on top of
the Console Base to prevent the Wire Harness from
slipping. Then, cut off the end of the plastic tie.
Refer to drawing 6a, Press the Book Rack (90) onto the
Console Base (46) in the location shown.
Set the Console (10) on the Console Base (46). Insert
the excess Wire Harness (21) into the large hole in the
side of the Right Handrail (97). Securely tighten the
plastic ties on the bottom of the Console Base to
prevent the Wire Harness from slipping. Then, cut off
the ends of the plastic ties.
Attach the Console (10) to the Console Base (46) with two
1/2" Silver Screws (97) and four 3/4" Screws (13). Start all
six Screws before tightening them; de not over-
tighten the Screws.
6
Ties
21
,47 13
10
7. Attach the Storage Latch (14) to the Left Upright (11)
with two 3/4" Screws (13). Remove the Lock Knob (106)
from the Lock Pin (110). Make sure that the Lock Pin
Collar (108) and the Spring (107) are on the Lock Pin as
shown. Insert the Lock Pin into the Storage Latch (14)
and tighten the Lock Knob onto the Lock Pin.
Lift the treadmill frame (see HOW TO FOLD THE
TREADMILL FOR STORAGE on page 11), but do not
latch it. Make sure that the frame is centered between
the Handrails (1,47 [not shown]). Firmly tighten all of
the bolts and screws used in assembly steps 3, 5,
and 6. Then, lower the frame to the floor.
7
-14
107
8. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 14). To protect the floor or carpet, place a mat under the treadmill.
7
