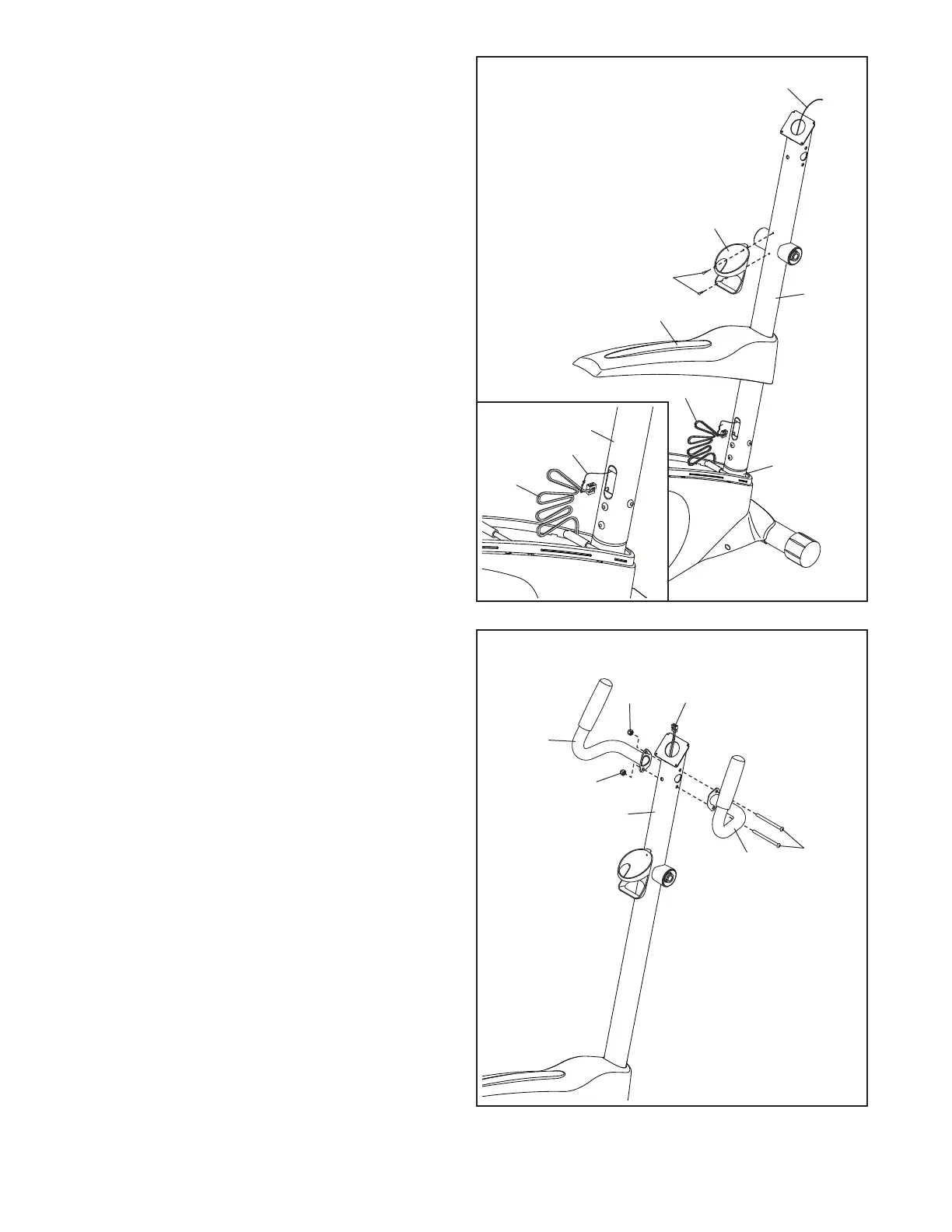

5. See the inset drawing. Locate the wire tie (B) in
the lower end of the Upright (2). Tie the wire tie
to the Main Wire (73). Next, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
Tip: To prevent the Main Wire (73) from fall-
ing into the Upright (2), secure the Main Wire
with the wire tie (B).
Next, slide the Top Shield (41) downward to the
Frame (1); do not press the Top Shield into
place yet.
Then, attach the Water Bottle Holder (29) to the
Upright (2) with two M4 x 16mm Screws (52).
2
29
52
6. Identify the Left and Right Handlebars (85, 86).
Tip: While inserting the M8 x 77mm Bolts (79),
avoid damaging the Main Wire (73) inside the
Upright (2).
Attach the Left and Right Handlebars (85, 86) to
the Upright (2) with two M8 x 77mm Bolts (79)
and two M8 Jam Nuts (38).
6
85
38
38
86
79
73
2
2
1
73
73
C
B
41
