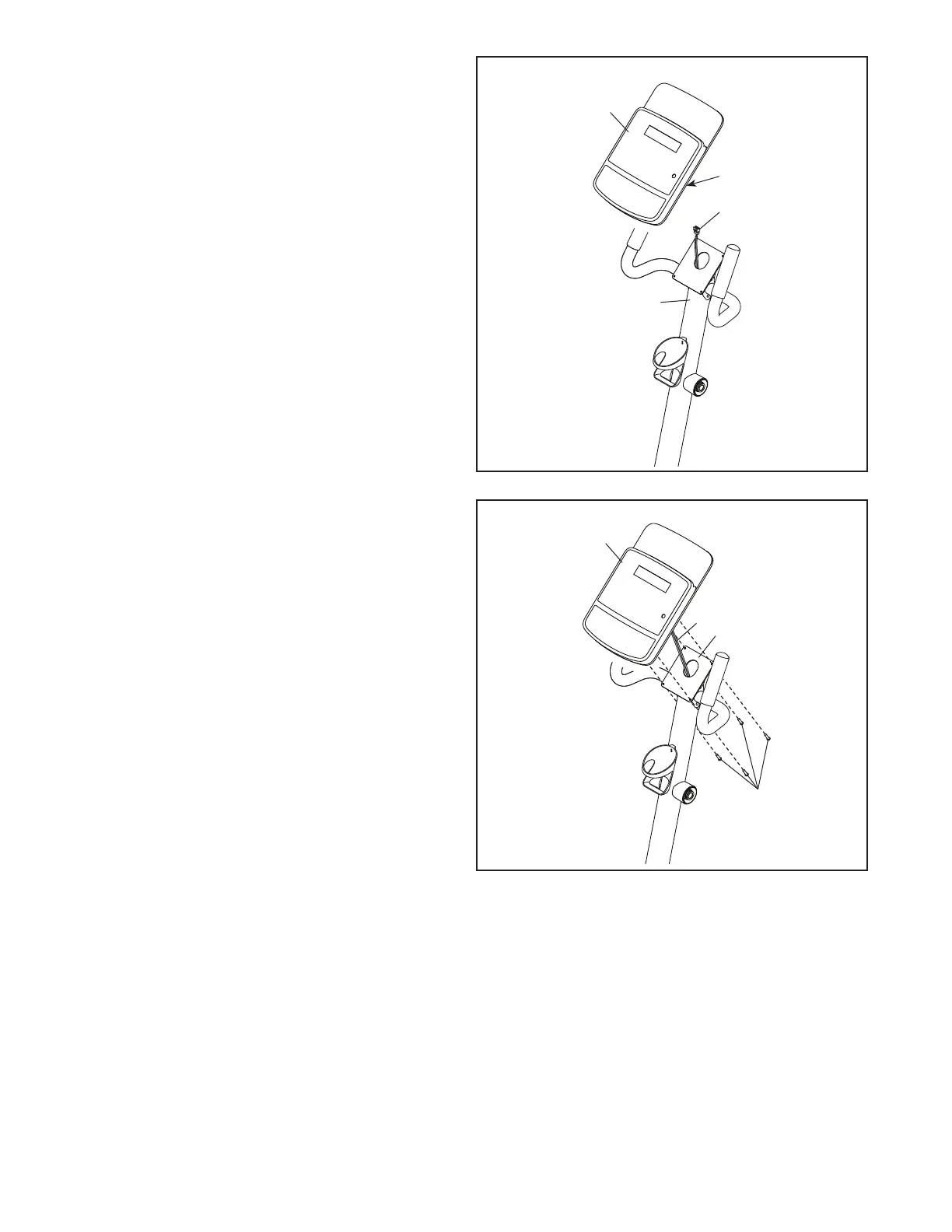

7. While a second person holds the Console (23)
near the Upright (2), plug the Main Wire (73) into
the receptacle (C) on the Console. Tip: The wire
connector should slide in easily and snap
into place with an audible click. If it does not,
turn the connector and try again.
7
2
23
C
73
8
8. Insert the excess wire into the Upright (2).
Tip: Avoid pinching the Main Wire (73). Attach
the Console (23) to the Upright (2) with four
M4 x 16mm Screws (52); start all the Screws,
and then tighten them.
23
Avoid pinching
the Main Wire (73)
52
2
73
