10
5
104
1
8

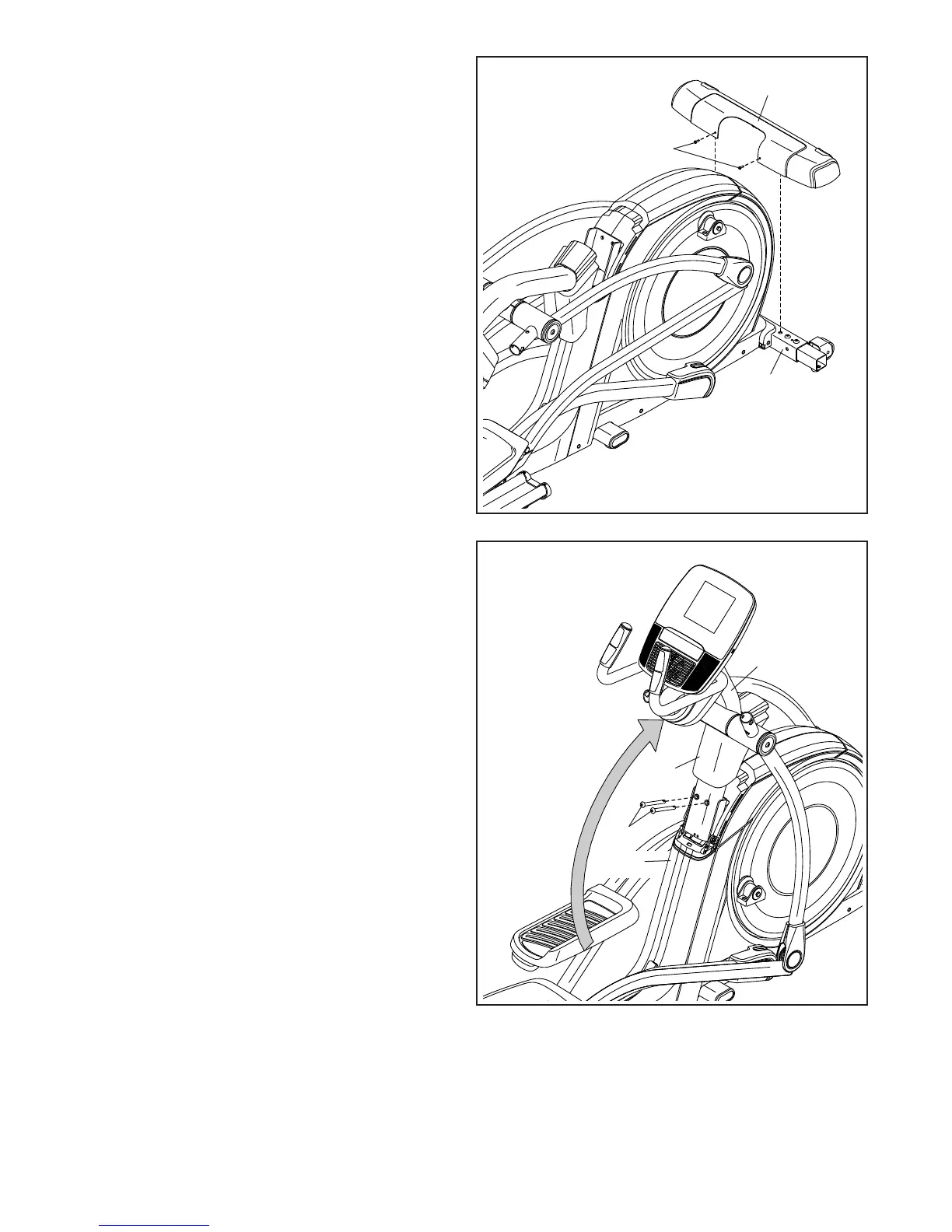

5. Orient the Front Stabilizer Cover (8) as shown,
and route the Power Cord (not shown) over
the top of the Front Stabilizer Cover. Then,
press the Front Stabilizer Cover onto the
Frame (1).
Attach the Front Stabilizer Cover (8) with two
M4 x 16mm Screws (104).
Then, remove the packing materials from under
the Frame (1).
6
6. Raise the Upright (4) to the vertical position.
Secure the Upright with two M10 x 75mm
Screws (142).
Then, slide the Shield Cover (56) downward onto
the Rear Shield (75).
142
56
4
75
To Next Page
