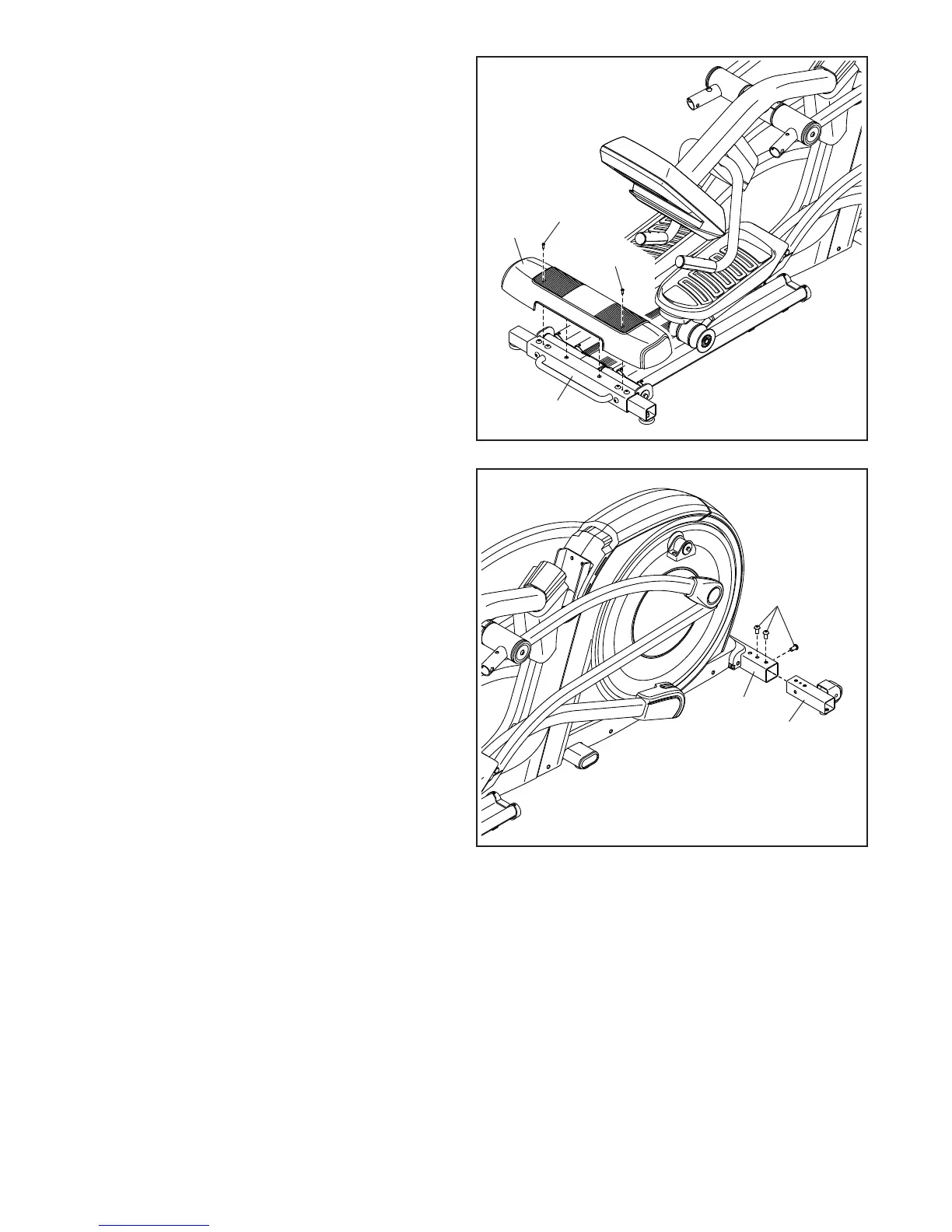

3. Orient the Rear Stabilizer Cover (2) as shown,
and press it onto the Frame (1).
Attach the Rear Stabilizer Cover (2) with two
M4 x 16mm Screws (104).
3
104
104
1
2
4
4. With the help of a second person, place some of
the packing materials (not shown) under the front
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step. Leave the packing materi-
als in place until you complete step 5.
Identify the Right Front Stabilizer (6).
Attach the Right Front Stabilizer (6) to the Frame
(1) with three M10 x 20mm Screws (144); start
all of the Screws, and then tighten them.
Attach the Left Front Stabilizer (not shown) in
the same way.
144
6
1
To Next Page
