11

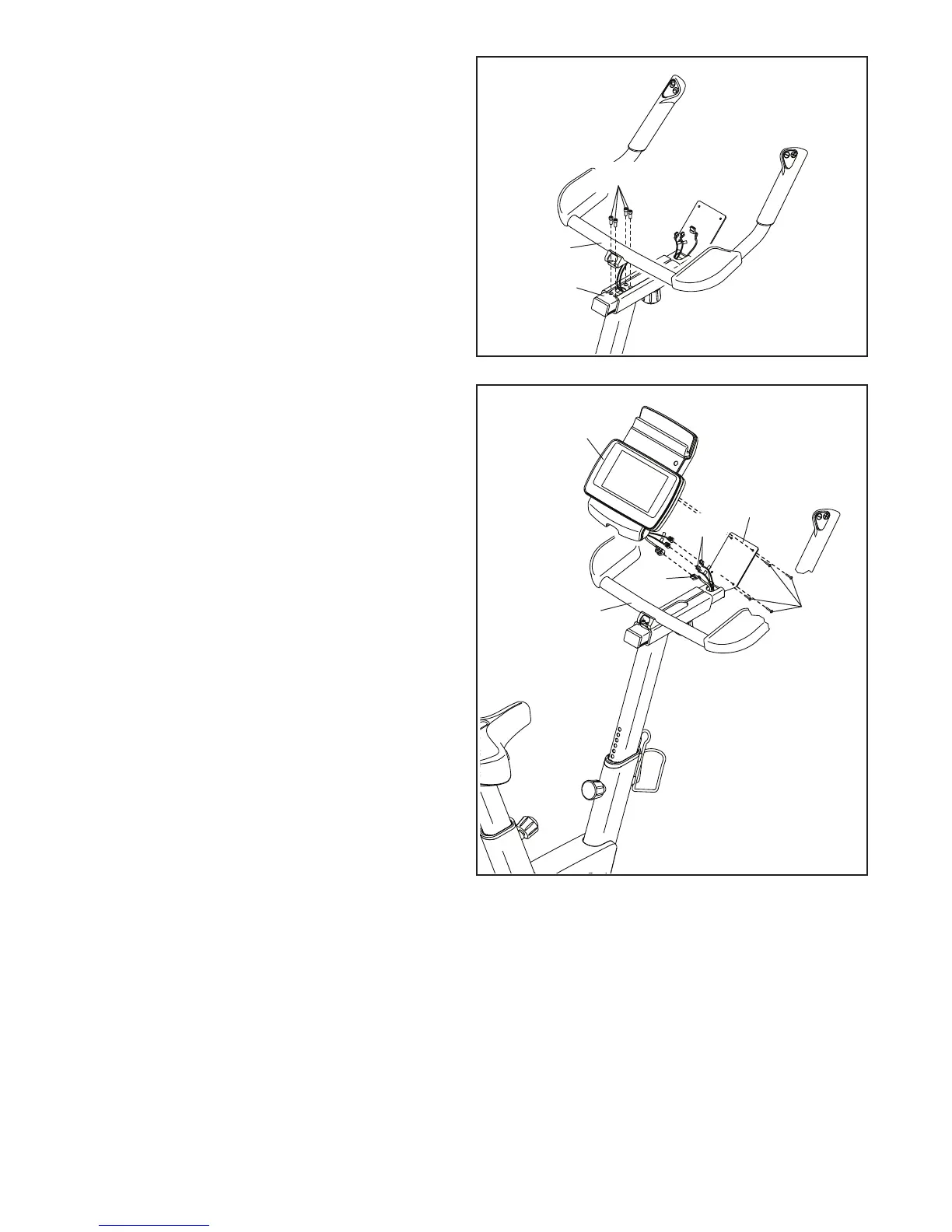

10. Tip: Avoid pinching the wires during this
step.
Attach the Handlebar (7) to the Handlebar
Carriage (105) with four M6 x 16mm Screws
(103); start all the Screws, and then tighten
them.
10
105
Avoid pinching
the wires
7
103
11
9
11. Tip: Avoid pinching the wires during this
step.
Have a second person hold the Console (9) near
the Handlebar Carriage (105).
Connect the console wires to the Main Wire (68)
and to the two wires from the Handlebar (7);
make sure to connect the console wire that
has an “L” tag to the wire that has an “L” tag,
and connect the console wire that has an “R”
tag to the wire that has an “R” tag. Insert the
excess wire into the Handlebar Carriage (105).
Then, attach the Console (9) to the Handlebar
Carriage (105) with four M4 x 12mm Screws
(94); start all the Screws, and then tighten
them.
Avoid pinching
the wires
105
68
94
7
Wires
To Next Page
