20

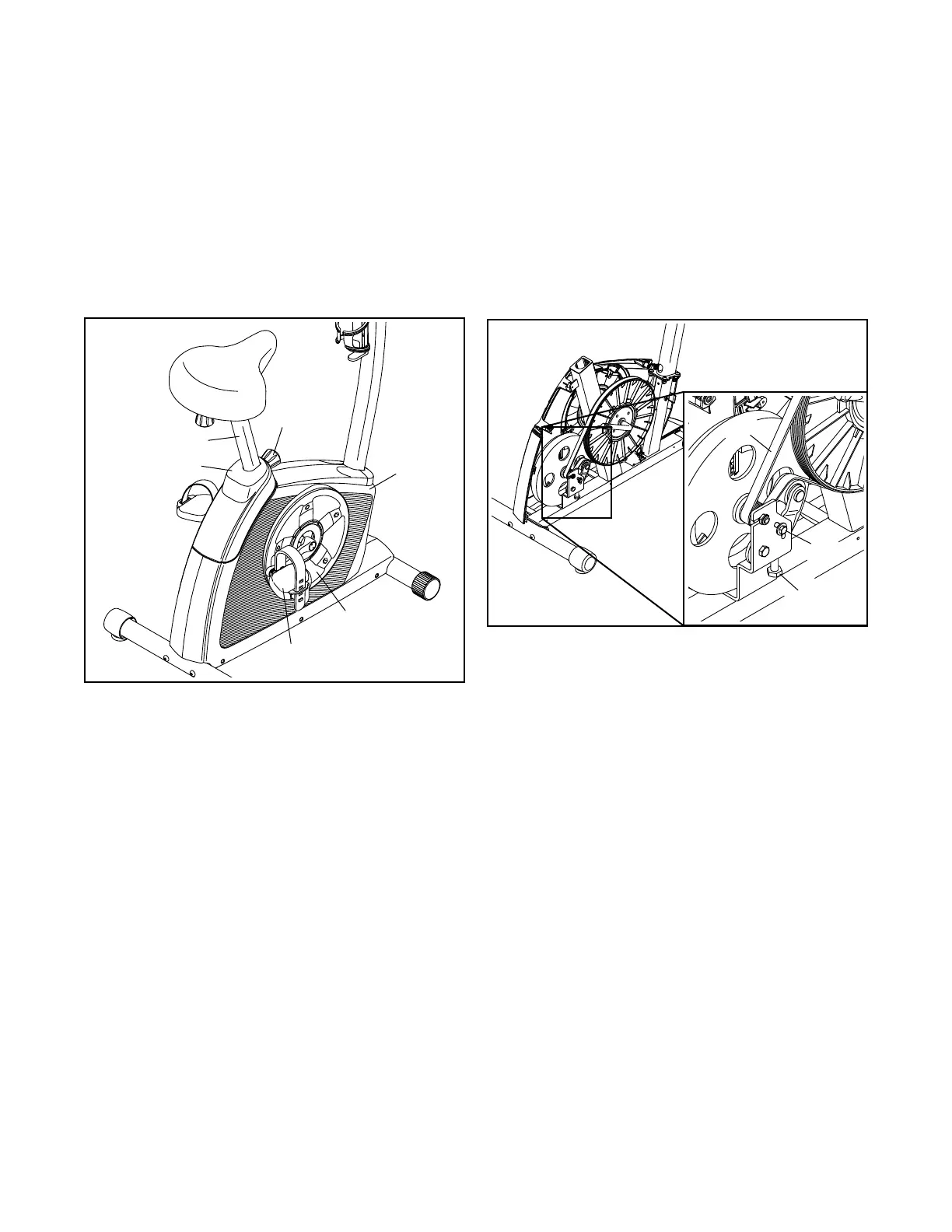

HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted.
To adjust the drive belt, first unplug the power
adapter. Then, remove the parts described below.
To remove the Seat Post (10), loosen the Post Knob
(18) a few turns, pull the Post Knob outward, and
remove the Seat Post. Then, using an adjustable
wrench, remove the Post Knob.
Using a standard screwdriver, release the tabs along
the bottom edge of the Post Cover (16), and remove
the Post Cover.
Next, using an adjustable wrench, turn the Right Pedal
(29) counterclockwise and remove it. Then, using a
standard screwdriver, release the tabs around the edge
of the right Access Disc (24), and remove the Access
Disc from the Right Shield (22).
See assembly step 5 on page 8. Remove the
two M4 x 16mm Screws (52) from the Rear Upright
Cover (19).
See the EXPLODED DRAWING on page 23.
Identify the Left and Right Shields (21, 22). Remove
all of the screws from the Left and Right Shields; there
are two sizes of screws in the Shields—note which
size of screw you remove from each hole. Then,
gently remove the Right Shield.
Loosen the M6 x 20mm Hex Screw (47). Then, tighten
the Idler Screw (45) until the Drive Belt (15) is tight.
When the Drive Belt (15) is tight, tighten the
M6 x 20mm Hex Screw (47).
Then, reattach the parts that you removed and plug in
the power adapter.
18
10
29
22
24
16
15
45
47
