5

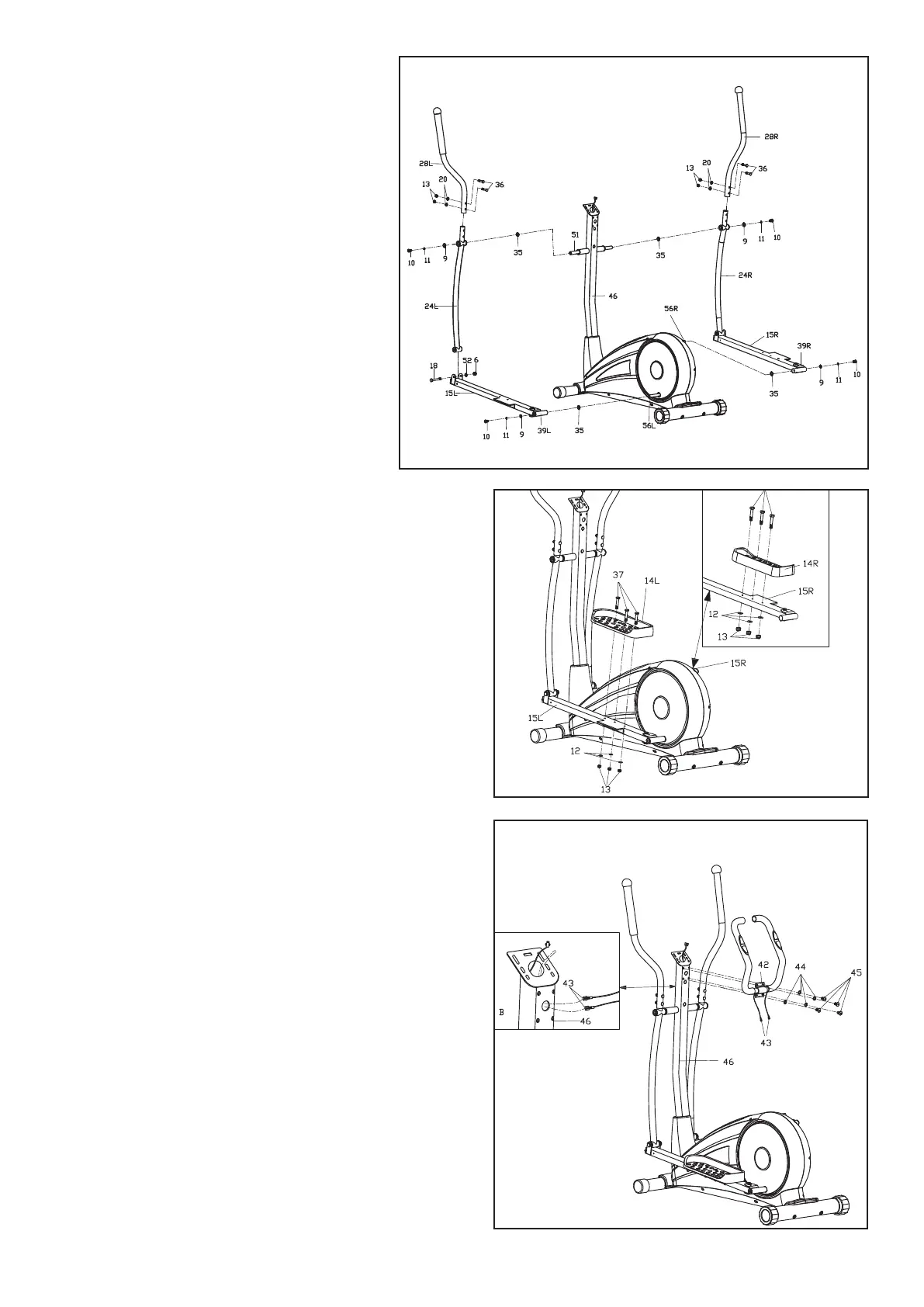

STEP 3
1. Attach the L/R Swing tube (24L/R)
to the shaft (51) on Handlebar post (46)
with Inner hexagon bolt (10),Spring washer
(11) D-shape washer (9) and Wave wash-
ers (35), But don’tighten them rst.
2. Tighten the L/R pedal tube joint (39)
to the L/R crank (56L/R) with Inner hexa-
gon bolt (10), Spring washer (11), D-shape
washer (9) and Wave washer (35), but don’t
tighten them rst.
3. Connect the Swing tube (24L/R) and
Pedal support (15L/R) with Bolt (18),Flat
washer (52), and Nylon nut (6).Then tight-
en the Inner hexagon bolt (10) and Bolt (18)
4. Attach the L/R handlebar (28L/R)
on the L/R Swing tube (24L/R) with Car-
riage bolt (36), Arc washer (20) and Nylon
nut (13).
STEP 4
Tighten the L/R pedal (14L/R) to the L/R
pedal support (15L/R) with Hexagon
boltM8×45 (37), at washer D8×Φ16×1.5
(12), nylon nut M8 (13).
STEP 5
1. Pass the pulse wire(43) out of the
hole of handlebar post and then out of the
hole of computer bracket.As the photo-
graph show.
2. Tighten the xed handlebar(42) to
the handlebar post(46) with inner hexagon
boltM8X16 (45) and spring washerd8 (44).
To Next Page
