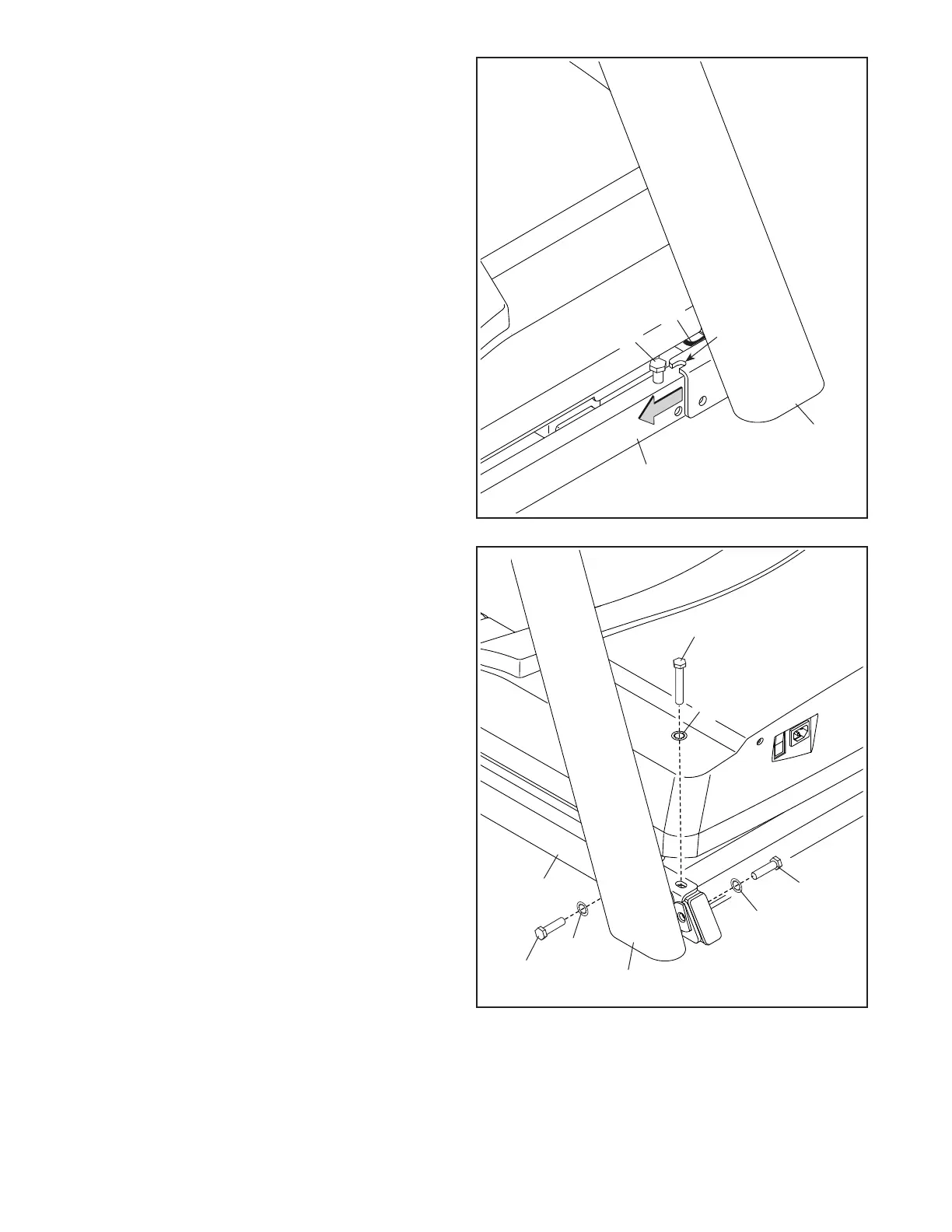

5. Attach the Right Upright (79) to the Base (88)
with a 3/8" x 2 3/8" Screw (2), a 3/8" x 1 1/4"
Screw (3), a 3/8" x 1 1/2" Screw (4), and three
3/8" Star Washers (6) as shown; do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) as
instructed in steps 4 and 5. Note: There are no
wires on the left side.
5
3
4
88
6
6
79
2
6
4. Set the Right Upright (79) on the Base (88) as
shown. Make sure not to pinch the Upright
Wire (80). Then, slide the Right Upright so
that the 3/8" x 2 3/8" Screw (2) in the Base is
inserted into the slot (E) in the Right Upright. Do
not tighten the Screw yet.
4
88
79
E
2
80
