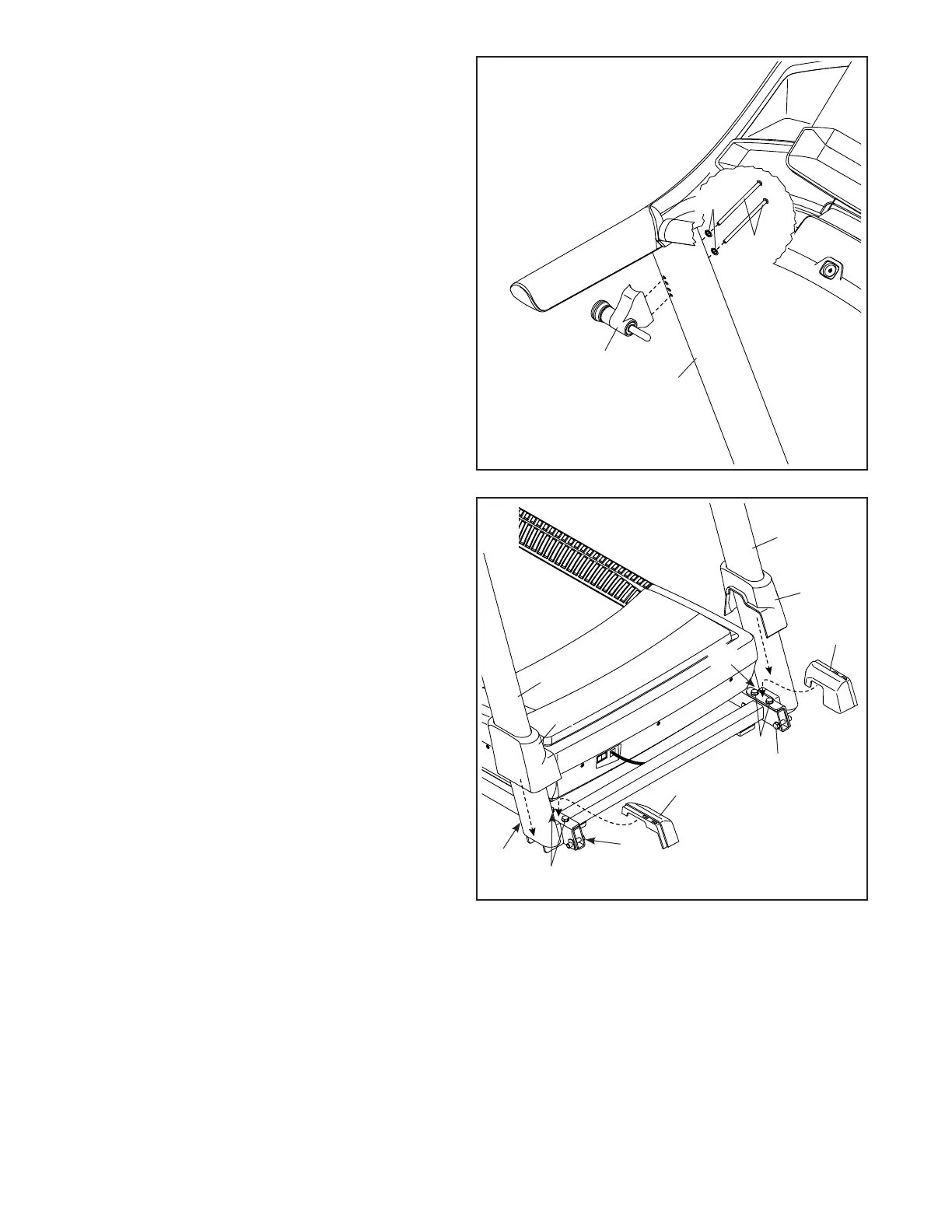

12. Orient the Latch Assembly (84) as shown. Attach
the Latch Assembly to the Left Upright (85) with
two 1/4" x 4 1/2" Screws (8) and two 1/4" Star
Washers (10); start both Screws, and then
tighten them.
13. Firmly tighten the four 3/8" x 2 3/8" Screws
(3), the two 3/8" x 1 1/4" Screws (1), and the
two 3/8" x 1 3/4" Screws (2).
Next, set the Left Inner Base Cover (95) onto the
lower end of the Left Upright (85). Then, slide
the Left Base Cover (93) downward and press it
onto the Left Inner Base Cover.
Next, set the Right Inner Base Cover (94) onto
the lower end of the Right Upright (86). Then,
slide the Right Base Cover (92) downward and
press it onto the Right Inner Base Cover.
95
92
93
2
85
3
3
1
2
94
13
86
1
14. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see page 29). Note: Extra hardware may be
included.
