29
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. Before you adjust
the reed switch, unplug the power adapter.

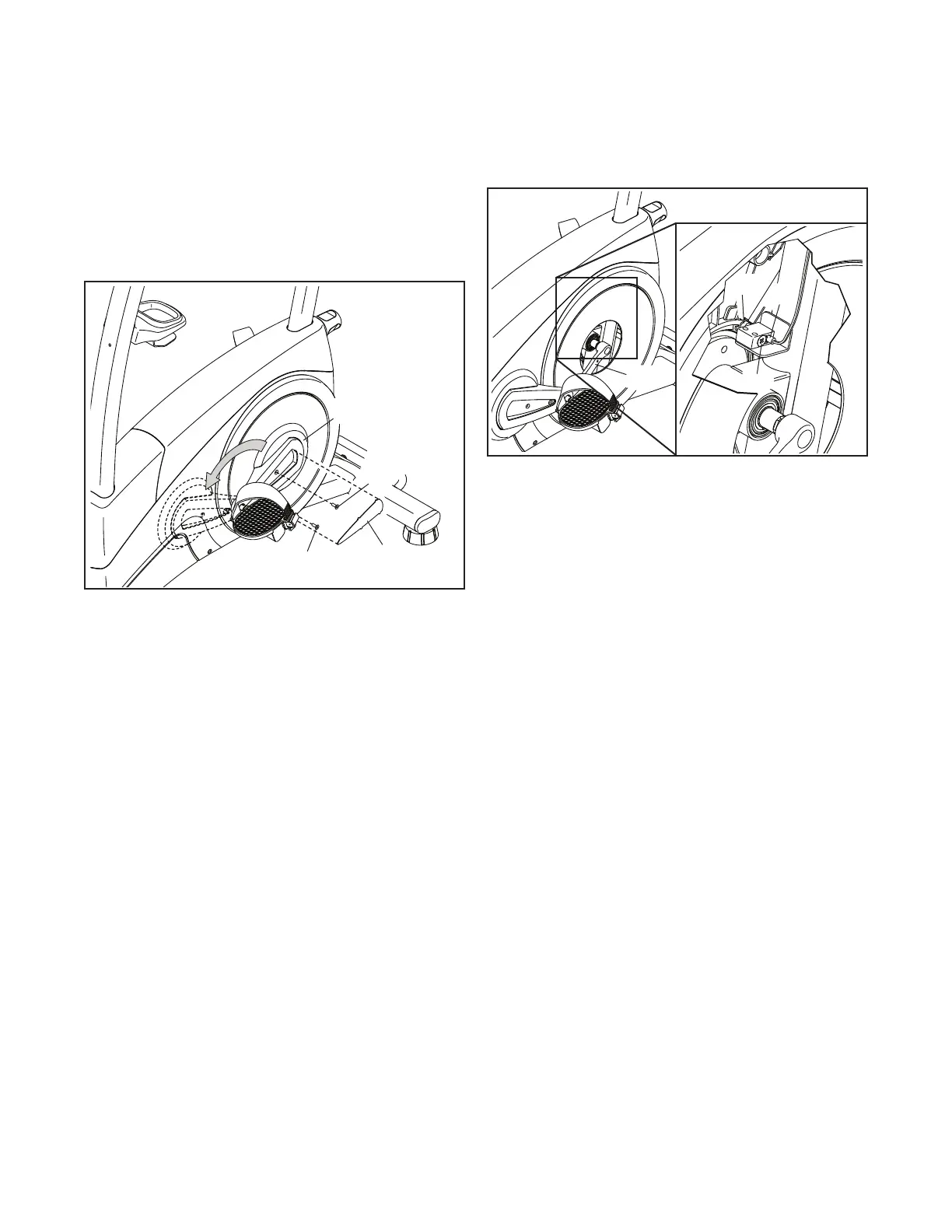

Using a small standard screwdriver, carefully pry the
left Cover Insert (35) off the left Crank Arm Cover (33).
Next, remove the M5 x 12mm Screw (85) and the
M5 x 21mm Screw (86). Then, rotate the left Crank
Arm Cover out of the way.
Next, locate the Reed Switch (57). Rotate the Left
Crank Arm (20) until a Magnet (55) is aligned with the
Reed Switch. Then, loosen the M5 x 16mm Flat Head
Screw (60), slide the Reed Switch slightly toward or
away from the Magnet, and then retighten the Flat
Head Screw.
Plug in the power adapter and rotate the Left Crank
Arm (20) for a moment. Repeat these actions until the
console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the parts that you removed.
85
35
86
33
57
60
55
20
To Next Page
