60 Gallon Single Stage Stationary Air Compressor
5Visit www.princessauto.com for more information
8475006
V 1.6
7. Stationary tanks should be level to distribute oil properly and prevent damage to the tank
and compressor. The tank’s feet should be shimmed so the pump base is level to within 1/8
in. All feet must be supported prior to attaching to the floor.
GENERAL SAFETY PRECAUTIONS
ELECTRICAL SAFETY
WARNING! All wiring should be performed by a qualified electrician.
1. Disconnect device from power source before cleaning, servicing, changing parts/accessories
or when not in use.
2. Protect yourself against electric shocks when working on electrical equipment. Avoid body
contact with grounded surfaces. There is an increased chance of electrical shock if your body
is grounded.
3. Do not alter any parts of the device or accessories. All parts and accessories are designed
with built-in safety features that may be compromised if altered.
4. Make certain that power source conforms to requirements of your equipment.
5. To reduce the risk of electric shock, do not expose to rain. Store the compressorindoors.
6. When wiring an electrically driven device, follow all electrical and safety codes, as well as the
most recent Canadian Electrical Code (CE) and Canadian Centre for Occupational Health and
Safety (CCOHS).
USE AND CARE OF DEVICE
Use the correct device for the job. This device was designed for a specific function. Do not modify
or alter this device or use it for an unintended purpose.
PARTS IDENTIFICATION
WARNING! Do not operate the device if any part is missing. Replace the missing part before
operating. Failure to do so could result in a malfunction and personal injury.
Remove the parts and accessories from the packaging and inspect for damage. Make sure that all
items in the parts list are included.
Contents:
• Air Compressor
BASIC AIR COMPRESSOR
COMPONENTS

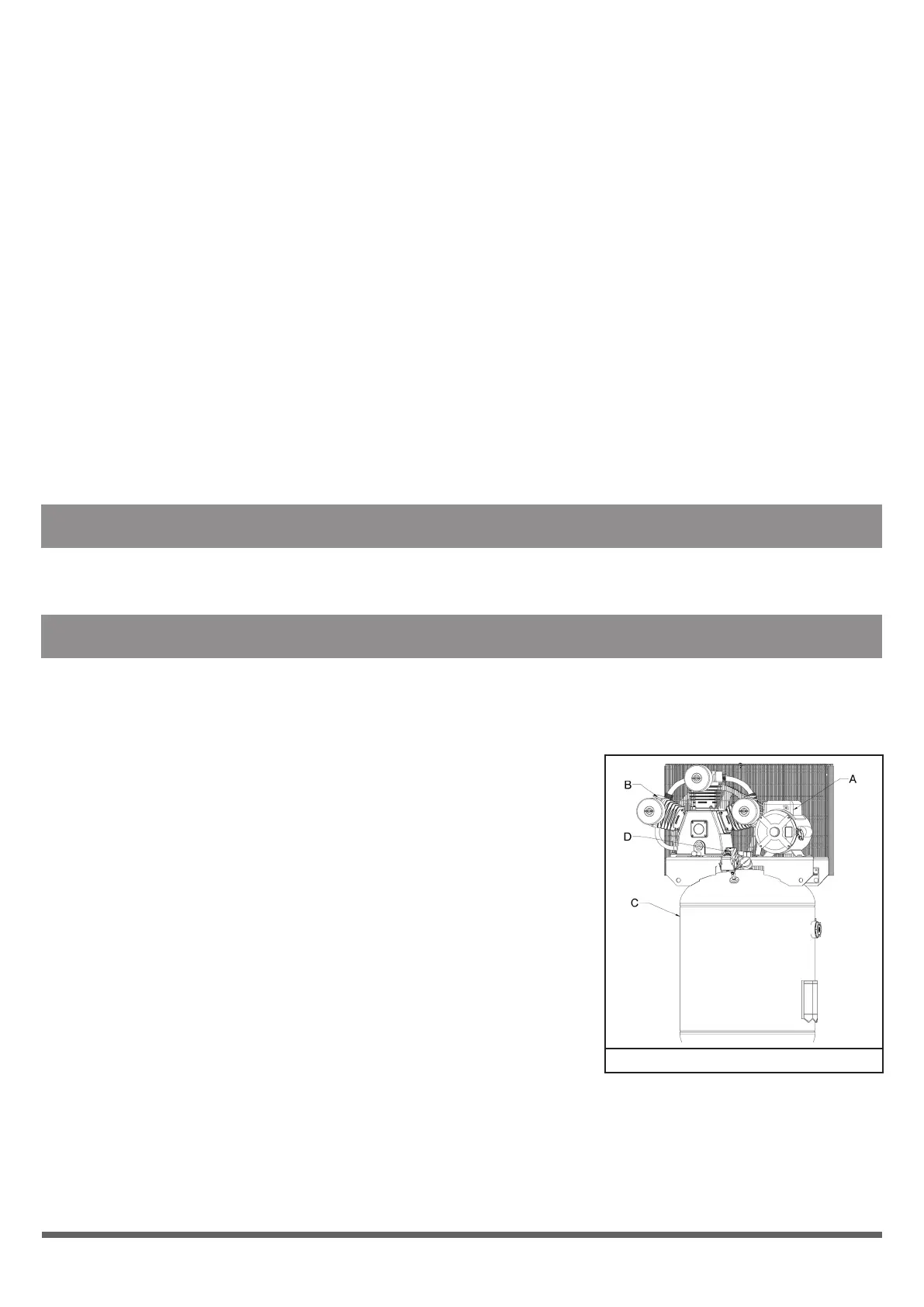

The basic components of the air compressor are the electric
motor, thermal overload protection system (TOPS
®
), pump,
pressure switch and tank.
The electric motor (A) powers the pump.
TOPS
®
senses both temperature and current, providing better
motor overload protection than a magnetic starter, which senses
only current. TOPS
®
will automatically shutdown the compressor
when it senses an overload condition. Allow 10-15 minutes for the
unit to cool, then press the reset button on the motor to restart
the compressor.
The pump (B) compresses the air and discharges it into
the tank. The tank (C) stores the compressed air.
Fig.1
