Pro's Kit MT-2207 - Name of part; CALIBRATION

3
(0dB=1mW at
600Ω)
Via Test Leads
Continuity
Check
Beeper sounding
under 50 Ohm
Overload protected by
the voltage Suppressor
& Fuse (3sec.)
Power Source
Internal Battery:
AAA, 1.5V 2pcs,
Name of part

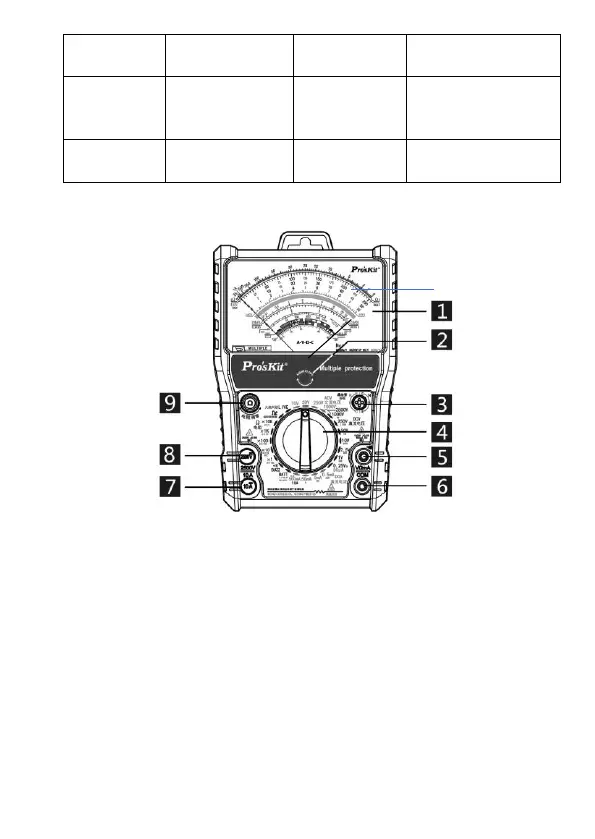

1.Scale panel 2.Point zero adjust 3. hFE socket 4.Range switch
5.VΩmA input socket 6.COM input socket 7.10A input socket
8.2500V input socket 9.Resistance zero adjust
CALIBRATION
Ohms Zero Adjustor located at the right side of the panel. Adjust the meter pointer
to the Zero mark on the right side of Ohm scale of the meter dial when the test
leads are touched together.
Mechanical Adjustor Screw: located right side below the center of the meter dial
to set pointer to Zero mark at the left side of the scale.
(-) Jack: Plug-in connector at the lower left on the panel for black, negative test
lead.
(+) Jack: Plug-in connector at the lower right on the panel for Red, positive test
lead.
