PRO SHOT L3 - Plumb and Layout Setups

9
Plumb And Layout Setups

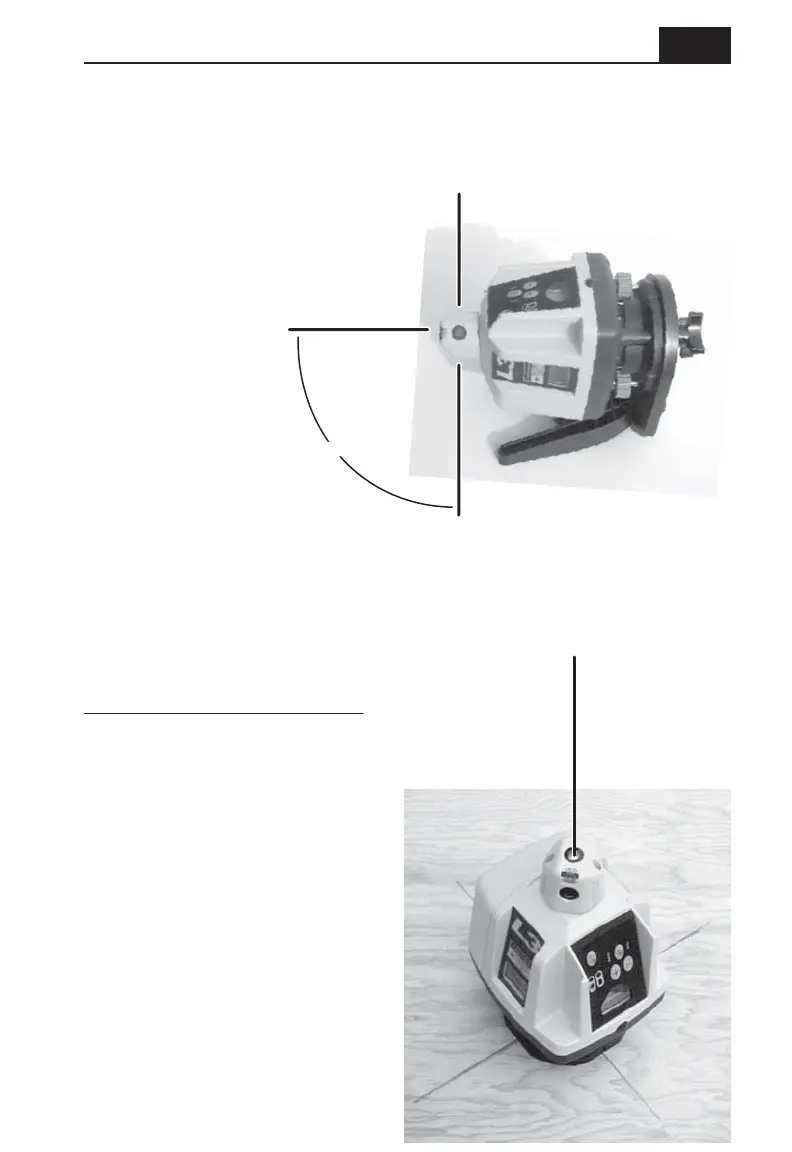

In vertical mode,
the L3 projects a
rotatable beam of
laser light that can
be used as a spot,
rotated, or scanned.
Simultaneously, a fixed
beam is projected at 90º
to the rotatable beam from
the top of the rotating head. The 90º beam provides a convenient way to
define right angle intersections for interior layout. See pg. 10 "vertical
and line layout setups" for complete instruction on aligning the vertical
plane of light.
90º
Fixed beam
Rotating beam
When the L3 is in vertical mode, it is completely manual in operation
and will not turn off if it is disturbed (just as when it is in horizontal
mode). Check the vertical vial and your benchmarks regularly to be sure
your work will be accurate. The
L3 is designed for vertical
alignment up to two stories high.
The base of the L3 has four
notches molded-in to quickly
allow the transferring of
points from floor to ceiling. By
simply drawing an intersection
with two lines, the base
notches act as guides to align
the L3 over the intersection.
Once over the point, center the
bubbles in the precision level
vials. The laser will now be
projecting a plumb spot
overhead from the top of the
rotating head.
