5. Don’t operate with worn or poorly con -
nected cables. Don’t operate weld gun with
loose cable connections. Inspect all cable s fre -
quently for insulation failures, exposed wires,
loose connections, and repair as needed.
6. Don’t overload welding cab les or continue
to operate with hot cables.
7. Don’t weld near flammable materials or liq -
uids, in or near atmospheres, or o n ducts carry -
ing explosive gases.
8. Don’t weld on containers which have held
combustible or flammable materials, or on ma -
terials which give off flammable or toxic va -
pors when heated, without proper cleaning,
purging, or inerting.
9. Be sure t o provide for proper ventilation
when welding in confined spaces.
10. Never look at the electric arc without wear -
ing protec tive eye shields.
11. Always use the proper protective clothing,
gloves, ect.
12. Never strike an arc when near a bystander
who is unaware of the dangers of ultraviolet
light on their eyes.
5.0 GENERAL DESCRIPTION
CD - 212 HEAVY DUTY PORTABLE
CD ST UD/PIN WELDER
The CD - 212 portable CD welder is a self co n-
tained heavy duty capacitor discharge power supply
capable of welding up to 1/4” flanged studs in mild
steel.
The CD - 212 utiliz es a solid state control board
for longer life and has been designed for easy mai n-
te nance and field service. This welder uses standard
110 volt AC line voltage.
T he system comes complete with power cord, weld
cables and gun. Just add the accessories required for
the stud size to be welded. This manual should pr o-
vide all the information required for you to be able to
set up, weld, and maintain the CD - 212 welding sy s-
tem.
6.0 THE CD WELDING PROCESS
Contact welding is the simplest and most
co m mon method of CD stud welding. Practically
foo l proof, it produces no reverse side marking in
most cases and is suitable for most commercial and
industrial applications.
First , the gun must be set -up with the proper
accessories for the length and diameter stud you are
going to weld. Refer to the CD Acc essories Guide
and CD Stud Welding Gun Section for information
on accessories and gun set -up.
Initial Contact During Weld
Forced Into Molten Pool After Weld
1 2
3 4
The stud is first placed in contact with the
base material (SEE FIGURE 1). Verify that the gun is
held perpendicular to the work . Pulling the trigger
di scharges the capacitors through the stud which v a-
porizes the tip. The proper tip design is critical. This
is what determines the length of time of the weld. An
arc is briefly sustained which melts the stud base su r-
face and the work surface directly underneath the
stud. The spring pressure in the gun then forces the
stud into the molten pool, completing the weld in a p-
proximately six milliseconds.

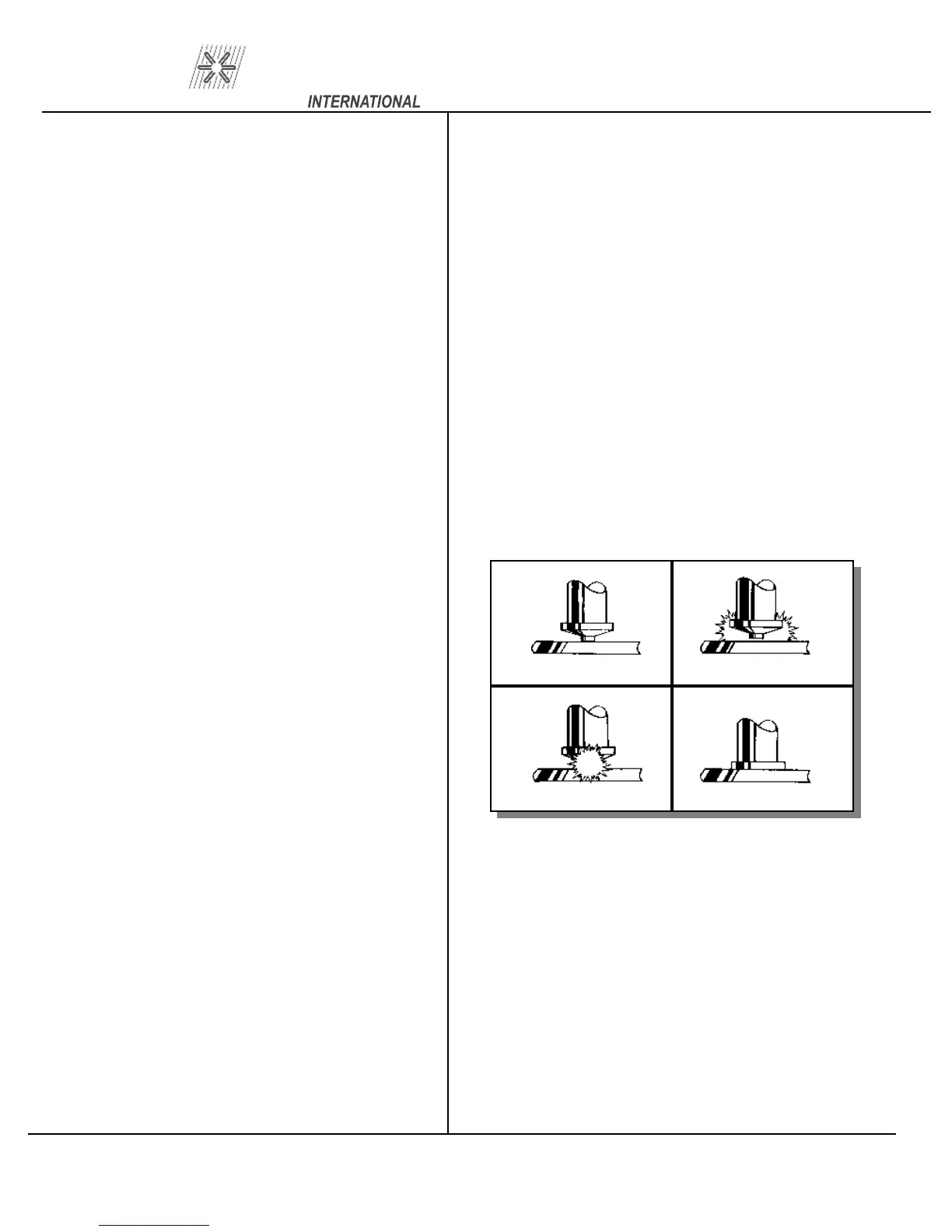

(FIGURE 1 CONTACT CD WELD)
